Camshaft Cover - Bottom

WARNING: This page is about a different variant/trim than selected.

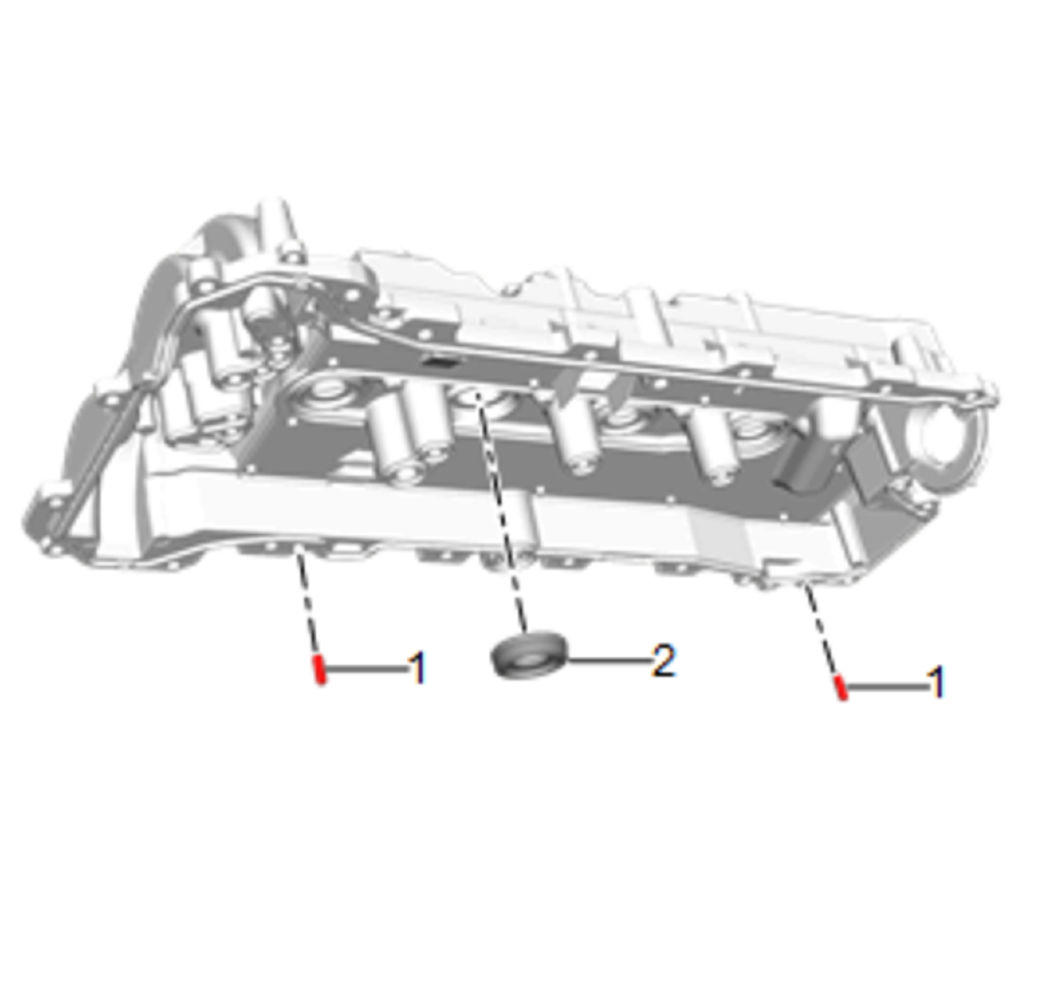

GM5166435Courtesy of GENERAL MOTORS COMPANY
Camshaft Cover - Bottom

Callout Component Name
Preliminary Procedure
Inspect each component, O-rings, and fasteners, and replace as necessary.
1 Camshaft Cover Locating Pin
2 Spark Plug Shield Seal
Special Tools
EN 34115  Sprocket Bearing Installer
For equivalent regional tools, refer to Special Tools .
