Rear Side Door Water Deflector Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Rear Side Door Trim Replacement Rear Side Door Armrest Pull Cup Bracket Replacement Rear Side Door Locking Rod Bellcrank Replacement

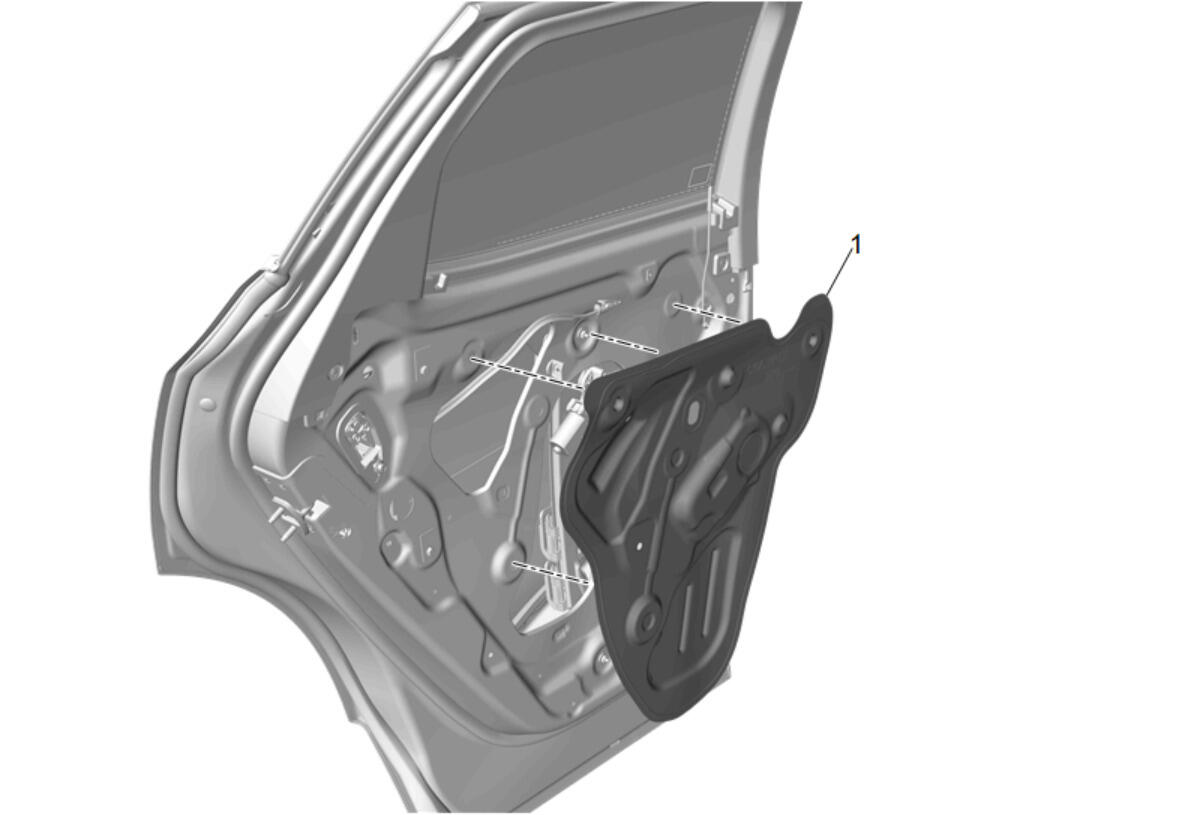

1	Rear Side Door Water Deflector Procedure Route rear side door inside handle cable through hole in deflector assembly while removing it from the door. NOTE: When reinstalling water deflector ensure integral locators are installed properly and that water deflector is secured and leakproof.

Callout

Component Name

Preliminary Procedures

Rear Side Door Water Deflector
Procedure
Route rear side door inside handle cable through hole in deflector assembly while removing it from the door.

NOTE:

When reinstalling water deflector ensure integral locators are installed properly and that water deflector is secured and leakproof.
