Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

Front Fender (1) - Remove - Front Fender Replacement
Apply masking tape to the edges of the door.

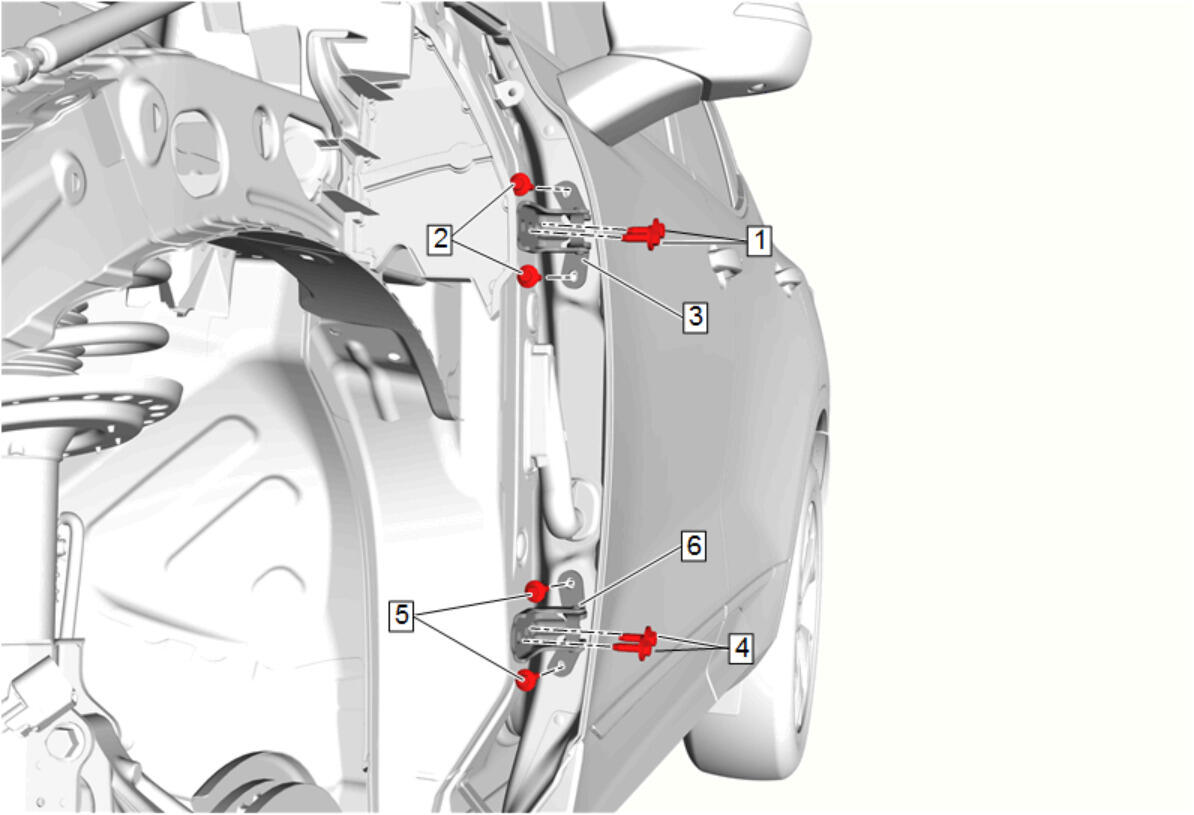

Fig 1: Identifying Front Side Door Upper Hinge And Lower Hinge Components
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Keep the door in the closed position and replace only one hinge at a time.

Mark the location of the upper hinge (3) before removing the bolts with a grease pencil.
Front Side Door Hinge Bolt - Body Side (1) - Remove [2x]
Front Side Door Hinge Bolt - Door Side (2) - Remove [2x]
Front Side Door Upper Hinge (3) - Remove
Mark the location of the lower hinge (6) before removing the bolts with a grease pencil.
Front Side Door Hinge Bolt - Body Side (4) - Remove [2x]
Front Side Door Hinge Bolt - Door Side (5) - Remove [2x]
Front Side Door Lower Hinge (6) - Remove
