Front Side Door Replacement

Courtesy of GENERAL MOTORS COMPANY

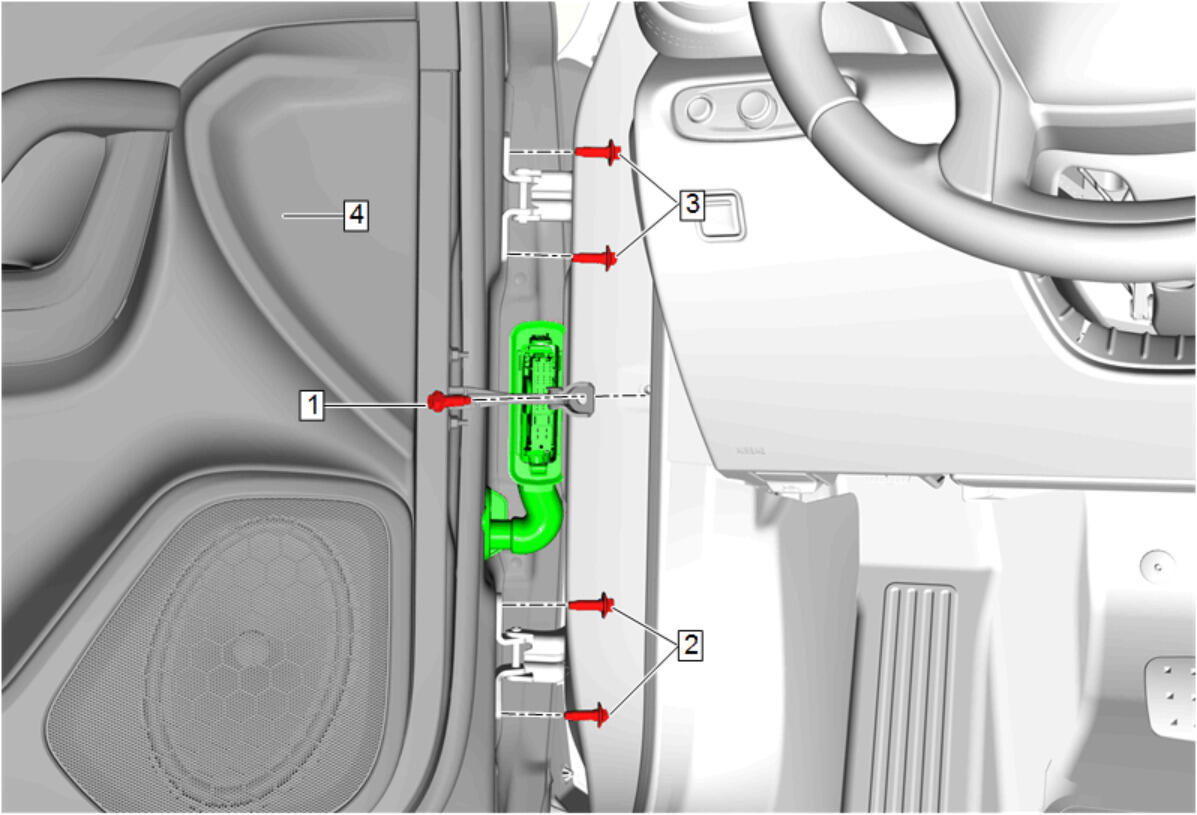

Callout	Component Name
Preliminary Procedures Mark location of the hinge using a grease pencil before removing the bolts. Disconnect the electrical connector.
1	Front Side Door Check Link Bolt CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Front Side Door Hinge Bolt - Door Side [2x] Procedure Support the door before removing the hinge bolt. Tighten 25 N.m (18 lb ft)
3	Front Side Door Hinge Bolt - Door Side [2x] Tighten 25 N.m (18 lb ft)
4	Front Side Door Procedure With the aid of an assistant, remove the door. Transfer components as necessary. Adjust the front side door, if needed. Front Side Door Adjustment
