Air Inlet Grille Panel Extension Replacement - Right Side
Air Inlet Grille Panel Extension Replacement - Right Side
Courtesy of GENERAL MOTORS COMPANY

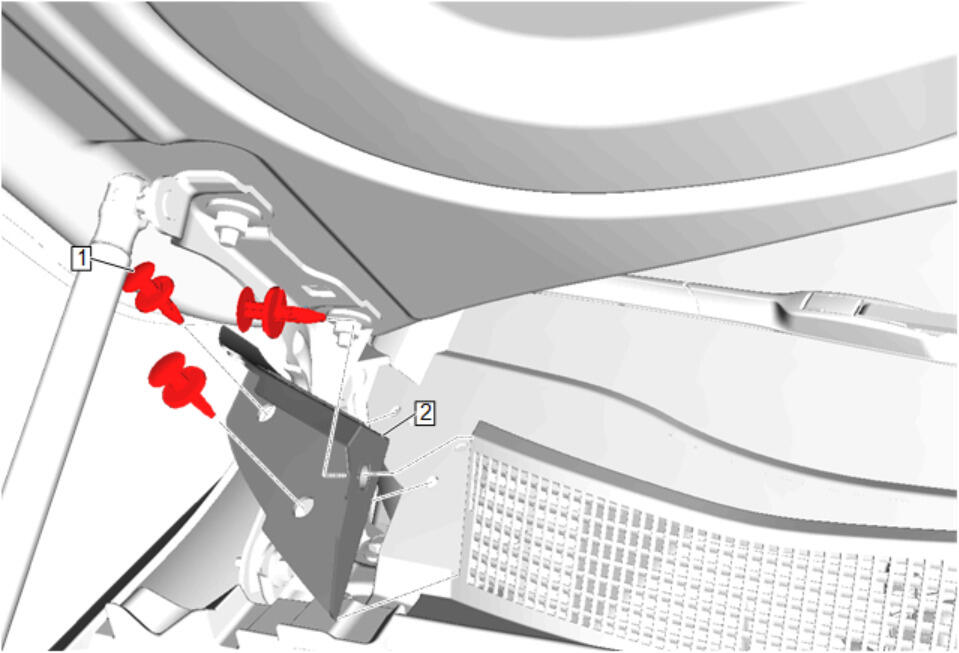

Callout
Component Name
Preliminary Procedure
Open the hood.
1
Air Inlet Grille Panel Retainer [3x]
2
Air Inlet Grille Panel Extension - Right Side
Procedure
Pull the air grille inlet panel extension away from the air grille inlet panel.
