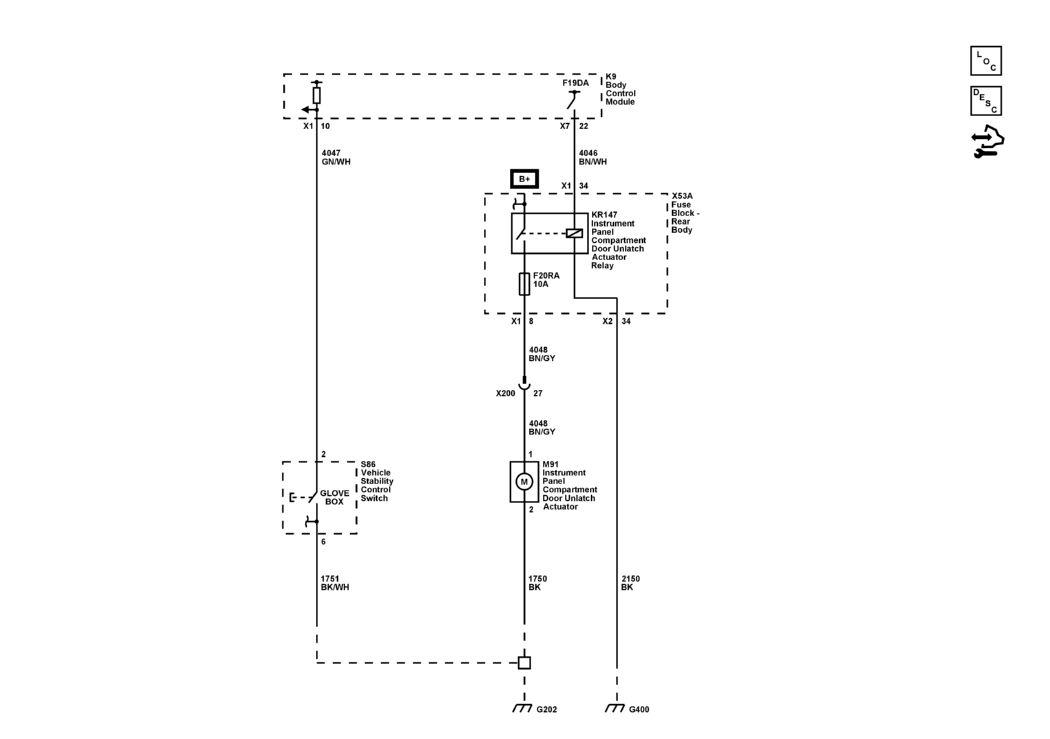

Home >> Chevrolet >> 2021 >> Blazer RS, 4WD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel And Console Trim >> Schematic Wiring Diagrams >> Instrument Panel and Console Wiring Schematics >> Instrument Panel Compartment Door
