Wireless Charging System Connector Hole Cover Replacement
Wireless Charging System Connector Hole Cover Replacement
Courtesy of GENERAL MOTORS COMPANY

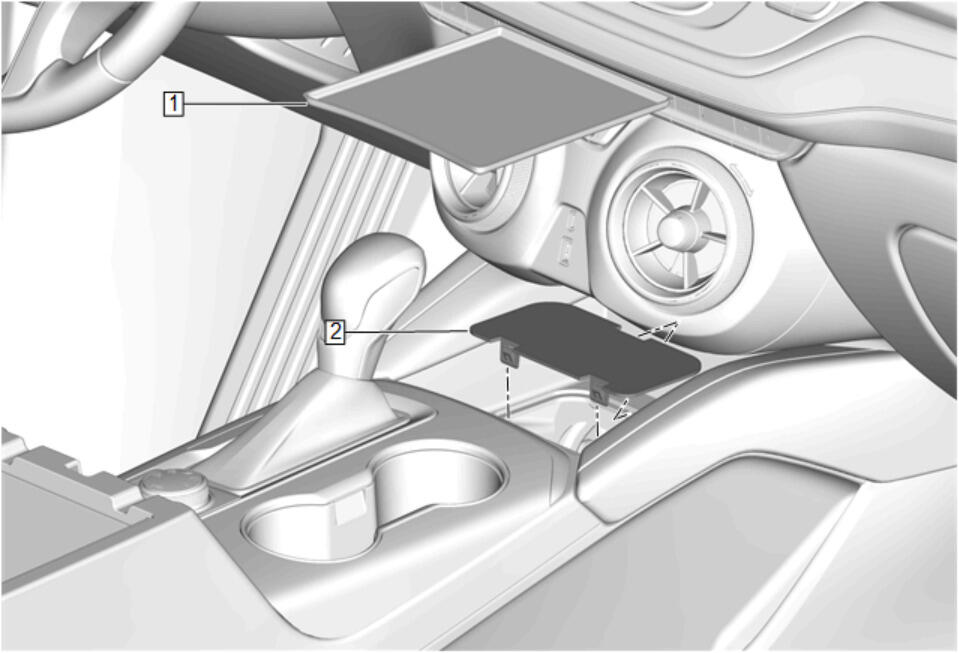

Callout
Component Name
1
Front Floor Console Front Compartment Liner
2
Wireless Charging System Connector Hole Cover
Procedure
Using a flat-bladed plastic trim tool, release the retainers.
Lift the cover up and back to clear the front tab.
