Removal Procedure

CAUTION:

Do not exert downward force at the forward or rearward edge of the roof console assembly as irreversible damage will occur.

NOTE:

Do NOT pull the back of the roof console down near the sunglass bin.

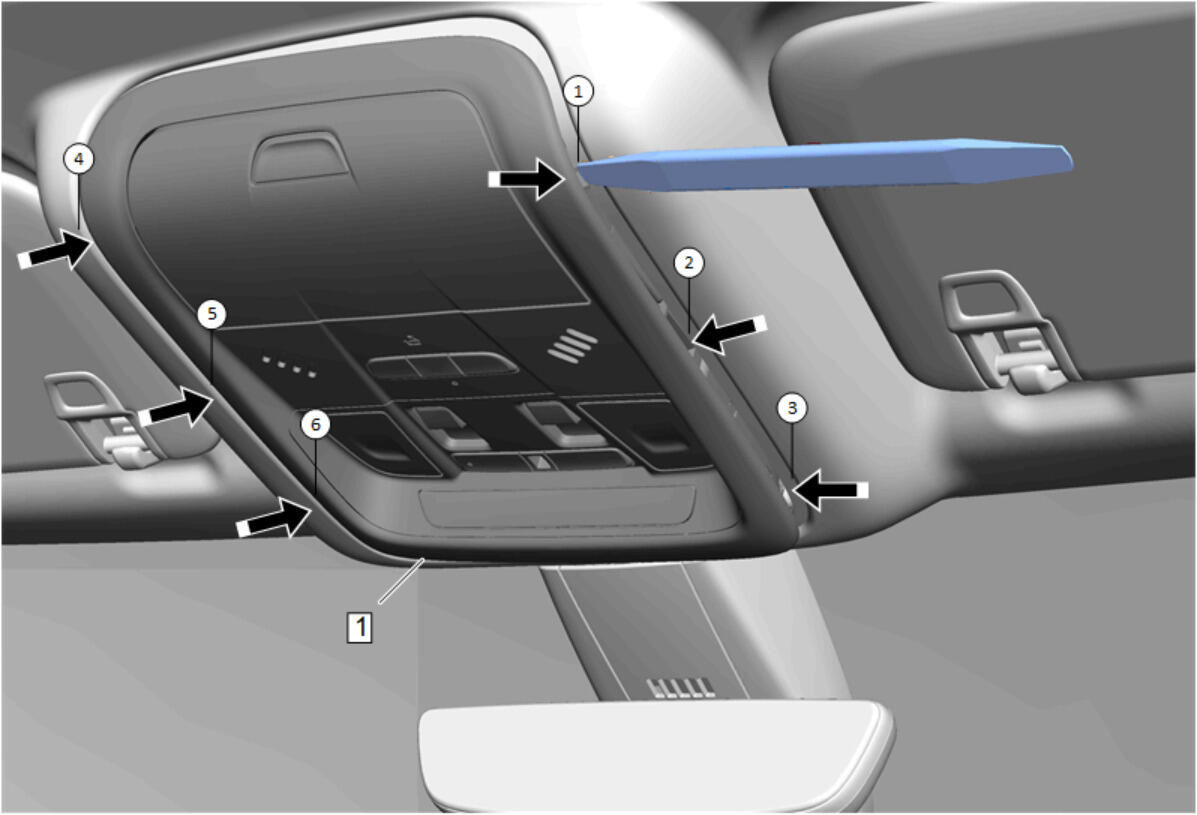

Fig 1: Identifying Roof Console With Tightening Sequence

Courtesy of GENERAL MOTORS COMPANY

With a flat-bladed trim tool, release the tab at the most rearward of the roof console (1) and pull down on console, then release the retaining tab in the middle of the console and pull down, then release the retaining tab at the most forward of the console and pull down the console along the left side.
With a flat-bladed trim tool, release the tab at the most rearward of the roof console (1) and pull down on console, then release the retaining tab in the middle of the console and pull down, then release the retaining tab at the most forward of the console and pull down the console along the right side.
Courtesy of GENERAL MOTORS COMPANY

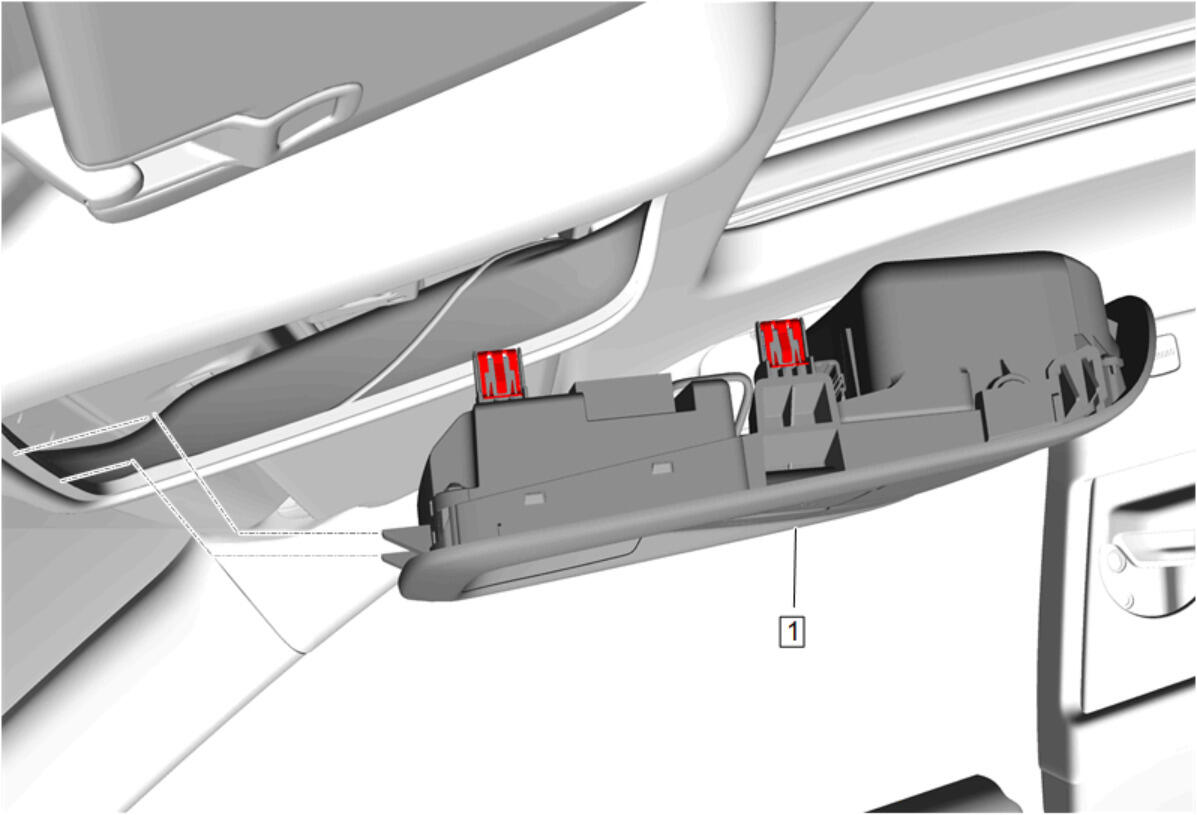

Pull the roof console (1) rearward to remove the 2 front roof console tabs from the headliner.
Disconnect the electrical connectors.
Transfer components as necessary.
