Installation Procedure

  1. Connect the electrical connectors.
  2. GM5334201Courtesy of GENERAL MOTORS COMPANY

    Install the roof console (1) and 2 roof console tabs into the headliner.

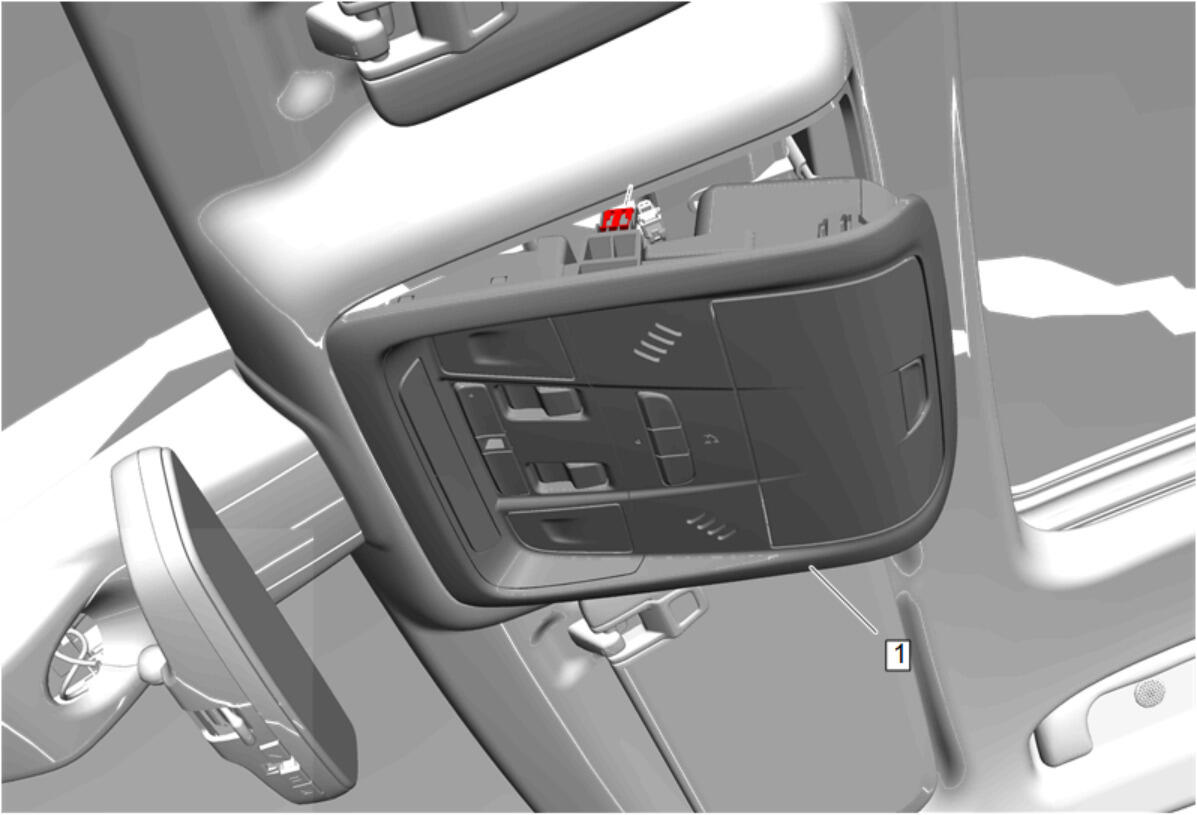

  3. GM5334220Courtesy of GENERAL MOTORS COMPANY

    Push up both sides of the roof console (1) along the retaining clips to install.
