Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Upper Trim Panel (1) - Install
Connect and position the wiring harness.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

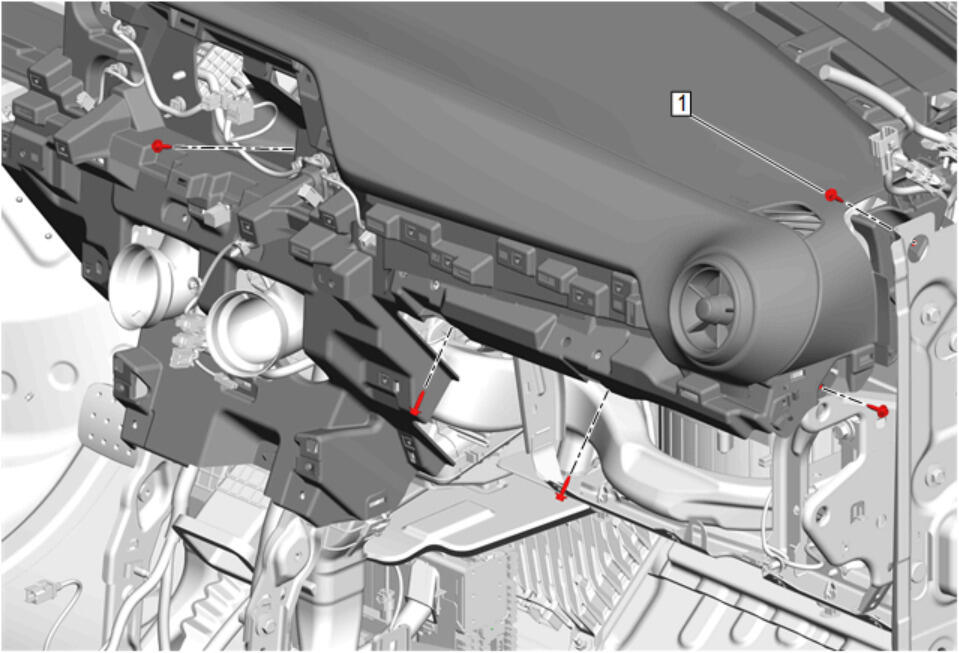

Instrument Panel Airbag Bolt (1) - Install and tighten [3x] 9 N.m (80 lb in)
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Upper Trim Pad Bolt (1) - Install and tighten [5x] 2.5 N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

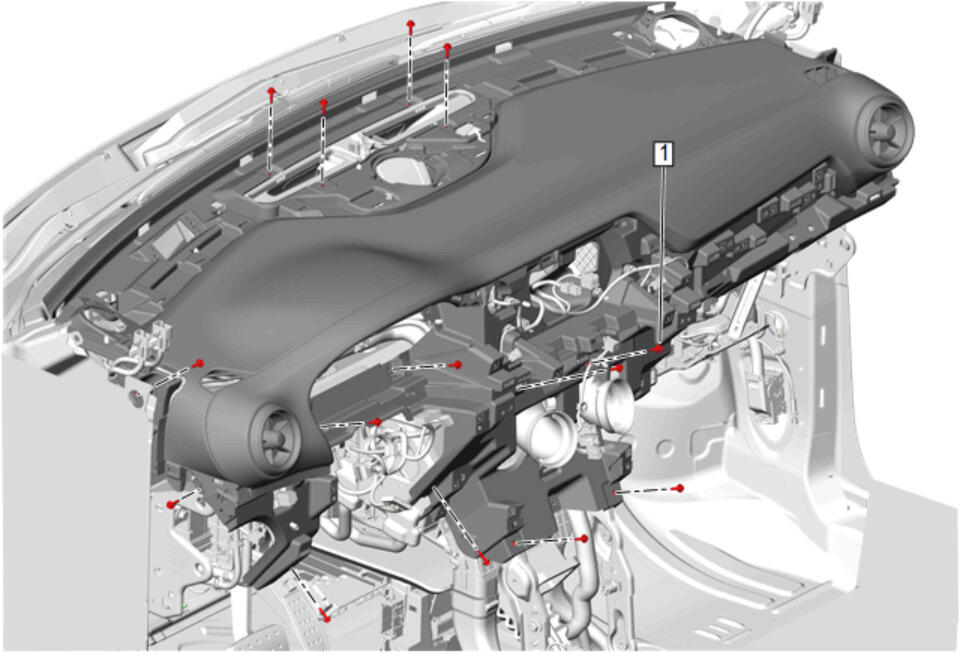

Instrument Panel Upper Trim Pad Bolt (1) - Install and tighten [14x] 2.5 N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

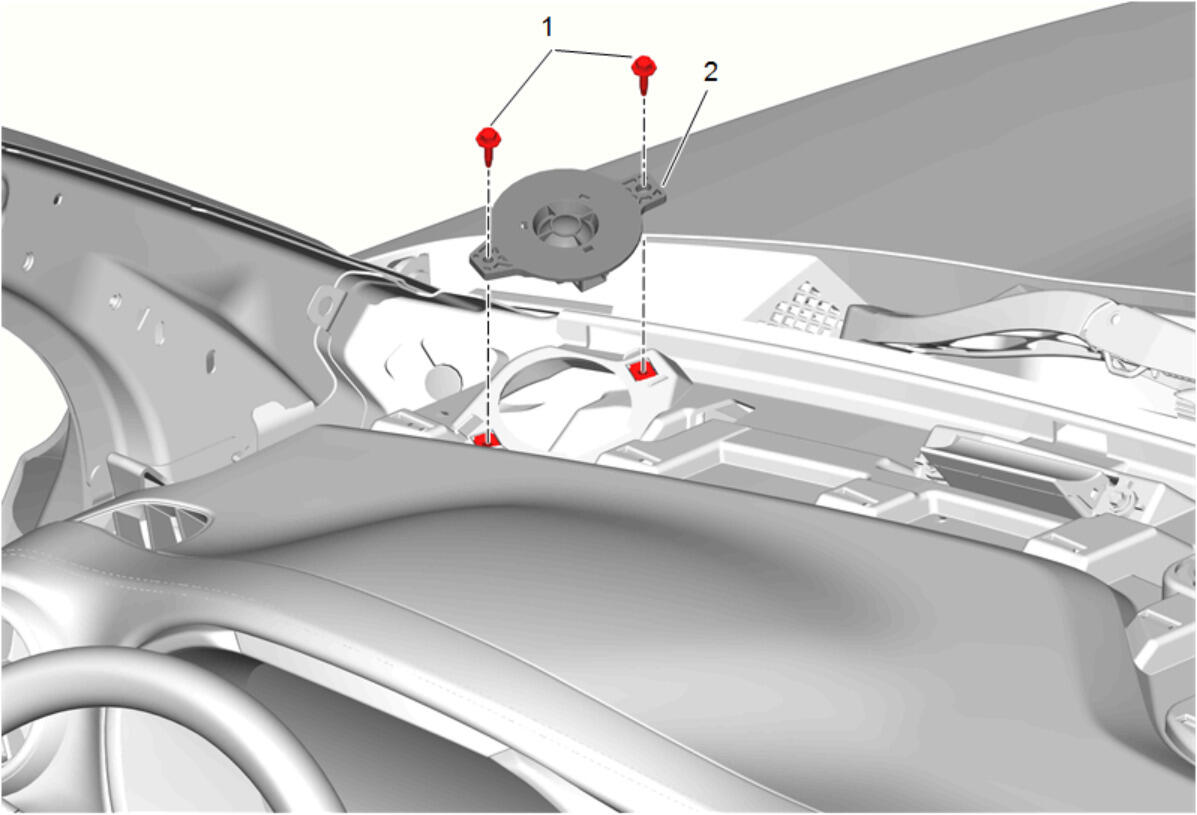

Radio Front Center Speaker (2) - Install - Radio Front Center Speaker Replacement
Courtesy of GENERAL MOTORS COMPANY

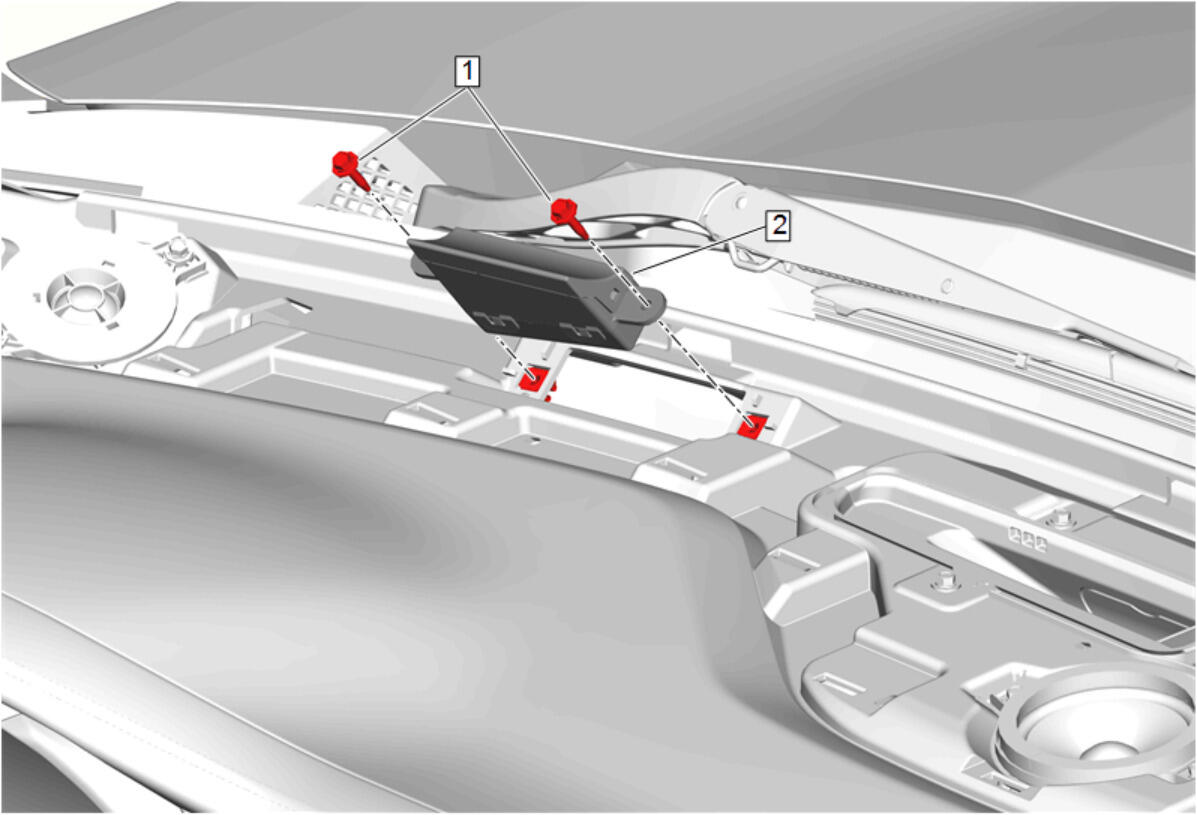

Forward Collision Alert Display (2) - Install - Forward Collision Alert Display Replacement
Courtesy of GENERAL MOTORS COMPANY

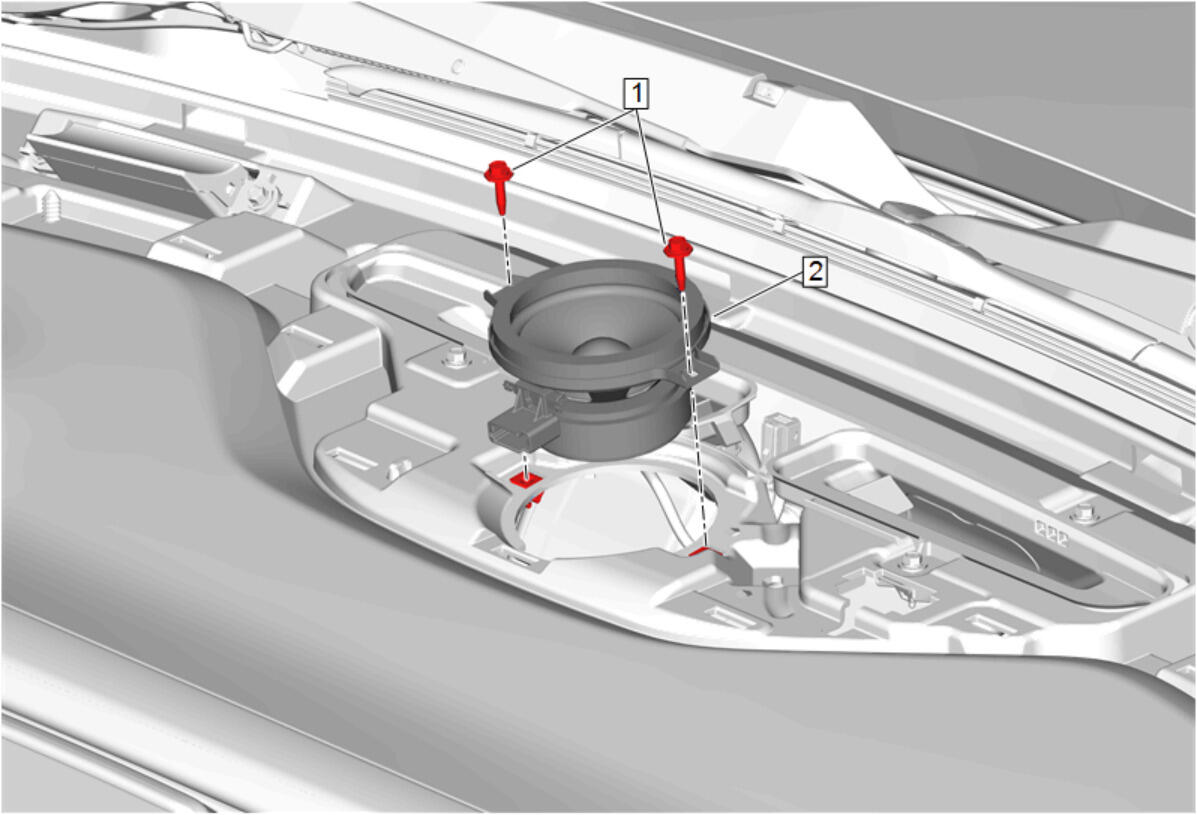

Install both of the Radio Front Speaker (2). Radio Front Speaker Replacement
Courtesy of GENERAL MOTORS COMPANY

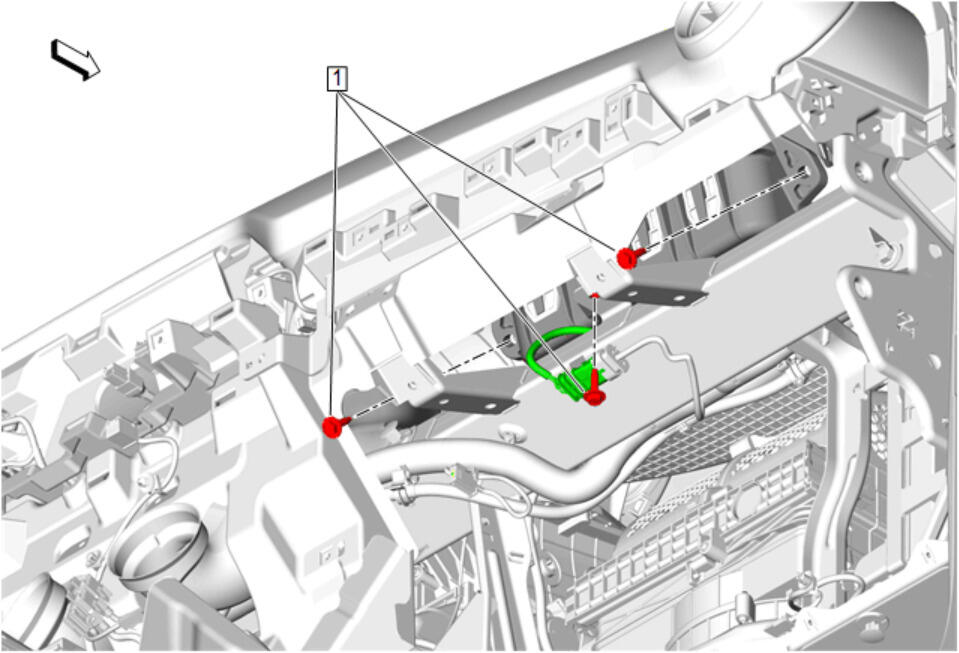

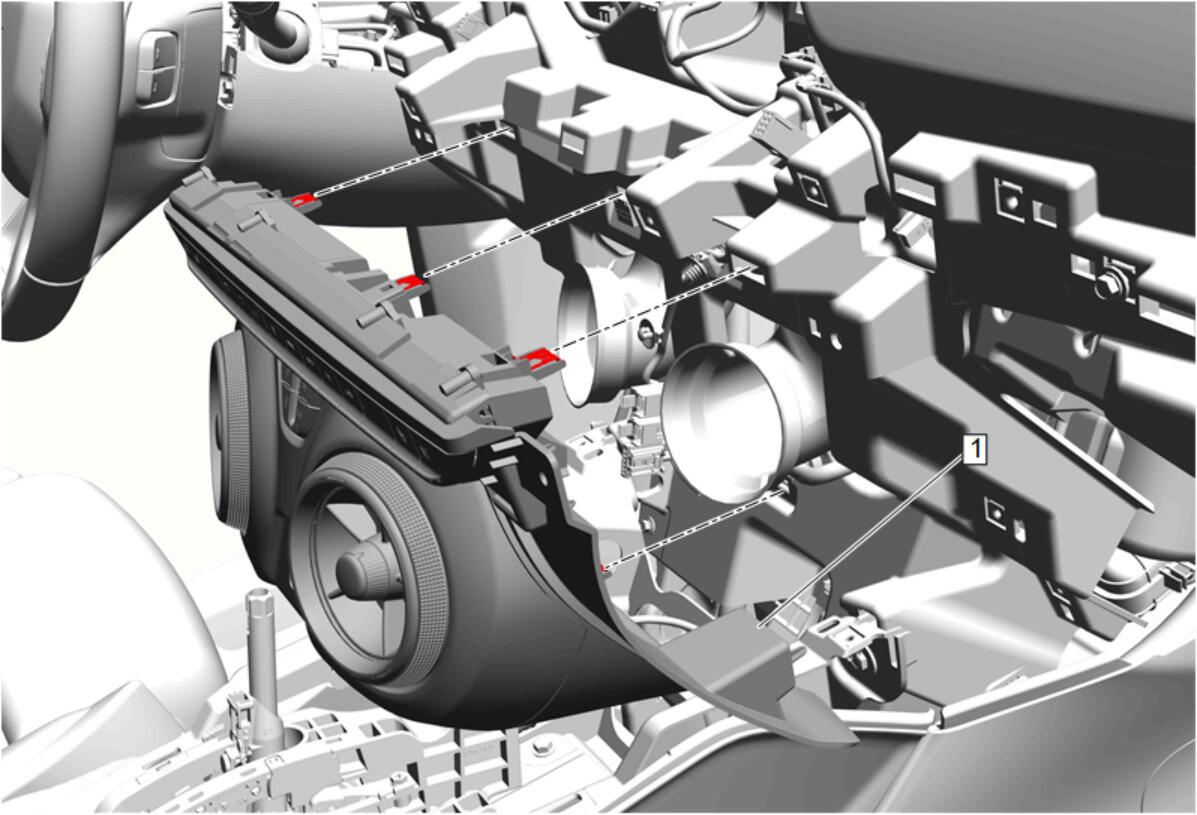

Instrument Panel Extension (1) - Install - Instrument Panel Extension Replacement
Courtesy of GENERAL MOTORS COMPANY

Heater and Air Conditioning User Interface Control (1) - Install - Heater and Air Conditioning User Interface Control Replacement
Courtesy of GENERAL MOTORS COMPANY

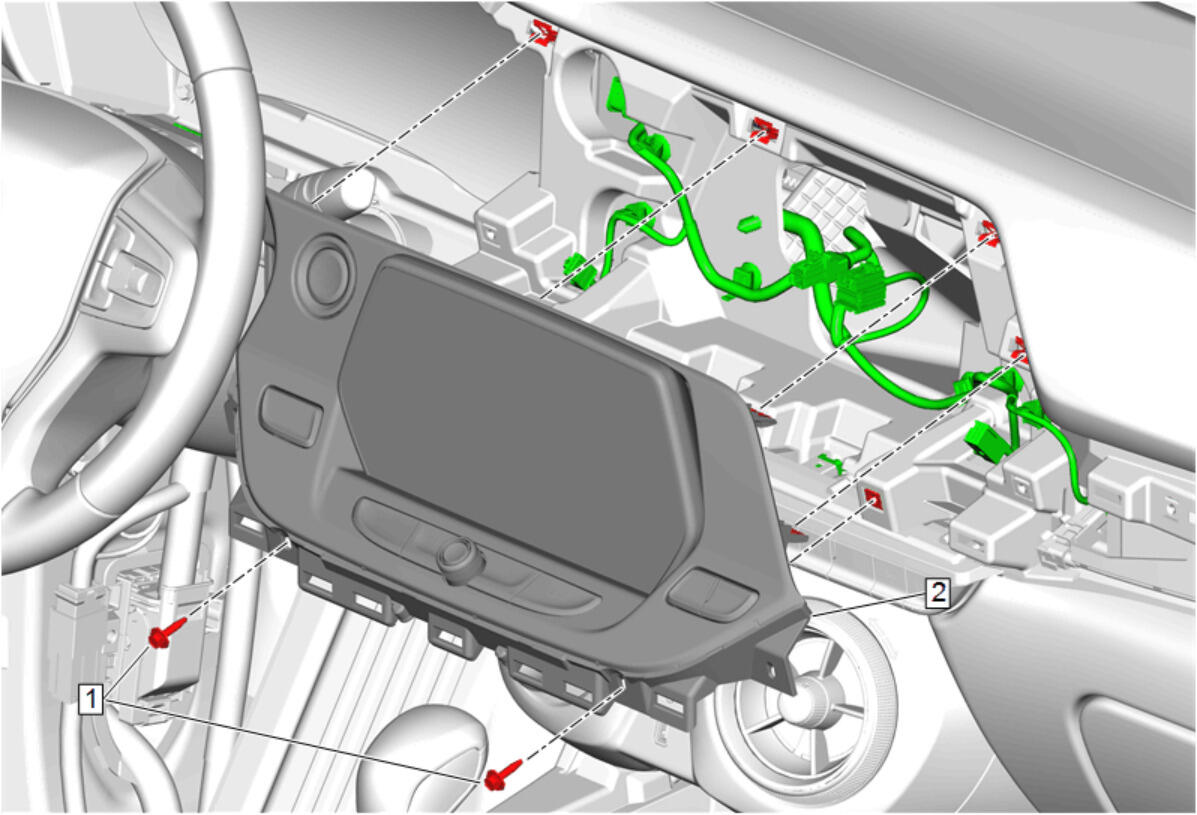

Radio Control Assembly (2) - Install - Radio Control Assembly Replacement
Courtesy of GENERAL MOTORS COMPANY

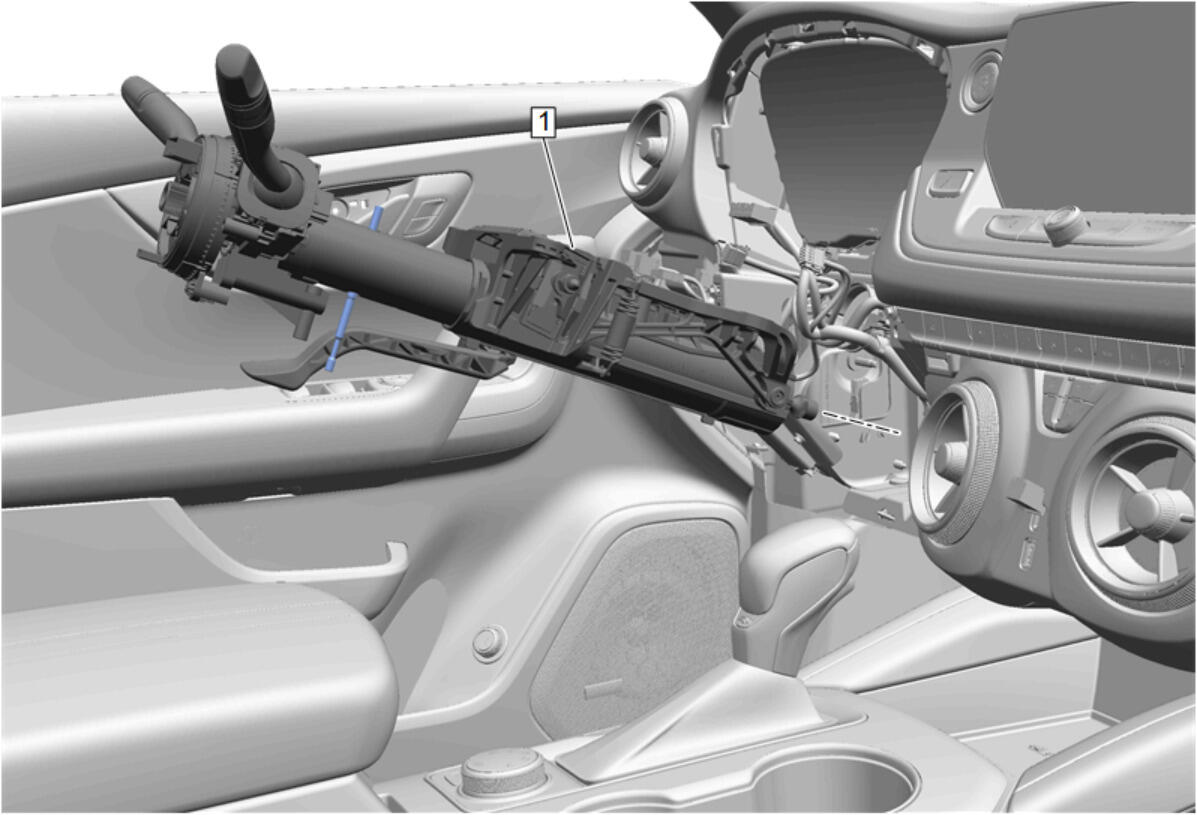

Steering Column (1) - Install - Steering Column Replacement (N37) , or Steering Column Replacement (N38)
Courtesy of GENERAL MOTORS COMPANY

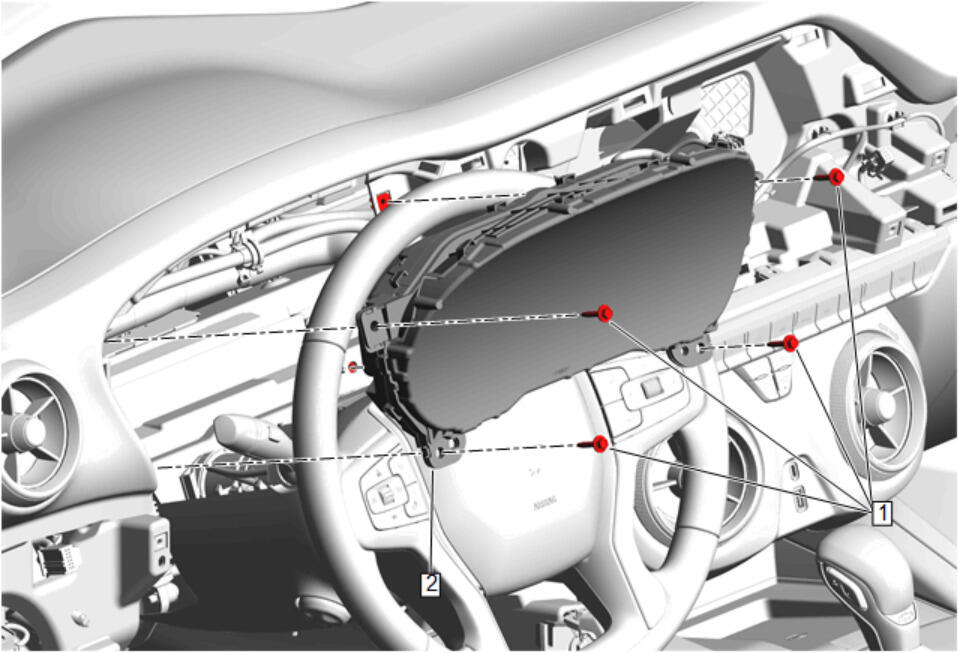

Instrument Cluster (2) - Install - Instrument Cluster Replacement
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Knee Bolster (1) - Install - Instrument Panel Knee Bolster Replacement
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Compartment (1) - Install - Instrument Panel Compartment Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Floor Lower Console (1) - Install - Front Floor Lower Console Replacement
