Installation Procedure

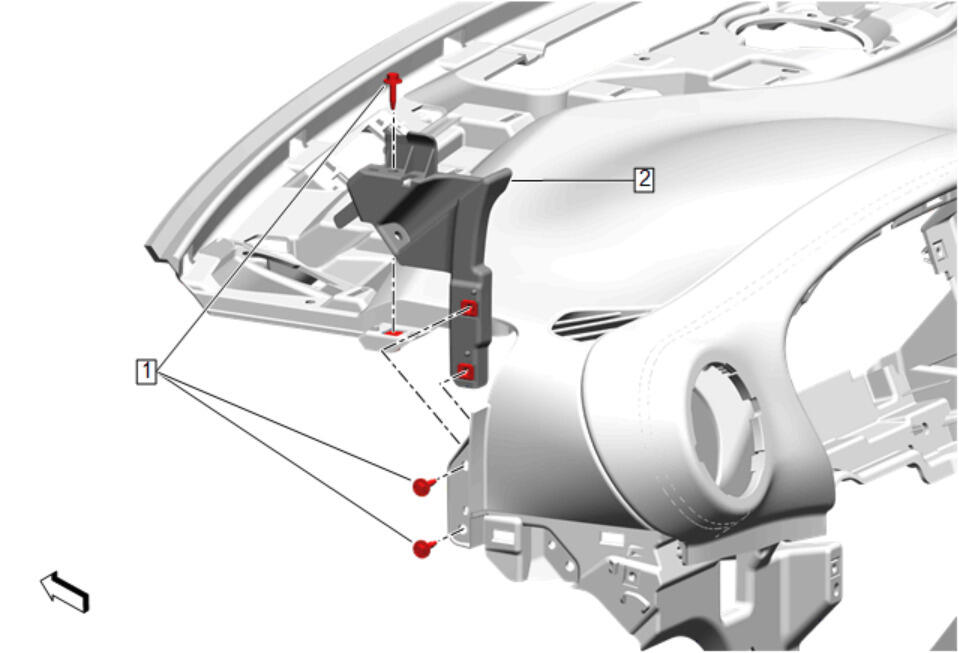

Instrument Panel Upper Trim Panel Bracket (2) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Instrument Panel Upper Trim Panel Bracket Bolt (1) - Install and tighten [3x] 2.5 N.m (22 lb in)

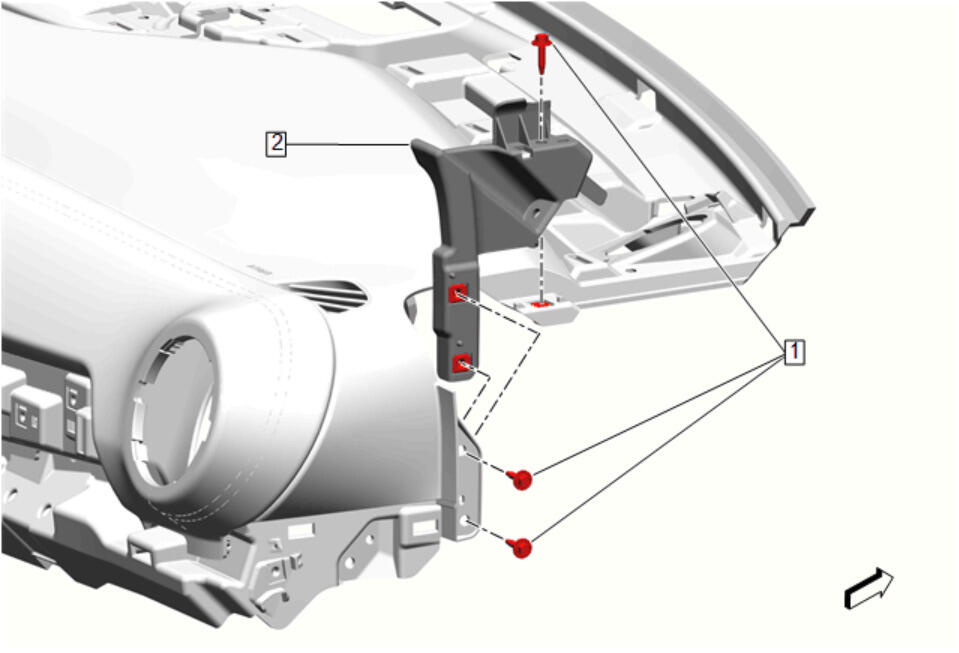

Instrument Panel Upper Trim Panel Bracket (2) - Install
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Upper Trim Panel Bracket Bolt (1) - Install and tighten [3x] 2.5 N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

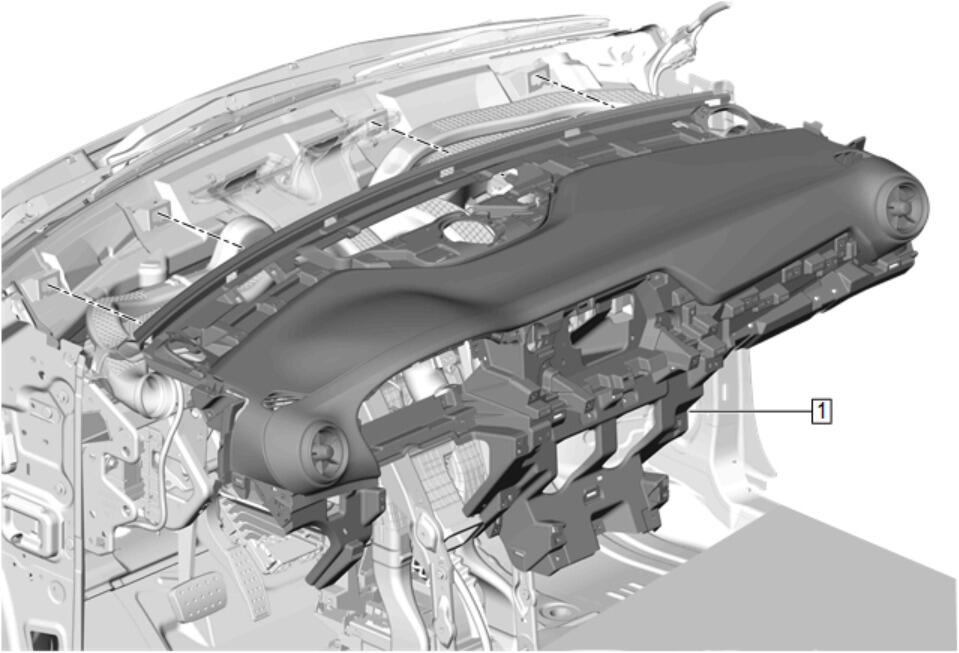

Instrument Panel Upper Trim Panel (1) - Install - Instrument Panel Upper Trim Panel Replacement
