Installation Procedure

  1. With the aid of an assistant, position the instrument panel tie bar assembly into the vehicle.
  2. Install the instrument panel wiring harness to the position noted in the removal procedure.
  3. GM4310267Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Instrument Panel Tie Bar Bolt (1) - Install and tighten [2x] 22 N.m (16 lb ft)

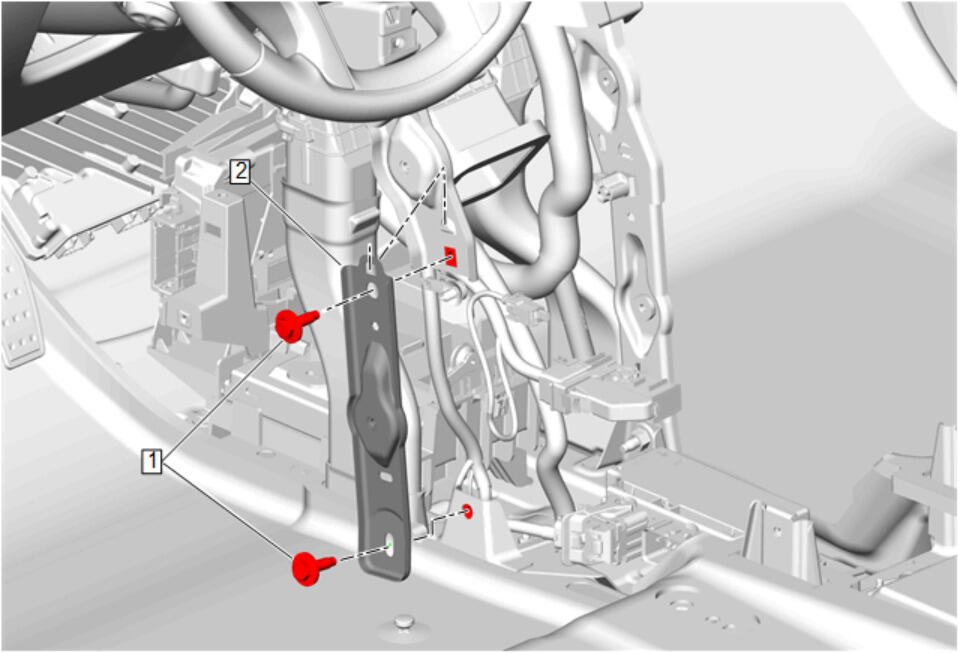

  4. GM5146239Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Tie Bar Brace (2) - Install - Instrument Panel Tie Bar Brace Replacement

  5. GM4310266Courtesy of GENERAL MOTORS COMPANY

    Heater and Air Conditioning Evaporator and Blower Module Bolt (1) - Install and tighten [4x] 9 N.m (80 lb in)

  6. GM4310265Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Tie Bar Bolt (1) - Install and tighten [2x] 22 N.m (16 lb ft)

  7. GM4310264Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Tie Bar Bolt (1) - Install and tighten [2x] 22 N.m (16 lb ft)

  8. GM4310263Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Tie Bar Bolt (1) - Install and tighten 22 N.m (16 lb ft)

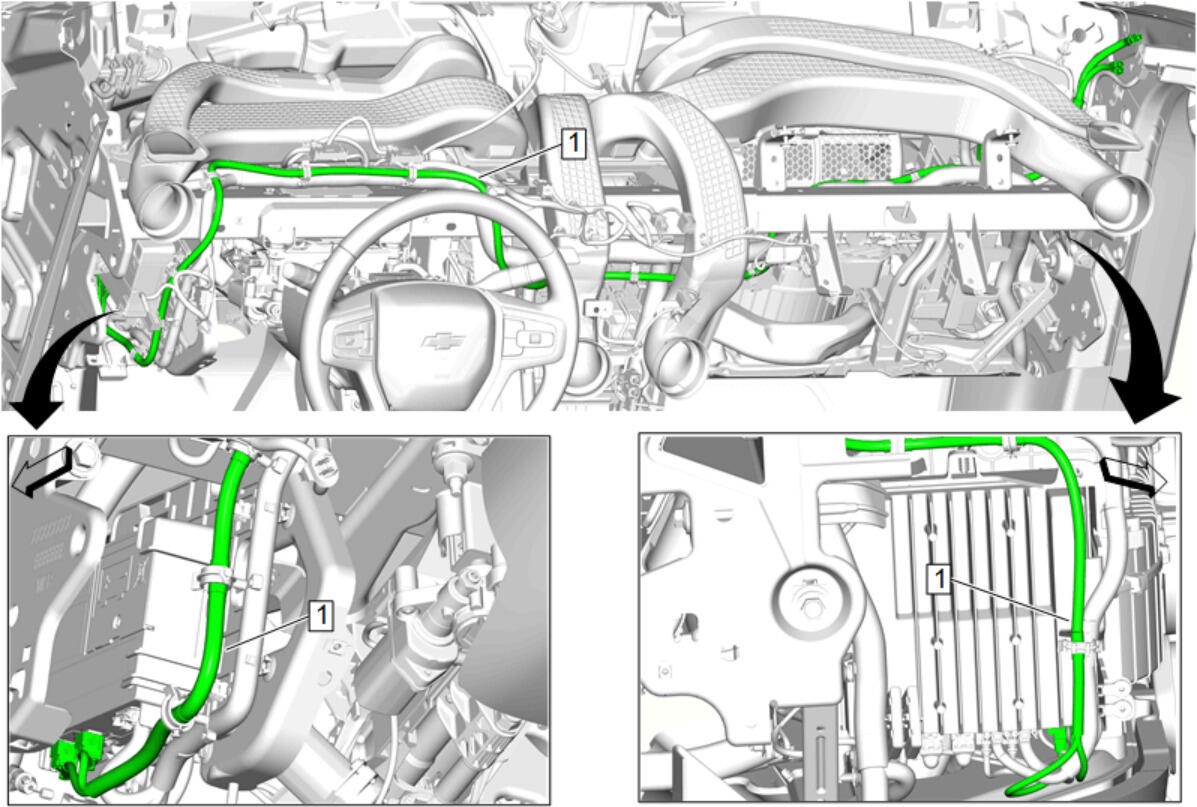

  9. GM5145963Courtesy of GENERAL MOTORS COMPANY

    Antenna Coaxial Cable - Instrument Panel (1) - Install - Antenna Coaxial Cable Replacement - Instrument Panel

  10. GM5128196Courtesy of GENERAL MOTORS COMPANY

    Radio Bracket (3) - Install - Radio Bracket Replacement

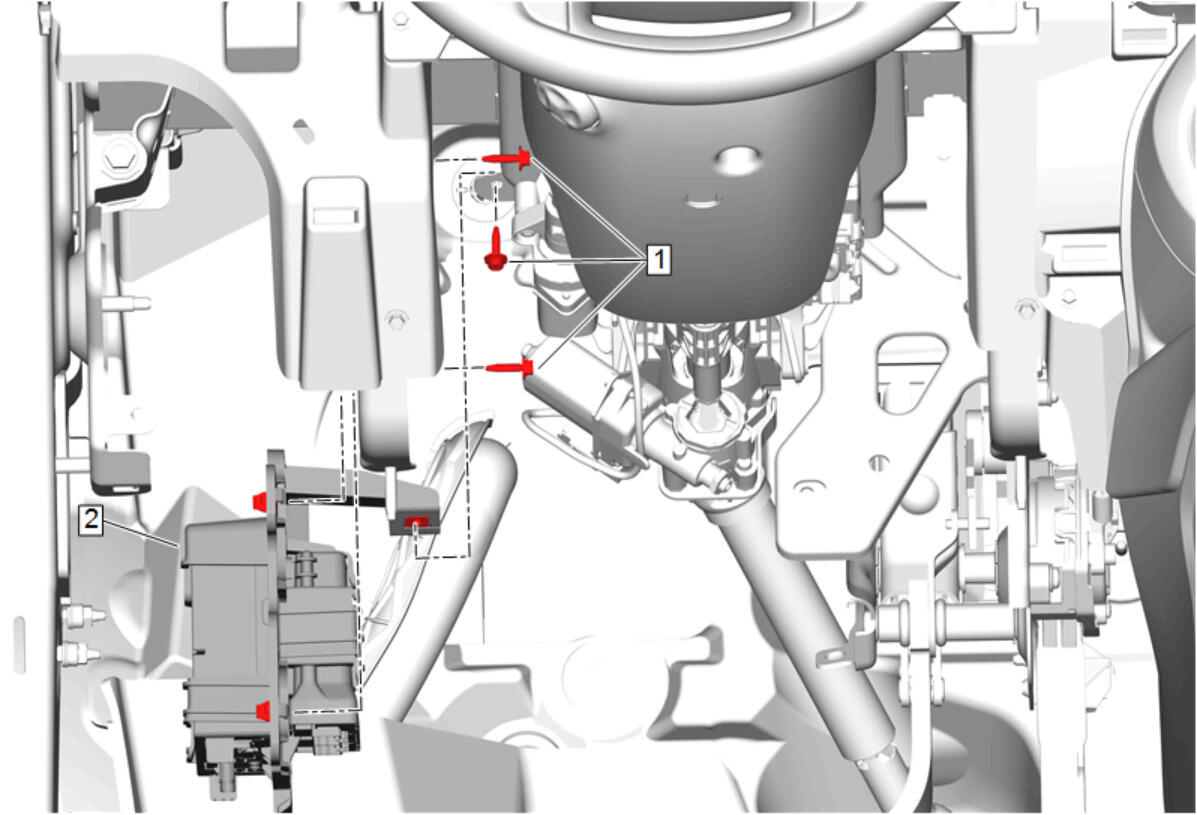

  11. GM5136875Courtesy of GENERAL MOTORS COMPANY

    Communication Interface Module Bracket (2) - Install - Communication Interface Module Bracket Replacement

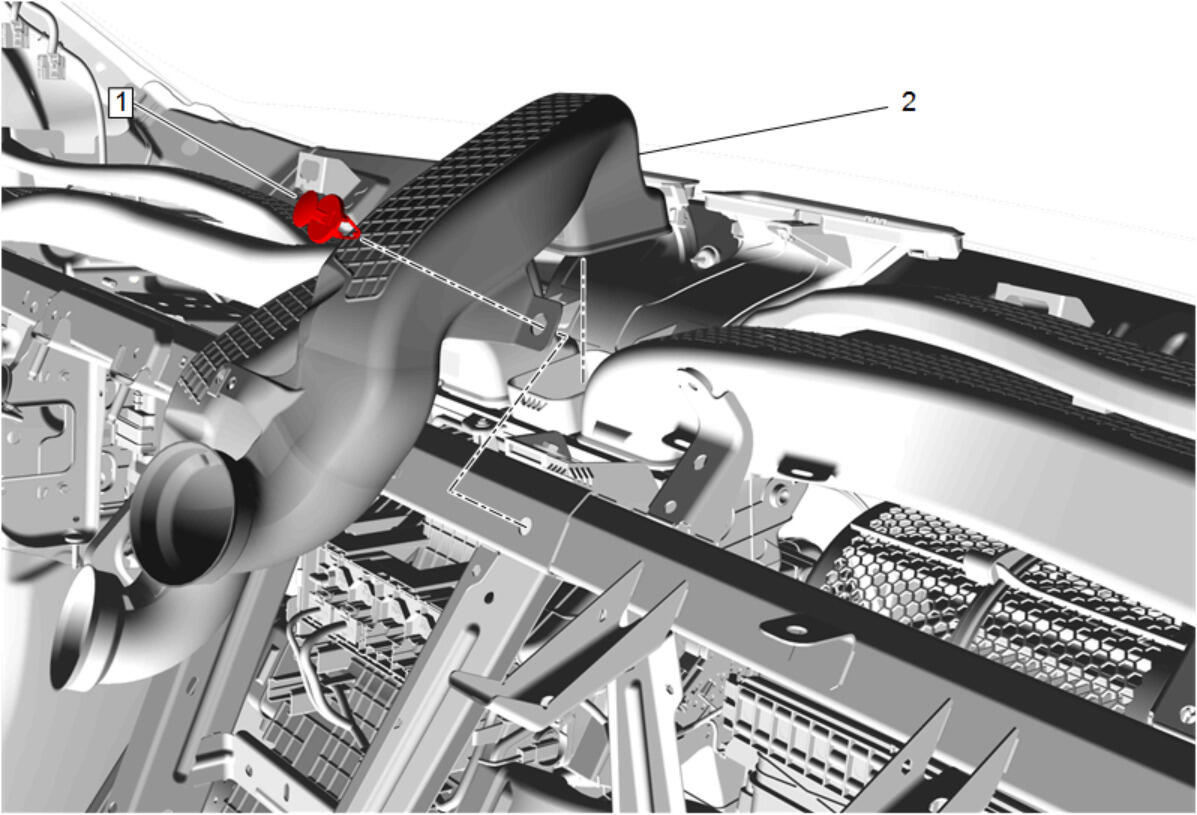

  12. GM5137340Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Air Outlet Duct-Right Side (2) - Install - Instrument Panel Center Air Outlet Duct Replacement - Right Side

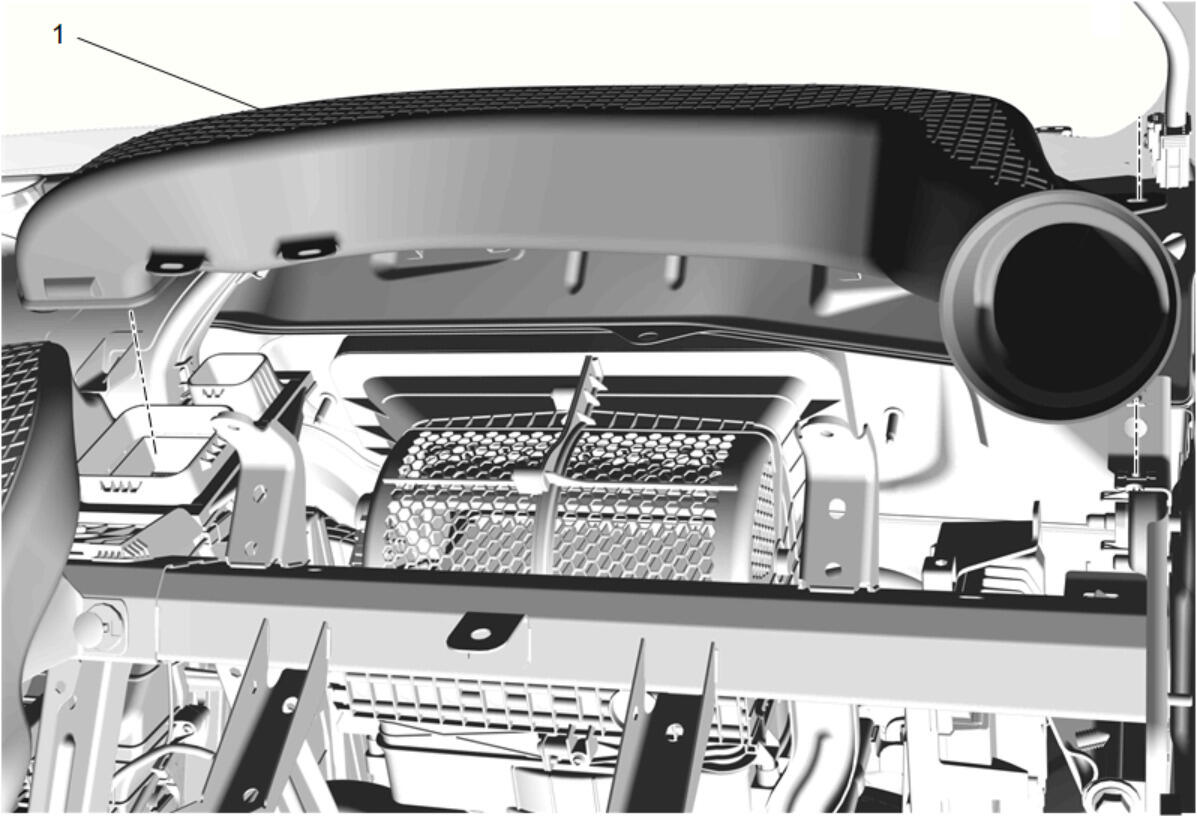

  13. GM5137308Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Air Outlet Duct - Right Side (1) - Install - Instrument Panel Outer Air Outlet Duct Replacement - Right Side

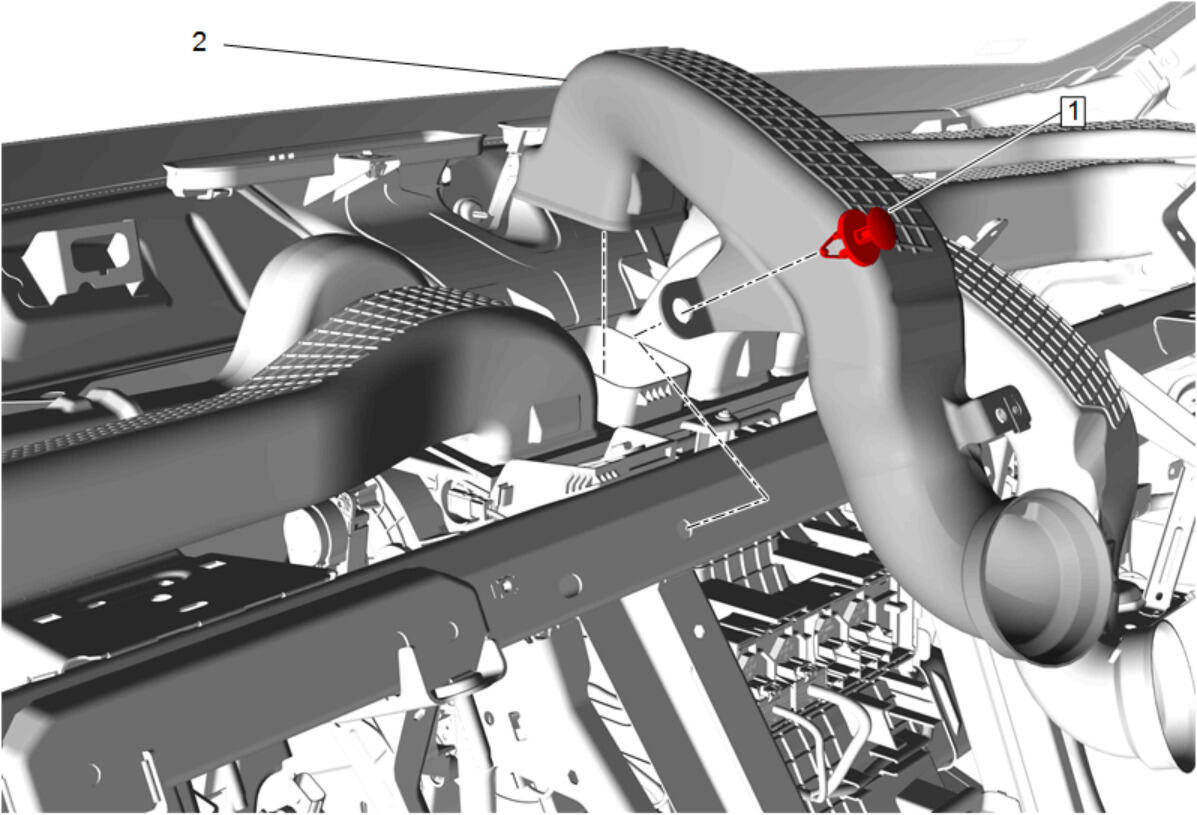

  14. GM5137347Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Air Outlet Duct-Left Side (2) - Install - Instrument Panel Center Air Outlet Duct Replacement - Left Side

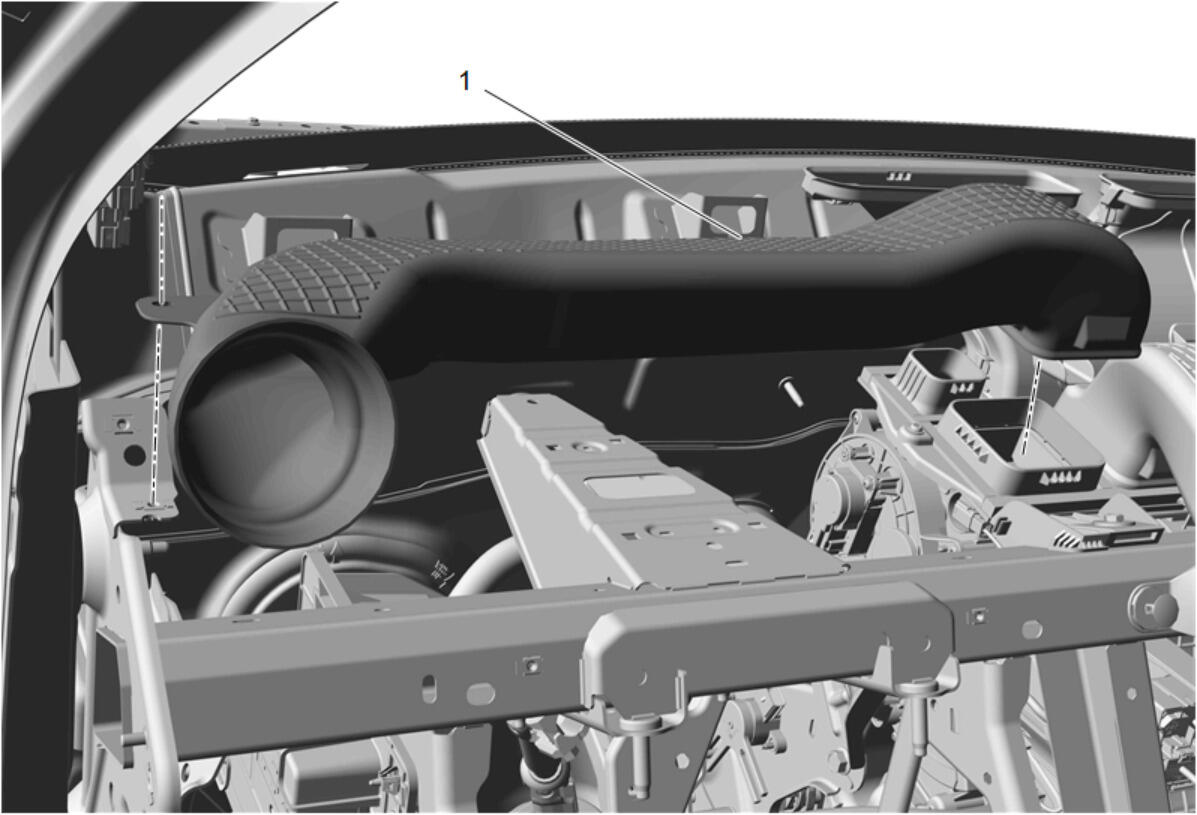

  15. GM5137939Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Air Outlet Duct - Left Side (1) - Install - Instrument Panel Outer Air Outlet Duct Replacement - Left Side

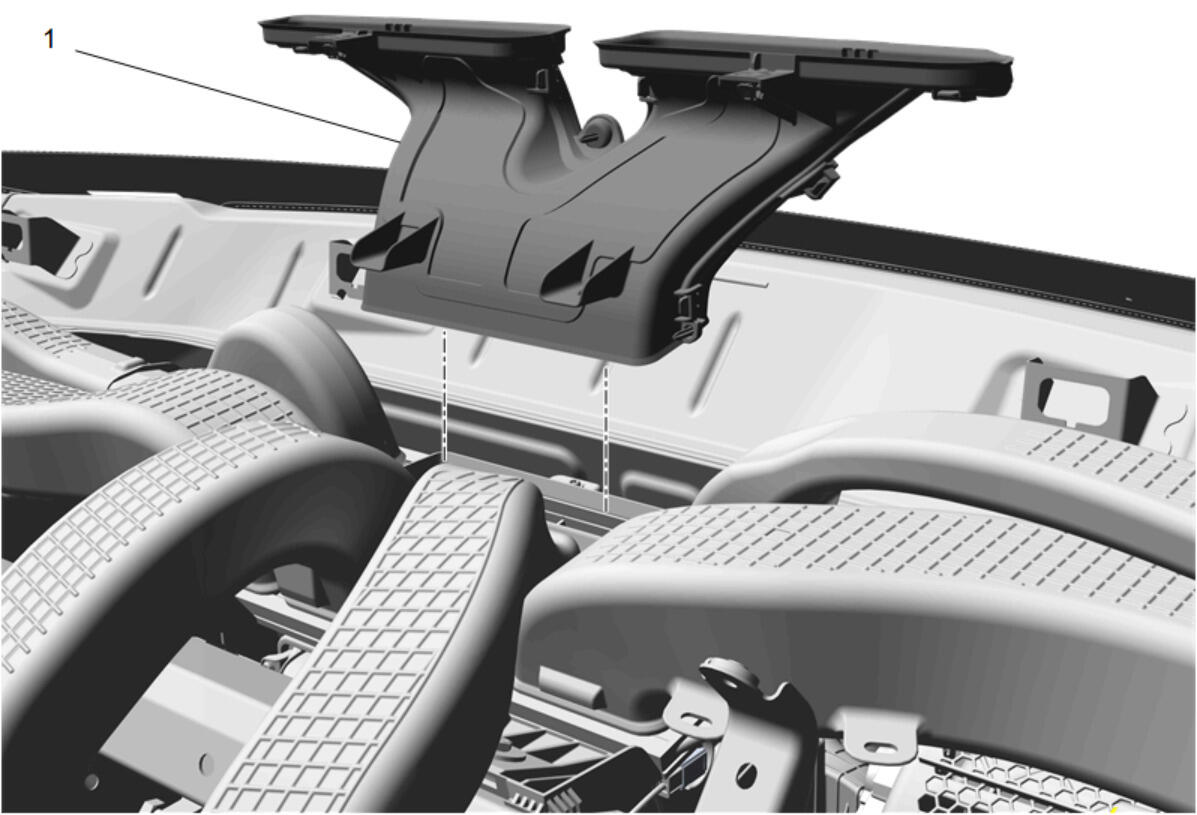

  16. GM5137856Courtesy of GENERAL MOTORS COMPANY

    Windshield Defroster Duct (1) - Install - Windshield Defroster Duct Replacement

  17. Heater and Air Conditioning Evaporator and Blower Module Nut - Install - Heater and Air Conditioning Evaporator and Blower Module Removal and Installation
  18. GM4281971Courtesy of GENERAL MOTORS COMPANY

    Windshield Wiper Transmission (2) - Install - Windshield Wiper Transmission Replacement

  19. Brake and Accelerator Pedal Assembly - Install - Brake and Accelerator Pedal Assembly Replacement (without JEO) , or Brake and Accelerator Pedal Assembly Replacement (with JEO)
  20. GM5145831Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Upper Trim Panel (1) - Install - Instrument Panel Upper Trim Panel Replacement

  21. GM5132133Courtesy of GENERAL MOTORS COMPANY

    Front Side Door (4) - Install - Front Side Door Replacement
