Installation Procedure

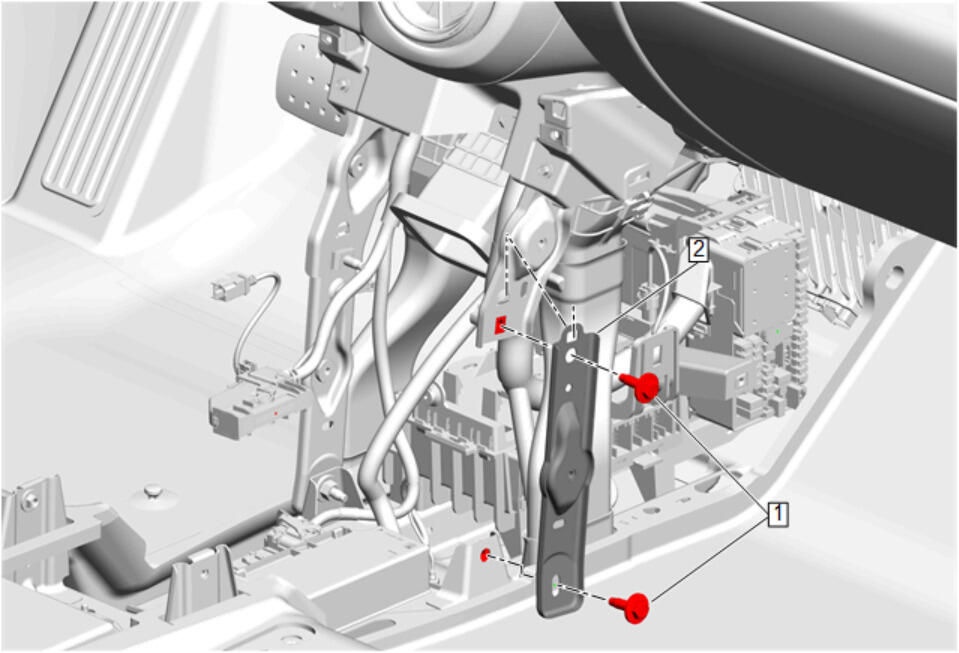

  1. GM5146243Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Tie Bar Brace (2) - Install

  2. Instrument Panel Tie Bar Brace Bolt (1) - Install and tighten [2x] 22 N.m (16 lb ft)
  3. Connect electrical connections, if applicable.
  4. GM5146239Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Tie Bar Brace (2) - Install

  5. Instrument Panel Tie Bar Brace Bolt (1) - Install and tighten [2x] 22 N.m (16 lb ft)
  6. Connect electrical connections, if applicable.
  7. GM5125416Courtesy of GENERAL MOTORS COMPANY

    Front Floor Lower Console (1) - Install - Front Floor Lower Console Replacement
