Installation Procedure

Connect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Instrument Panel Knee Bolster (1) - Install
Front Floor Console Extension Panel - Left Side - Install - Front Floor Console Extension Panel Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

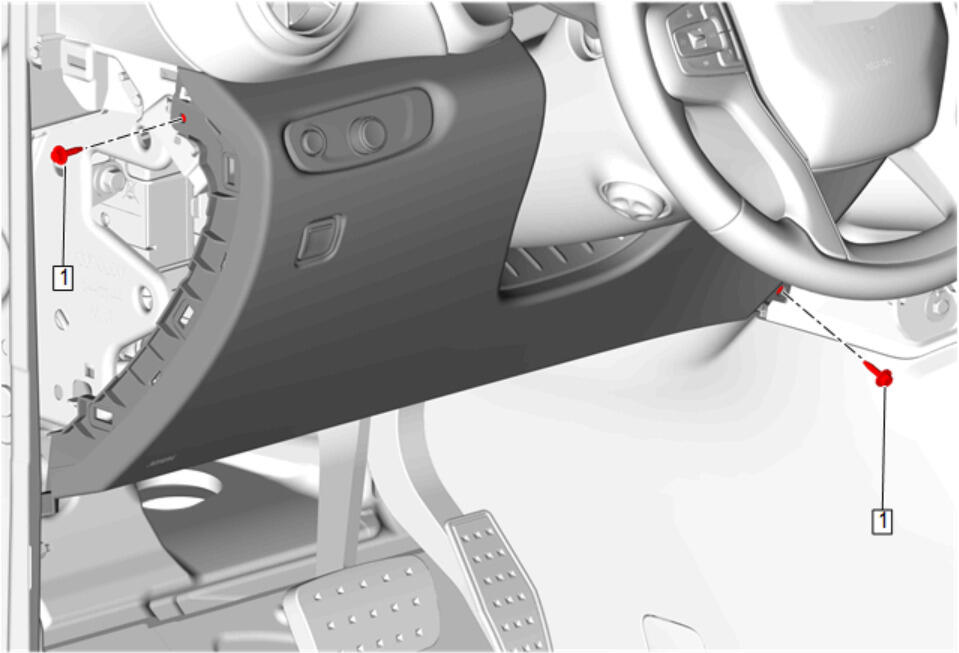

Instrument Panel Knee Bolster Bolt (1) - Install and tighten [2x] 2.5 N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

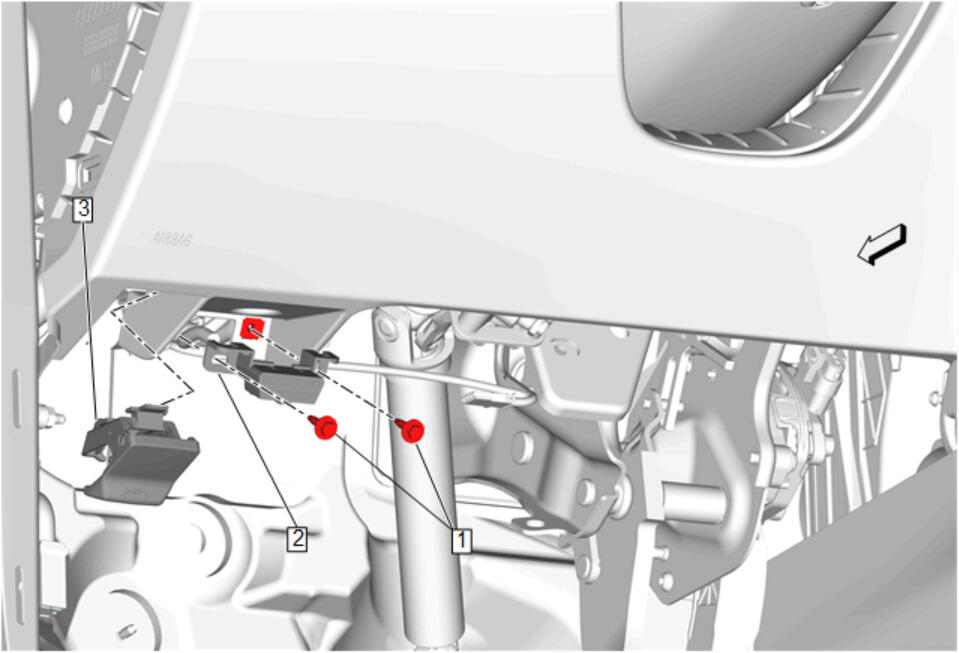

Data Link Connector (2) - Install
Data Link Connector Bolt (1) - Install and tighten [2x] 2.5 N.m (22 lb in)
Hood Primary Latch Release Cable Handle (3) - Install
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Knee Bolster Deflector (2) - Install - Instrument Panel Knee Bolster Deflector Replacement
Install the left front side door sill garnish molding (1). Front Side Door Sill Garnish Molding Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Side Trim Panel - Left Side (1) - Install - Front Floor Console Side Trim Panel Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

Install the left instrument panel outer trim cover (1). Instrument Panel Outer Trim Cover Replacement
