Installation Procedure

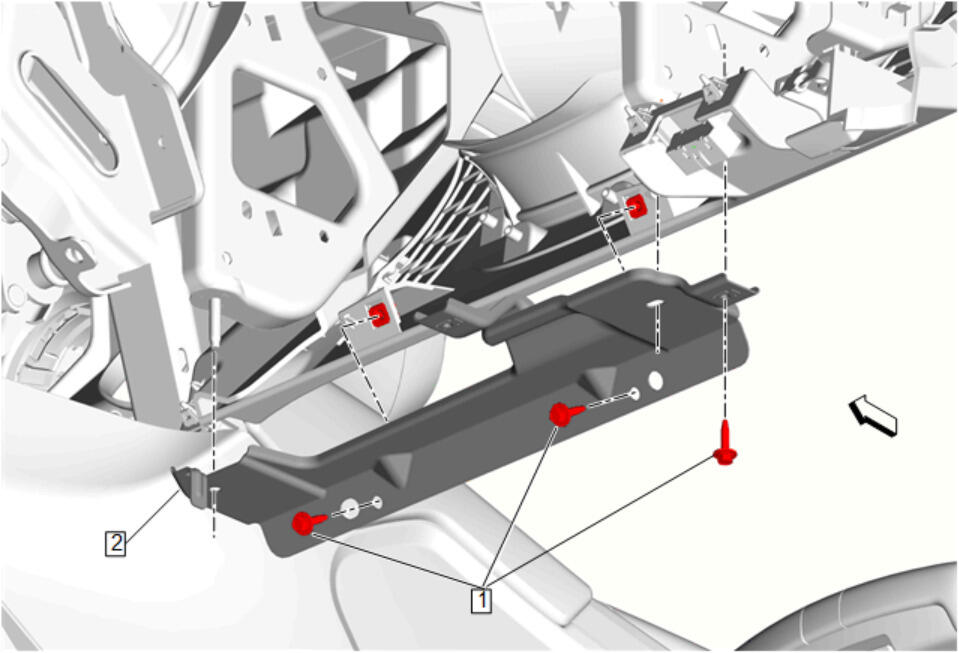

  1. GM5129734Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster Deflector (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Instrument Panel Knee Bolster Bolt (1) - Install and tighten [3x] 2.5 N.m (22 lb in)
  3. GM4290914Courtesy of GENERAL MOTORS COMPANY

    Floor Front Air Outlet Duct - Left Side (2) - Install - Floor Front Air Outlet Duct Replacement - Left Side

  4. Instrument Panel Lower Airbag - Driver Side - Install - Instrument Panel Lower Airbag Replacement - Driver Side
