Installation Procedure

Connect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

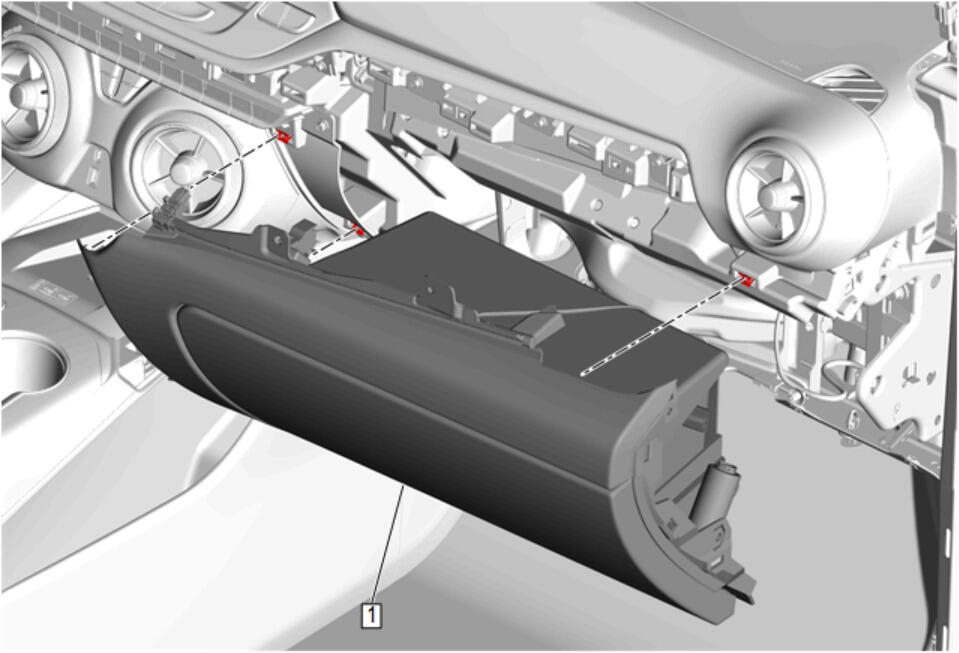

Instrument Panel Compartment (1) - Install
Front Floor Console Extension Panel - Right Side - Install - Front Floor Console Extension Panel Replacement - Right Side
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

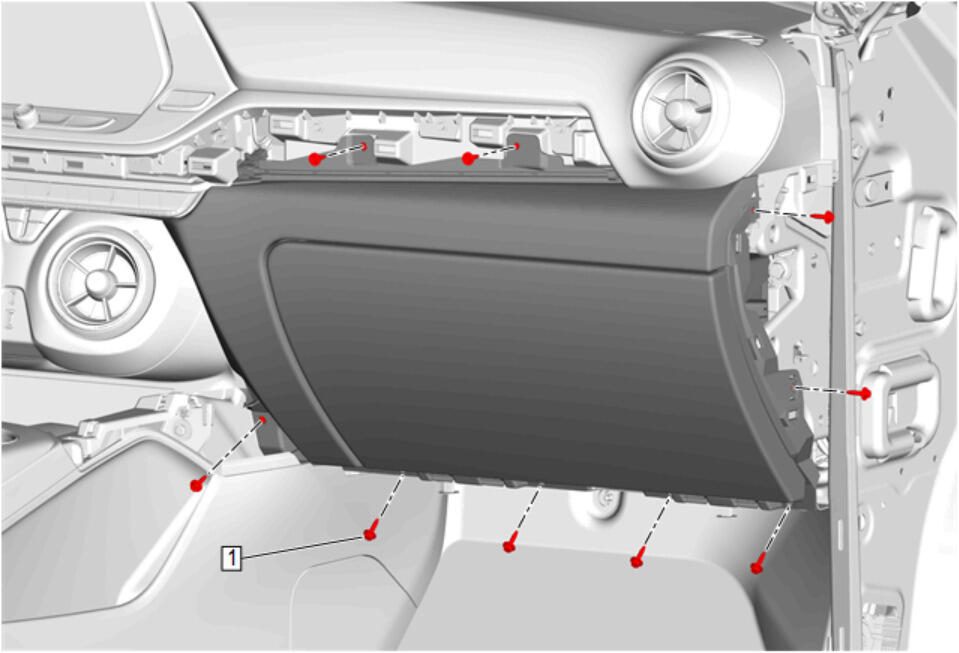

Instrument Panel Compartment Bolt (1) - Install and tighten [9x] 2.5 N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Trim Pad (1) - Install - Instrument Panel Trim Pad Replacement
Install the right front side door sill garnish molding (1). Front Side Door Sill Garnish Molding Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Side Trim Panel - Right Side (1) - Install - Front Floor Console Side Trim Panel Replacement - Right Side
Courtesy of GENERAL MOTORS COMPANY

Install the right instrument panel outer trim cover (1). Instrument Panel Outer Trim Cover Replacement
