Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

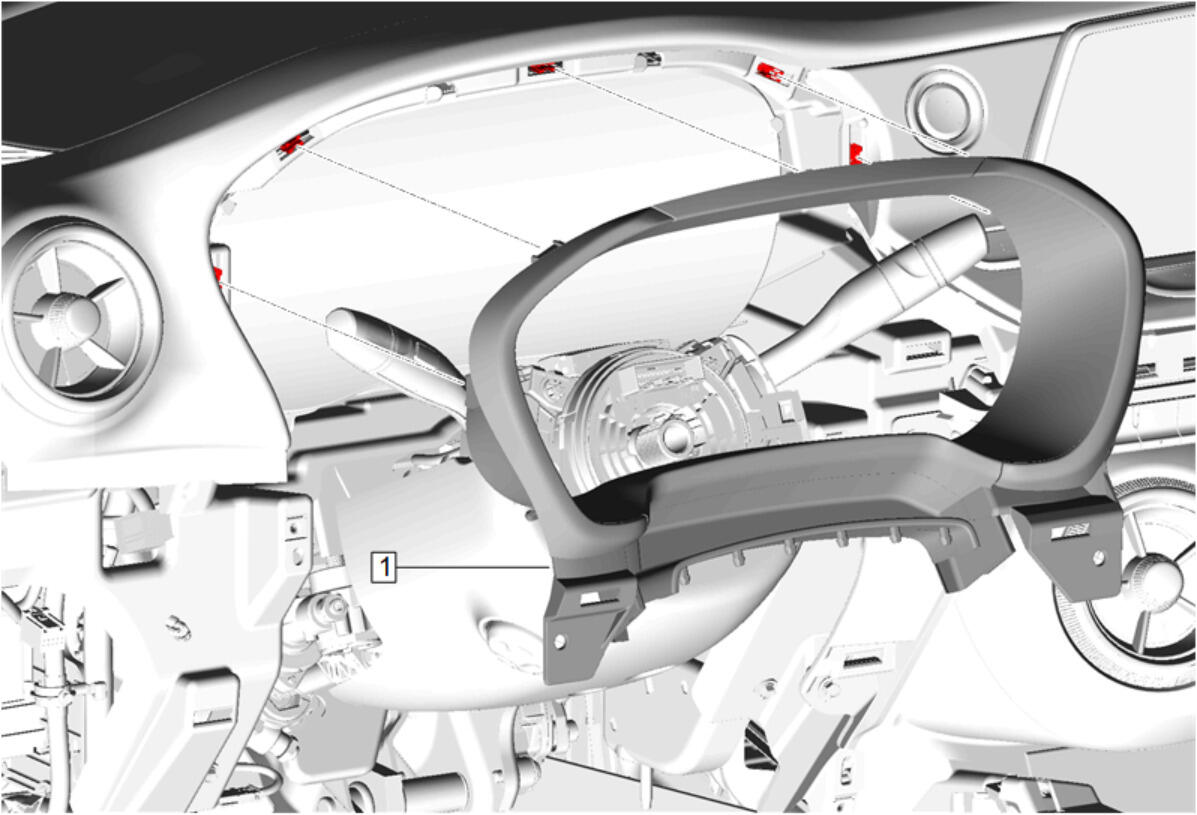

Instrument Panel Cluster Trim Plate (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

NOTE:
Some components not shown for graphic clarity.

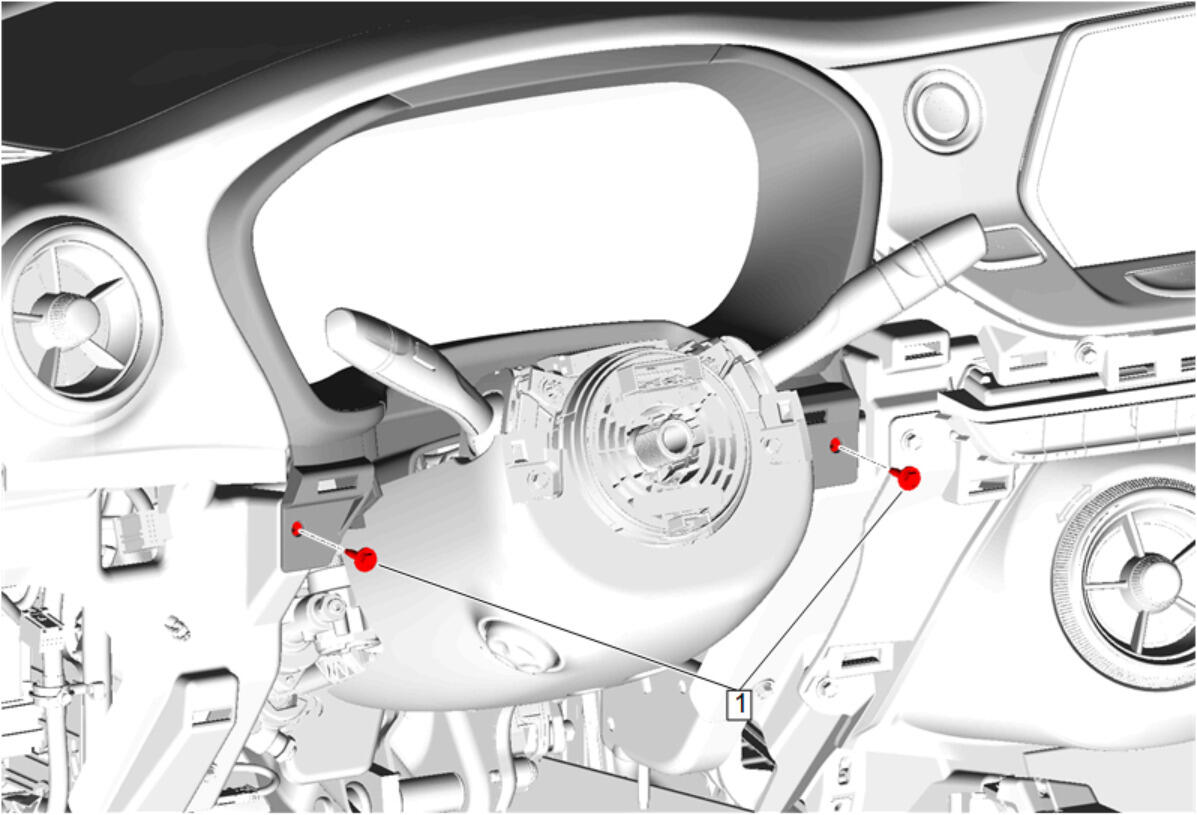

Instrument Panel Cluster Trim Plate Bolt (1) - Install and tighten [2x] 2.5 N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

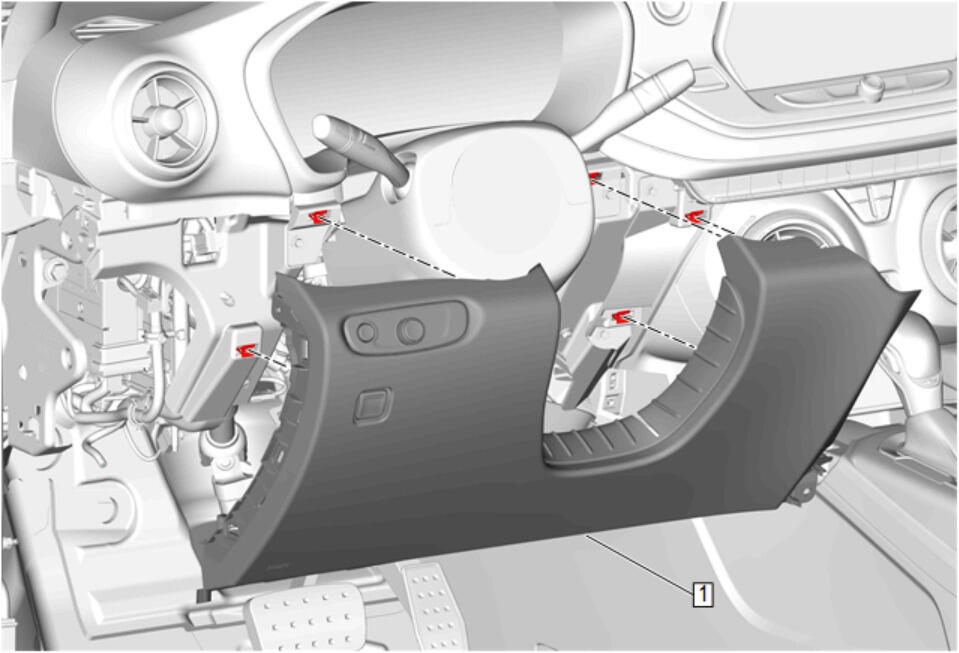

Instrument Panel Steering Column Upper Trim Cover (1) - Install - Instrument Panel Steering Column Upper Trim Cover Replacement
Courtesy of GENERAL MOTORS COMPANY

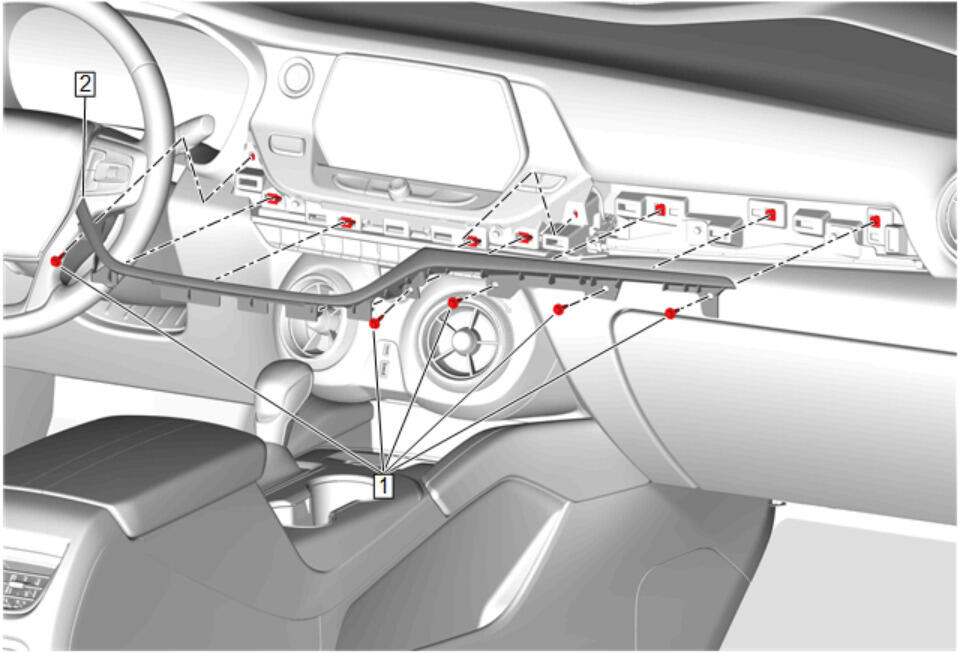

Trim Accent Molding (2) - Install - Trim Accent Molding Replacement
Courtesy of GENERAL MOTORS COMPANY

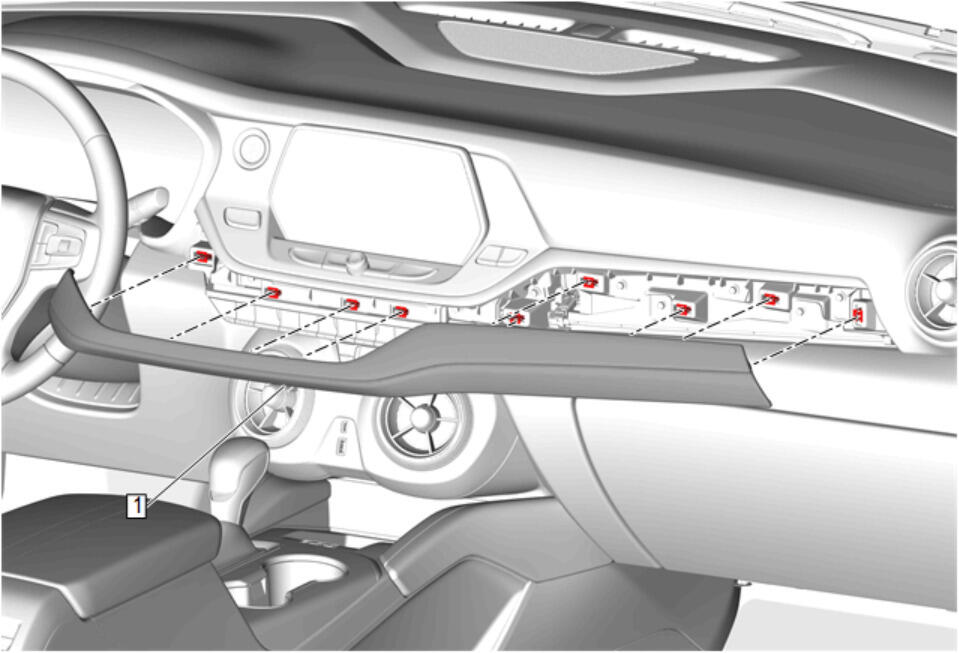

Instrument Panel Trim Pad (1) - Install - Instrument Panel Trim Pad Replacement
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

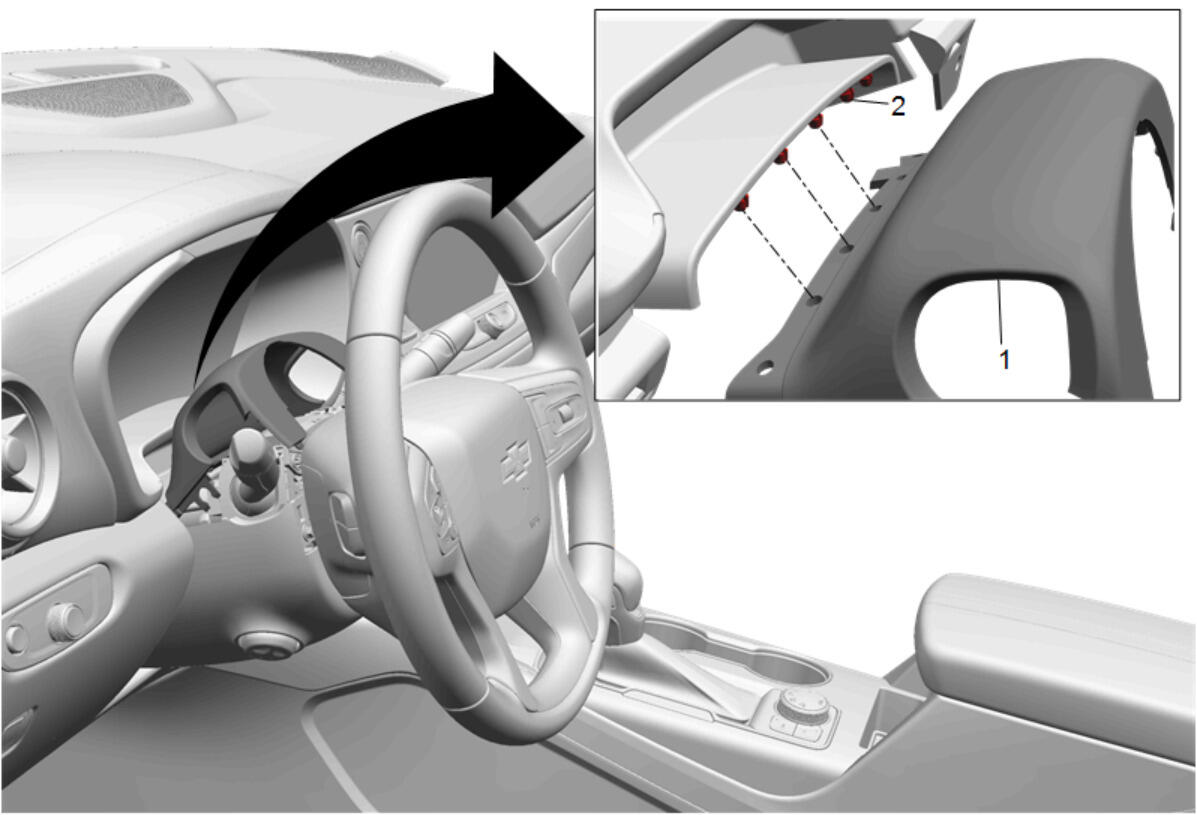

Instrument Panel Knee Bolster (1) - Install - Instrument Panel Knee Bolster Replacement
