Front Floor Console Upper Panel Replacement

Courtesy of GENERAL MOTORS COMPANY

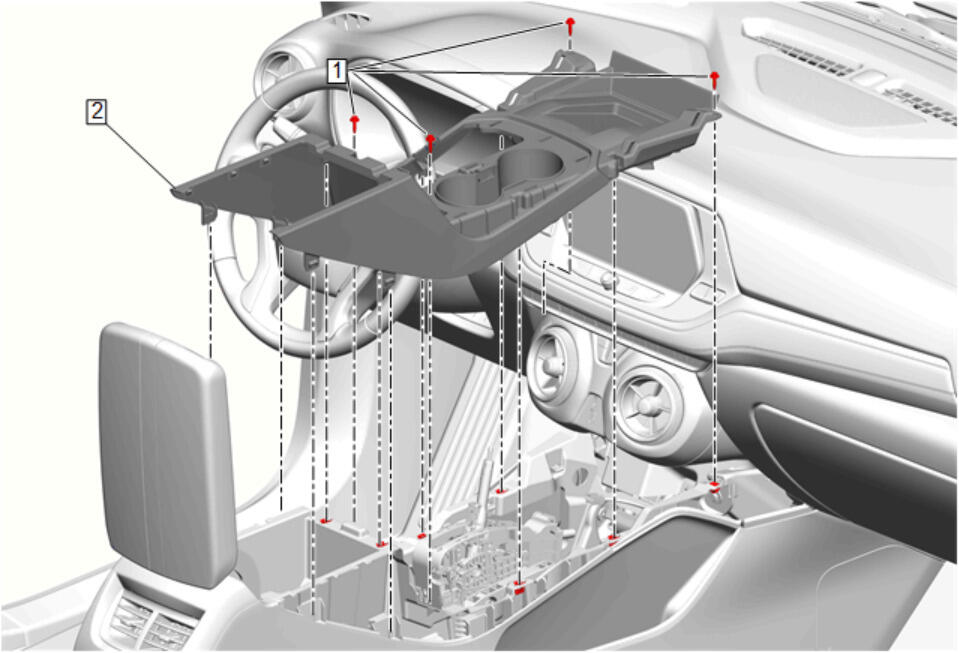

Callout	Component Name
Preliminary Procedures Front Floor Console Side Trim Panel Replacement - Right Side Front Floor Console Side Trim Panel Replacement - Left Side Front Floor Console Trim Plate Replacement
1	Front Floor Console Upper Panel Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Floor Console Upper Panel Procedure Using a flat-bladed plastic trim tool, release the retaining clips. Disconnect the electrical connector. Transfer components as necessary.
