Front Floor Console Trim Plate Replacement

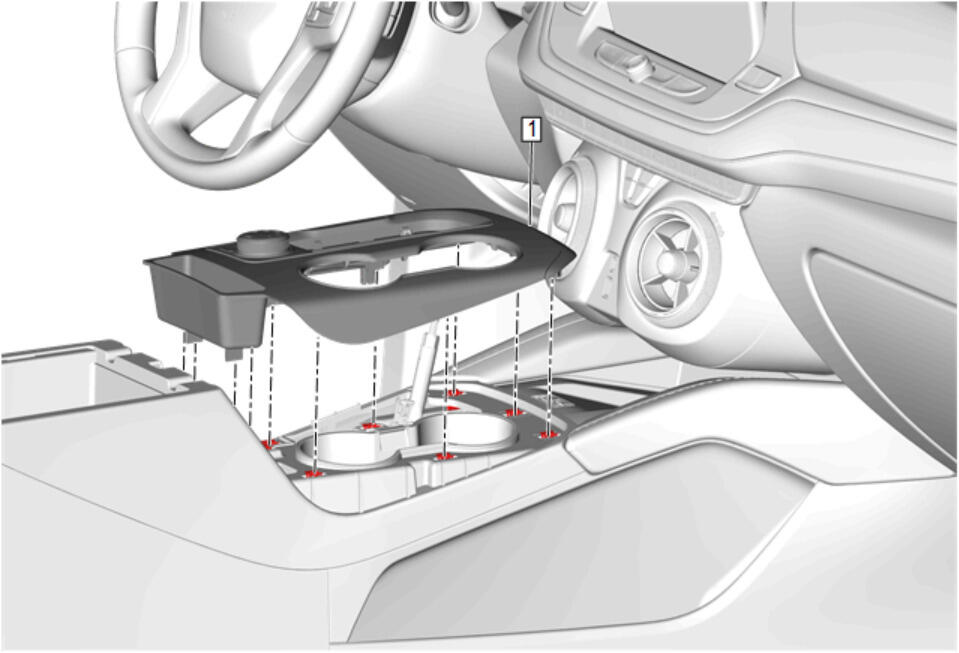

GM5126582Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Transmission Control Lever Knob Replacement
1 Front Floor Console Trim Plate

Procedure

  1. Using a flat-bladed plastic trim tool, release the retaining clips.
  2. Disconnect the electrical connector.
  3. Transfer components as necessary.
