Installation Procedure

  1. Connect the electrical connector.

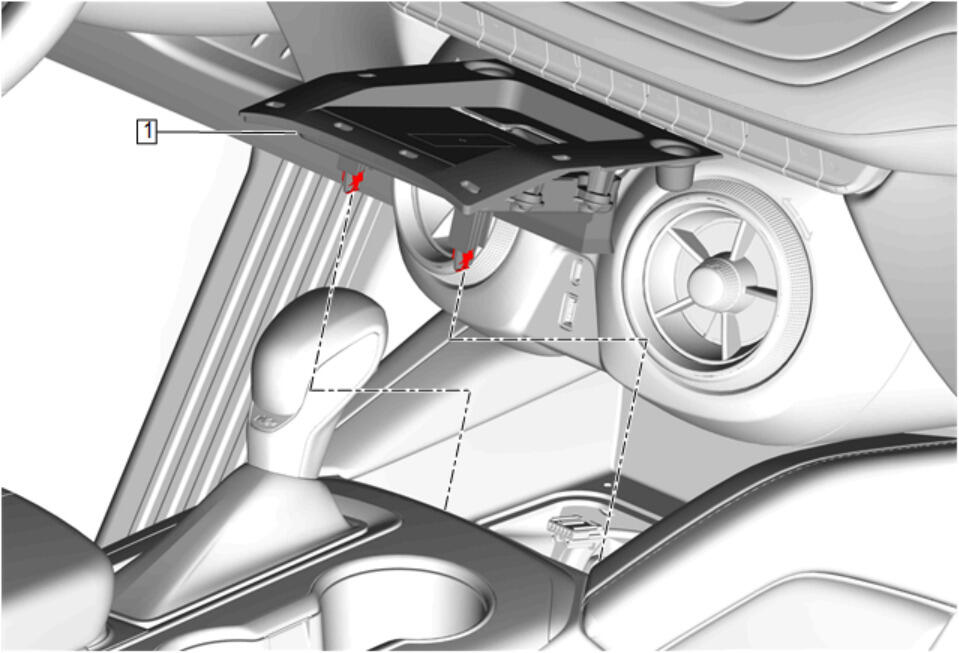

  2. GM5128284Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Housing (1) - Install

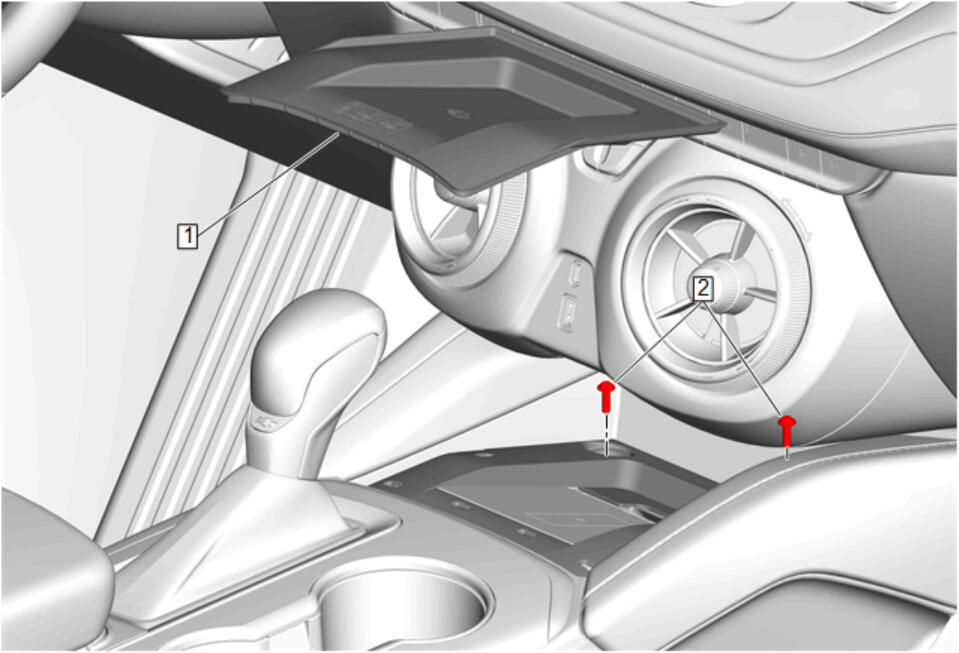

  3. GM5128282Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Front Floor Console Housing Bolt (2) - Install and tighten [2x] 1.0 N.m (9 lb in)

  4. Front Floor Console Front Compartment Liner (1) - Install
