Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

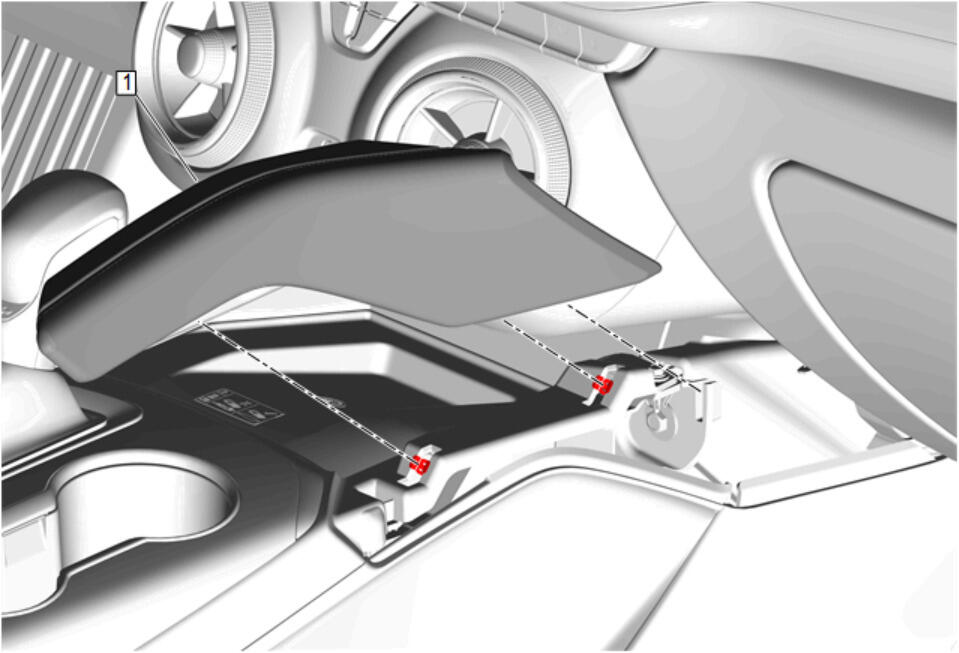

Front Floor Console Side Trim Panel - Right Side (1) - Remove - Front Floor Console Side Trim Panel Replacement - Right Side
Courtesy of GENERAL MOTORS COMPANY

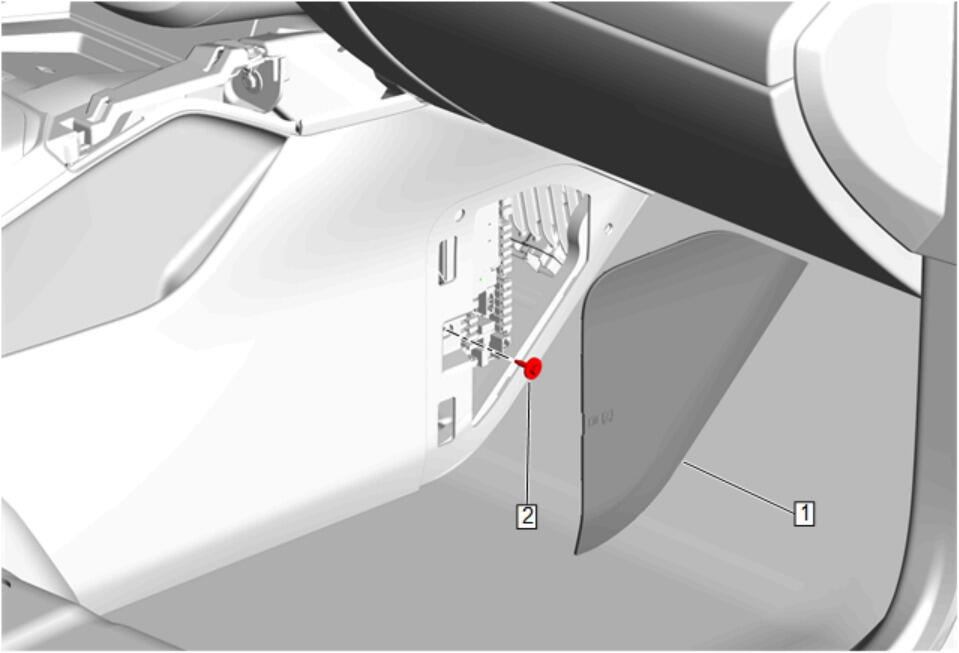

Instrument Panel Wiring Harness Junction Block Cover (1) - Remove
Front Floor Console Extension Bolt (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Move the front seat to access the retainers.

Starting from the rear, use a flat bladed plastic trim tool to aid in the removal of the panel (1) from the front floor console.

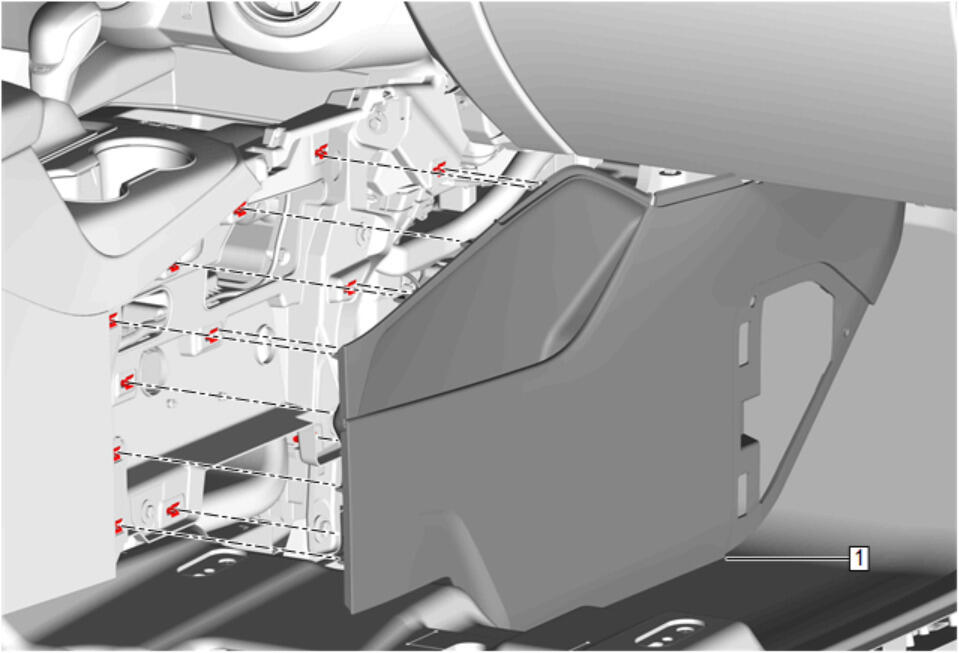

Front Floor Console Extension Panel-Right Side (1) - Remove
