Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

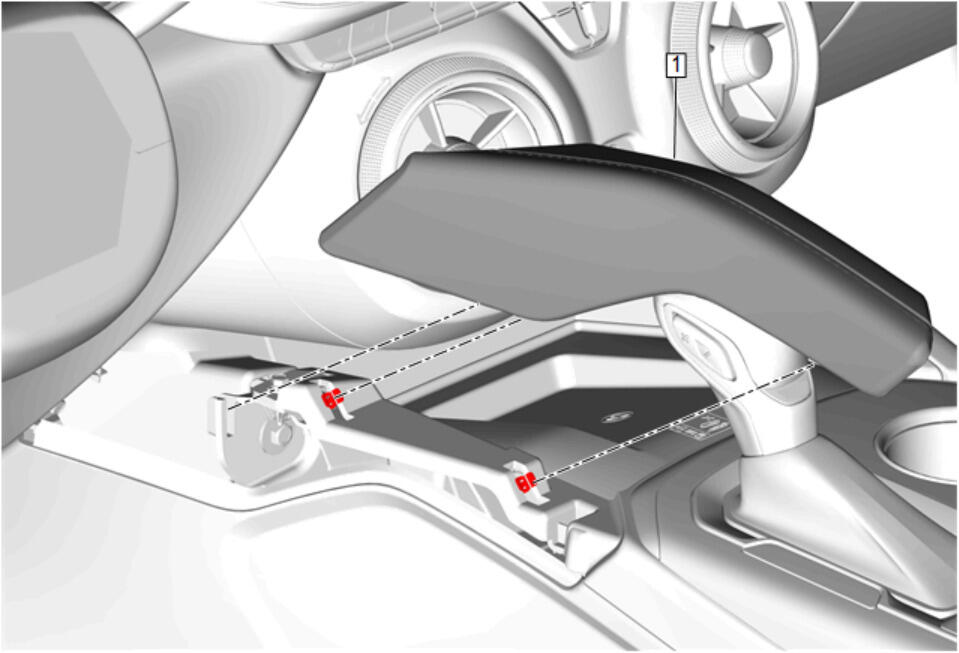

Front Floor Console Extension Panel-Left Side (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

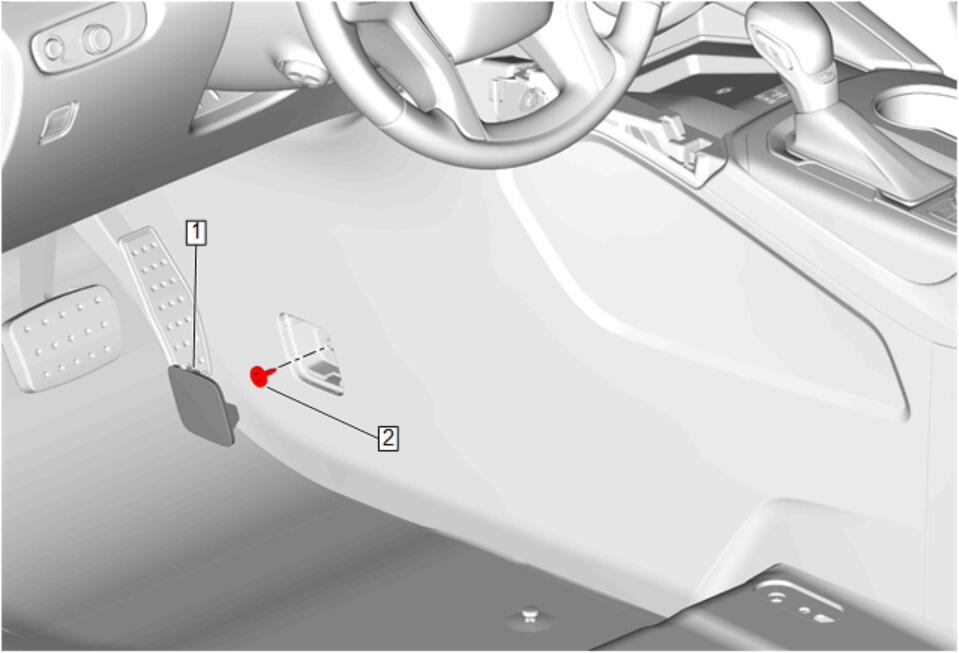

Front Floor Console Extension Bolt (2) - Install and tighten 2.5 N.m (22 lb in)
Front Floor Console Bolt Access Hole Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

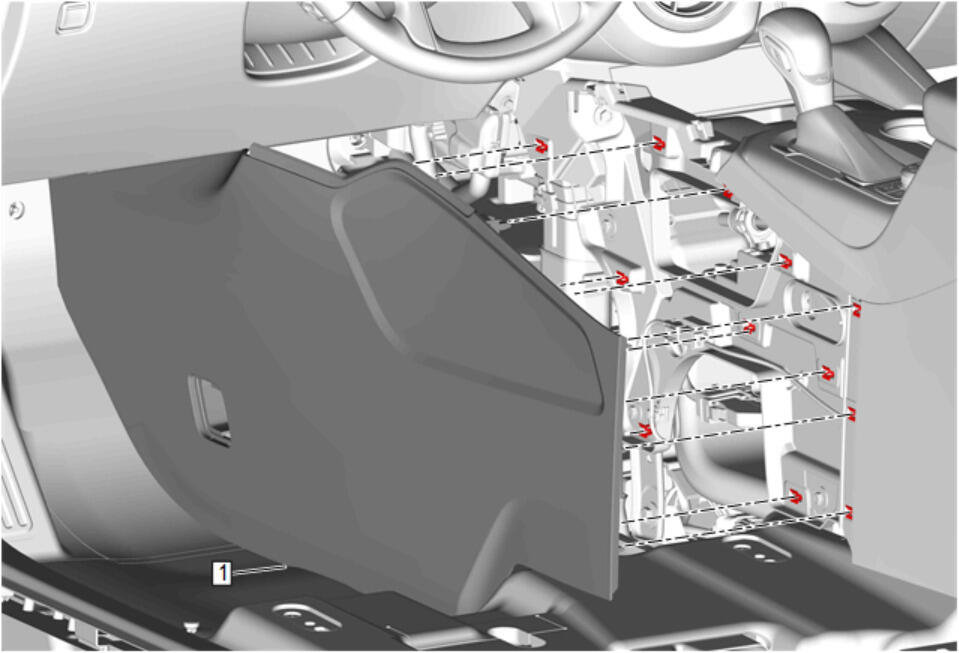

Front Floor Console Side Trim Panel - Left Side (1) - Install - Front Floor Console Side Trim Panel Replacement - Left Side
