Installation Procedure

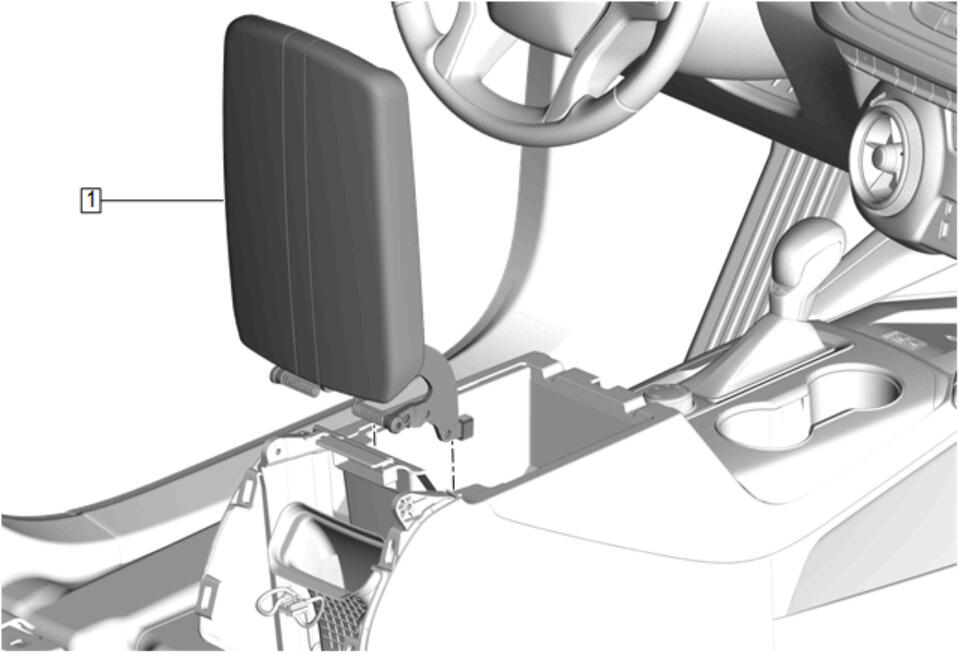

  1. GM5125556Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Armrest (1) - Install

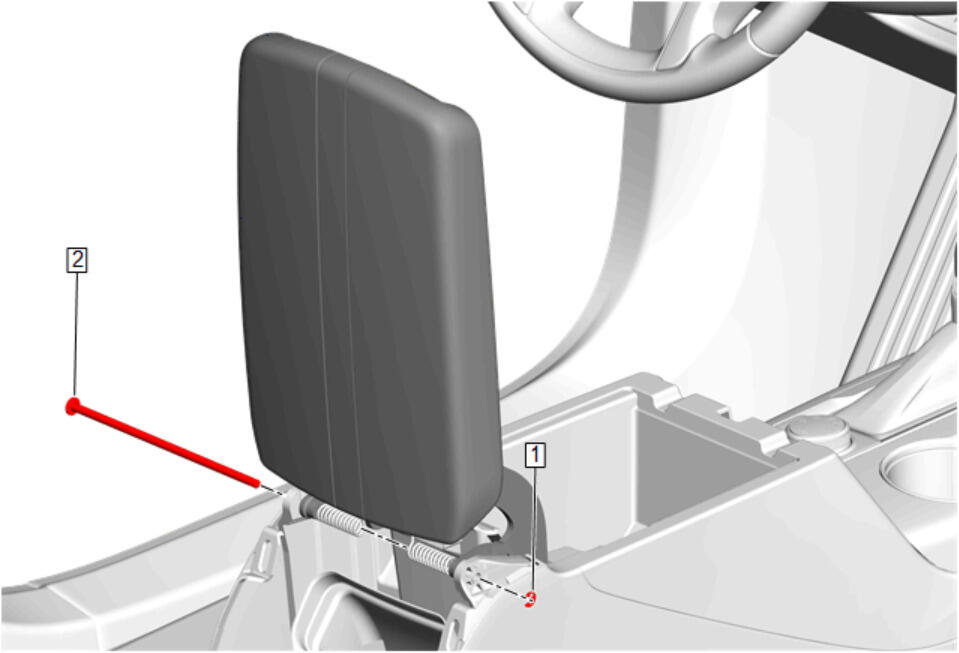

  2. GM5125555Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Armrest Pivot Pin (2) - Install

  3. Front Floor Console Armrest Hinge Clip (1) - Install

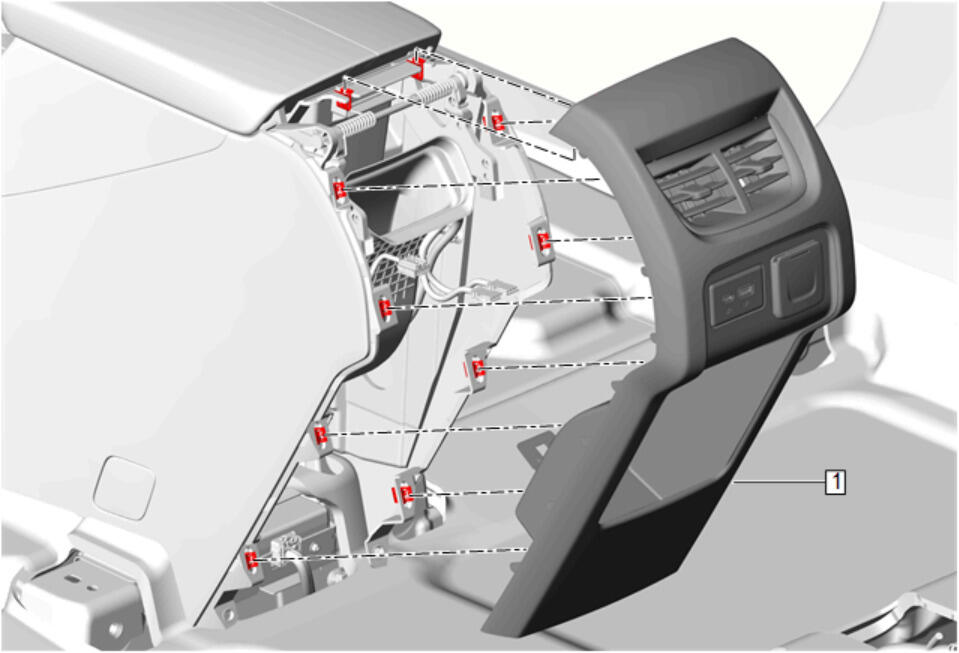

  4. GM5118117Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Trim Panel (1) - Install - Front Floor Console Rear Trim Panel Replacement

  5. Return the front seat to the original position.
