Front Floor Console Armrest Latch Replacement

Courtesy of GENERAL MOTORS COMPANY

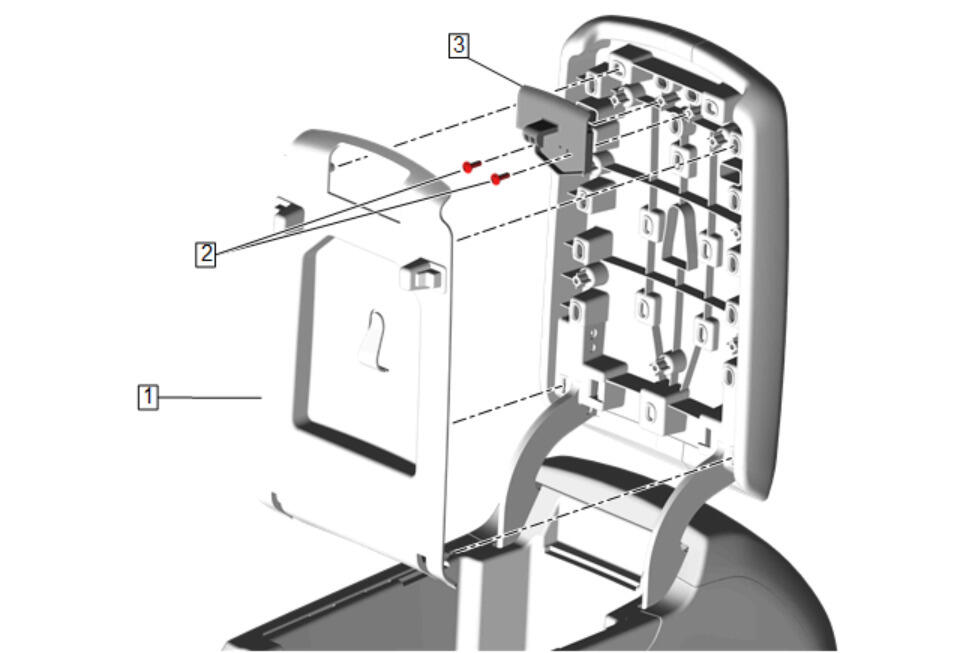

Callout	Component Name
Preliminary Procedure  Open the armrest cover.
1	Front Floor Console Inner Armrest Procedure  Using a flat-bladed plastic trim tool, release the retainer tabs.
2	Front Floor Compartment Door Latch Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten  1 N.m (9 lb in)
3	Front Floor Console Armrest Latch
