Removal Procedure

  1. GM5128880Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Extension (1) - Remove - Instrument Panel Extension Replacement

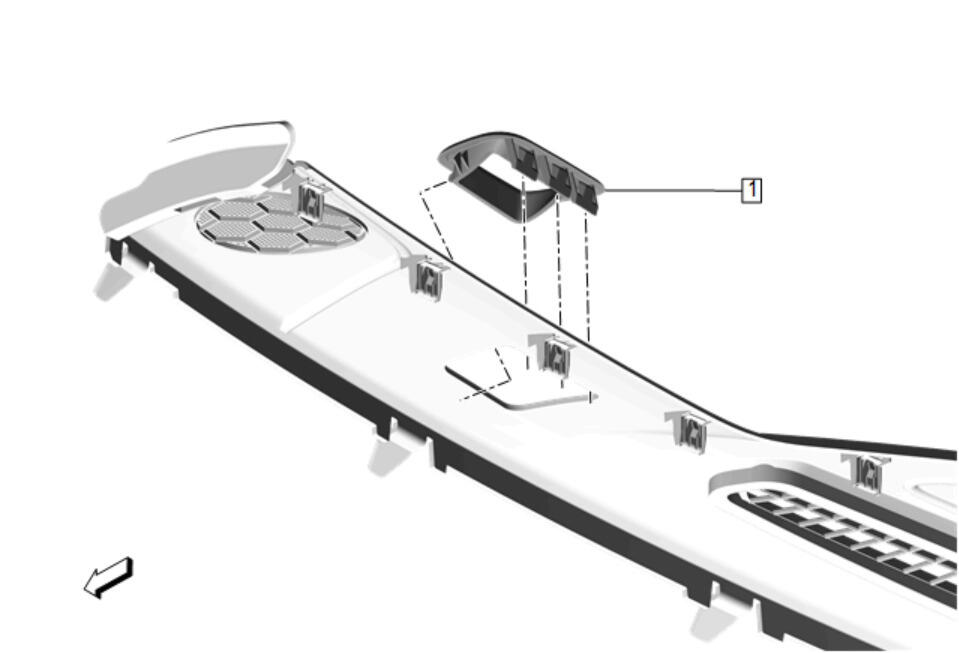

  2. GM5129272Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Use a plastic trim tool if necessary.

    Forward Collision Alert Display Bezel (1) - Remove
