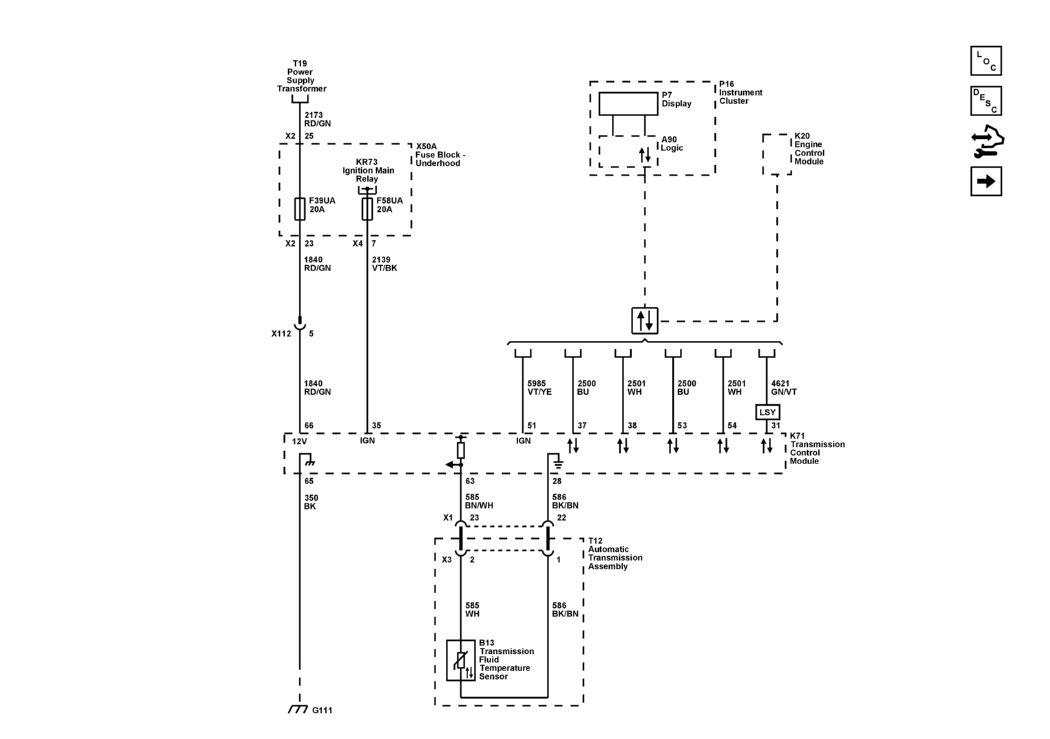

Power, Ground, Serial Data, MIL and Fluid Temperature

GM5440299

Courtesy of GENERAL MOTORS COMPANY
