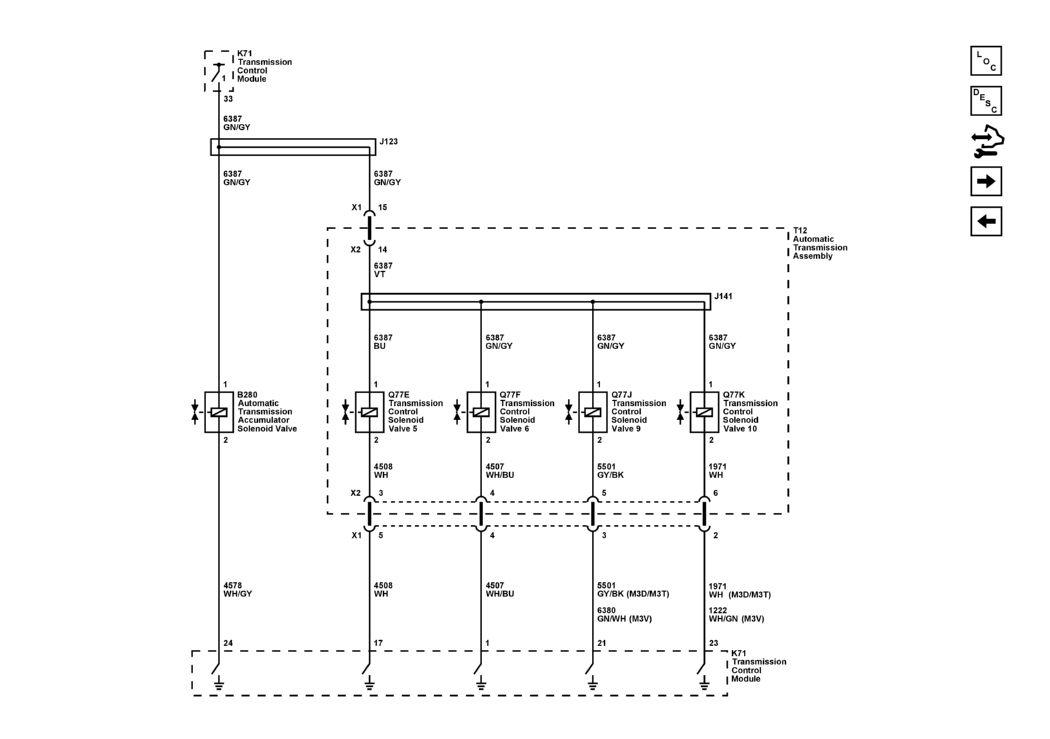

Home >> Chevrolet >> 2021 >> Blazer L >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission - 9T50 (M3D), 9T60 (M3T) Or 9T65 (M3V) - Schematic Wiring Diagrams >> Schematic Wiring Diagrams >> Automatic Transmission Controls Wiring Schematics >> Control Solenoid Valves (1 of 2)
