Installation Procedure

  1. GM4707862Courtesy of GENERAL MOTORS COMPANY

    Install the transmission mount (4).

    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the transmission mount bolts (1, 2, 3) and tighten to 58 N.m (43 lb ft).

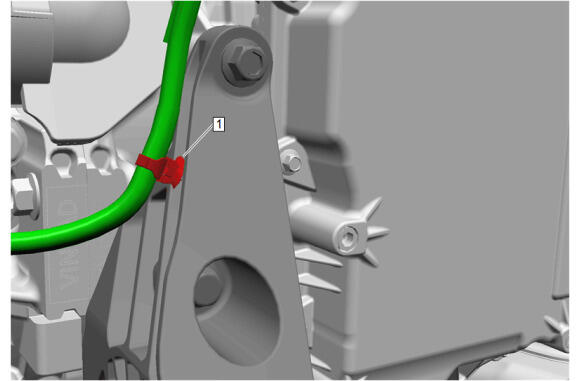

  3. GM5638828Courtesy of GENERAL MOTORS COMPANY

    Position the wiring harness as necessary then install the wiring harness retainer (1).

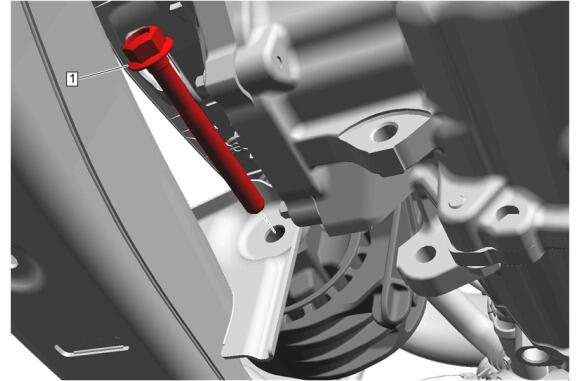

  4. GM5638830Courtesy of GENERAL MOTORS COMPANY

    Install the transmission mount through bolt (1) and tighten to 100 N.m (74 lb ft).

  5. Remove the jack from the transmission.
  6. Lower the vehicle. Lifting and Jacking the Vehicle
