Installation Procedure

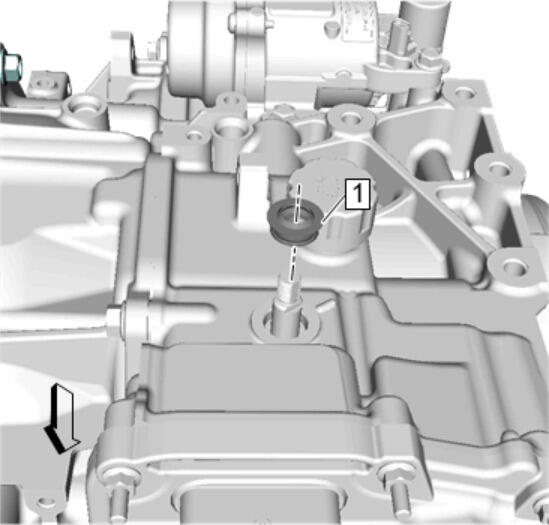

  1. GM4876788Courtesy of GENERAL MOTORS COMPANY

    Install the manual shaft seal (1) using DT-49101  seal installer.

  2. Install the automatic transmission range selector lever cable lever. Automatic Transmission Range Selector Lever Cable Lever Replacement
  3. Install the battery tray. Battery Tray Replacement
