Installation Procedure
Install the control valve body cover (1) and gasket.
-
Courtesy of GENERAL MOTORS COMPANY
NOTE:The number (1) bolts are stud bolts.
Hand start the control valve body cover bolts (1, 2).
- Install the control valve body cover bolts. Tighten the bolts in sequence to 11 N.m (97 lb in).
- Install the body ground cable and wiring harness assembly to the front of transmission.
Transmission Fluid Cooler Outlet Pipe (2) @ Transmission - Connect - Transmission Fluid Cooler Outlet Pipe Replacement (LGX, with V08) , or Transmission Fluid Cooler Outlet Pipe Replacement (LCV, LGX, without V08)
Transmission Fluid Cooler Inlet Pipe (1) @ Transmission - Connect - Transmission Fluid Cooler Inlet Pipe Replacement (LCV, LGX, without V08) , or Transmission Fluid Cooler Inlet Pipe Replacement (LGX, with V08)
Automatic Transmission Fluid Cooling Exchanger (2) - Install - Automatic Transmission Fluid Cooling Exchanger Replacement (LSY)

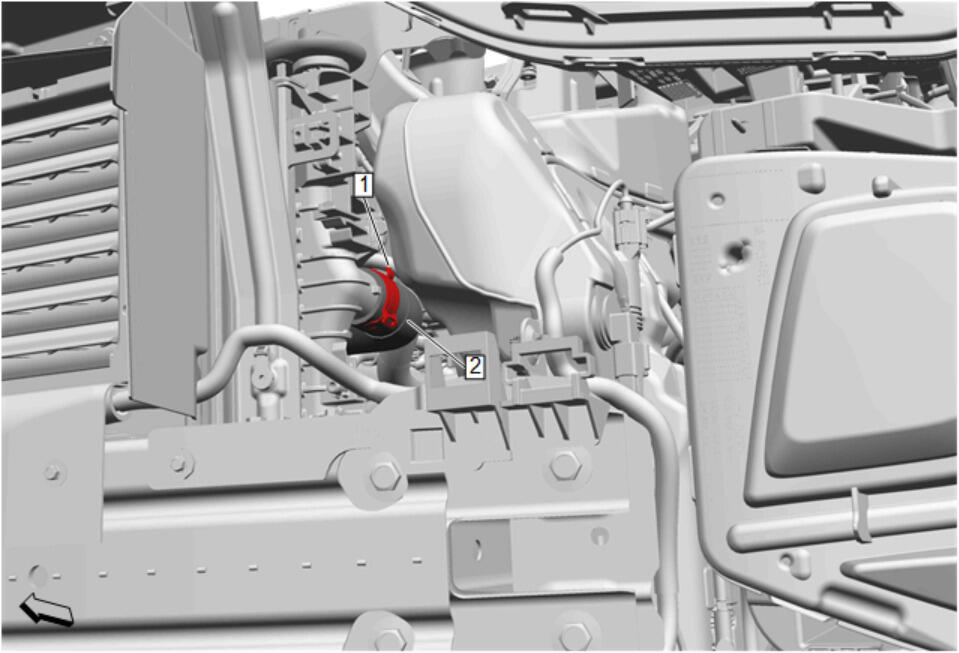

Auxiliary Radiator Inlet Hose (2) - Install Radiator Inlet Hose Replacement (LSY)
Connect the control valve body transmission control module electrical connector (1), then clip the wiring harness to the cover.
- Fill the transmission with correct fluid. Adhesives, Fluids, Lubricants, and Sealers
- Check transmission fluid level. Transmission Fluid Level and Condition Check
Install the electrical harness bracket (2) to the control valve body cover.
- Install the electrical harness bracket nuts (1) and tighten the bolts to 9 N.m (80 lb in).

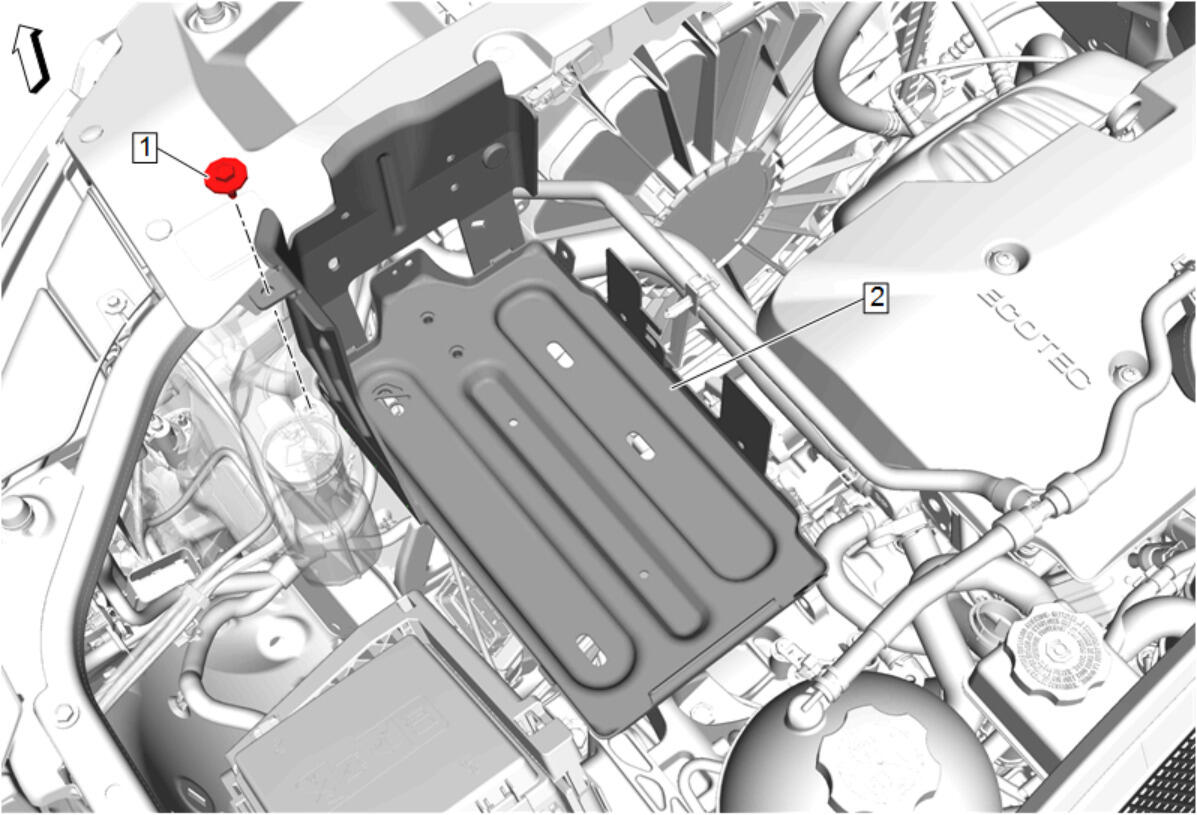

Install the battery tray. Battery Tray Replacement
- Check for leaks.
Refer to Fastener Caution .
Install all control valve body cover bolts and stud bolts by hand then torque all bolts in sequence.
