Automatic Transmission Range Selector Lever Cable Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

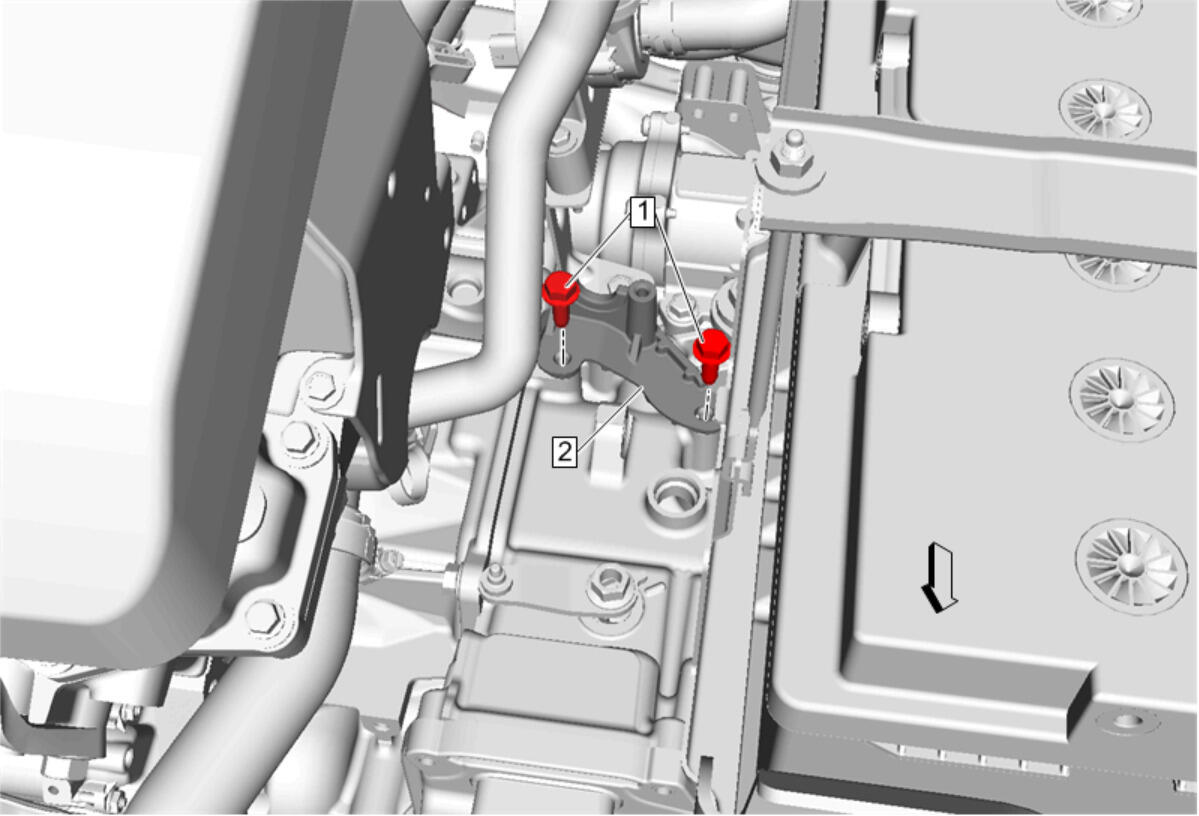

Callout	Component Name
Preliminary Procedures Set the park brake and chock the wheels. Remove the automatic transmission range selector lever cable from the bracket and position out of the way. Automatic Transmission Range Selector Lever Cable Replacement
1	Transmission Range Selector Lever Cable Bracket Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Transmission Range Selector Lever Cable Bracket Procedure Adjust the cable. Range Selector Lever Cable Adjustment

Callout

Component Name

Preliminary Procedures

Set the park brake and chock the wheels.
Remove the automatic transmission range selector lever cable from the bracket and position out of the way. Automatic Transmission Range Selector Lever Cable Replacement

Transmission Range Selector Lever Cable Bracket Bolt [2x]

CAUTION:

Tighten
22 N.m (16 lb ft)

Transmission Range Selector Lever Cable Bracket
Procedure
Adjust the cable. Range Selector Lever Cable Adjustment
