Control Valve Solenoid Body Wiring Harness Installation
Control Valve Solenoid Body Wiring Harness Installation

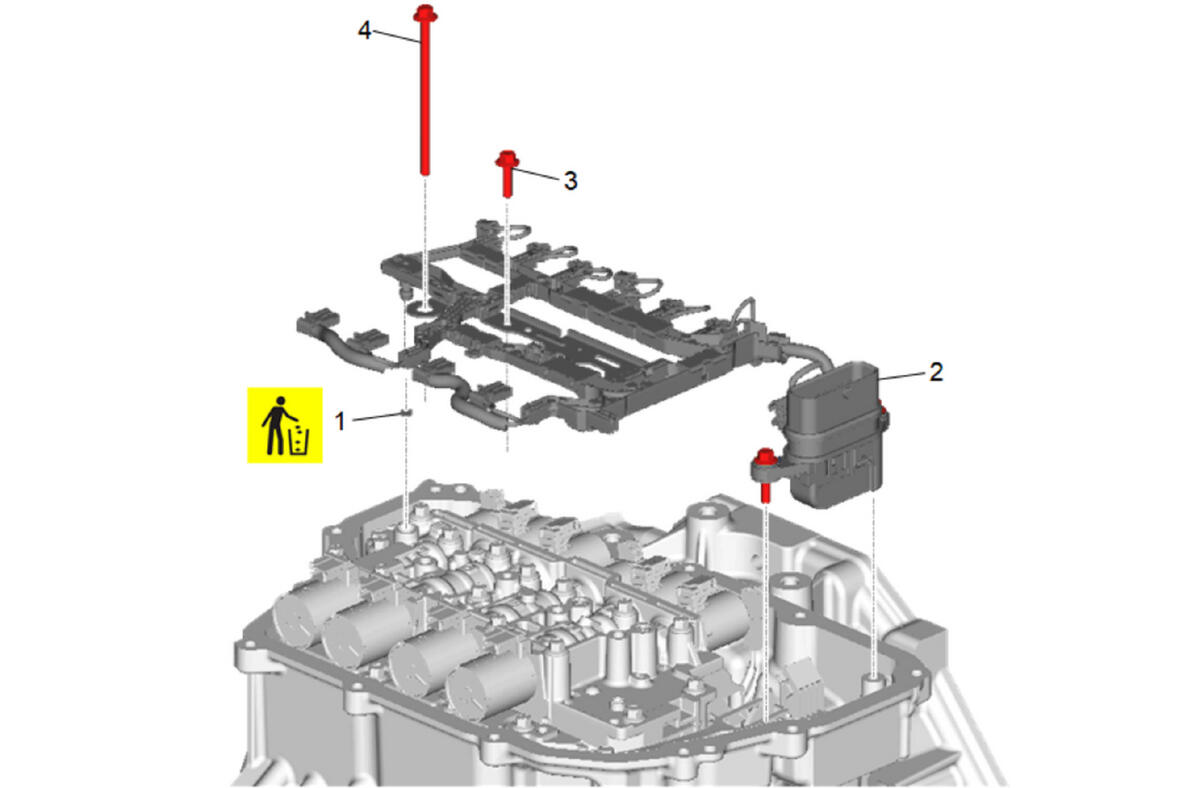

| Callout | Component Name |
|---|---|
| 1 | Automatic Transmission Fluid Temperature Sensor Seal Procedure Install a NEW seal. Do NOT reuse the old seal. |
| 2 | Automatic Transmission Wiring Harness Procedure Ensure you connect all the connectors to the valve body. Tighten 8 N.m (71 lb in)
NOTE:
The bolts are captured with harness. |
| 3 | Control Valve Solenoid Body Bolt Tighten 9 N.m (80 lb in) |
| 4 | Control Valve Body Bolt [3x] Procedure Hand tighten and follow torque sequence below. |
