Control Valve Solenoid Body Disassemble
 Courtesy of GENERAL MOTORS COMPANY
|

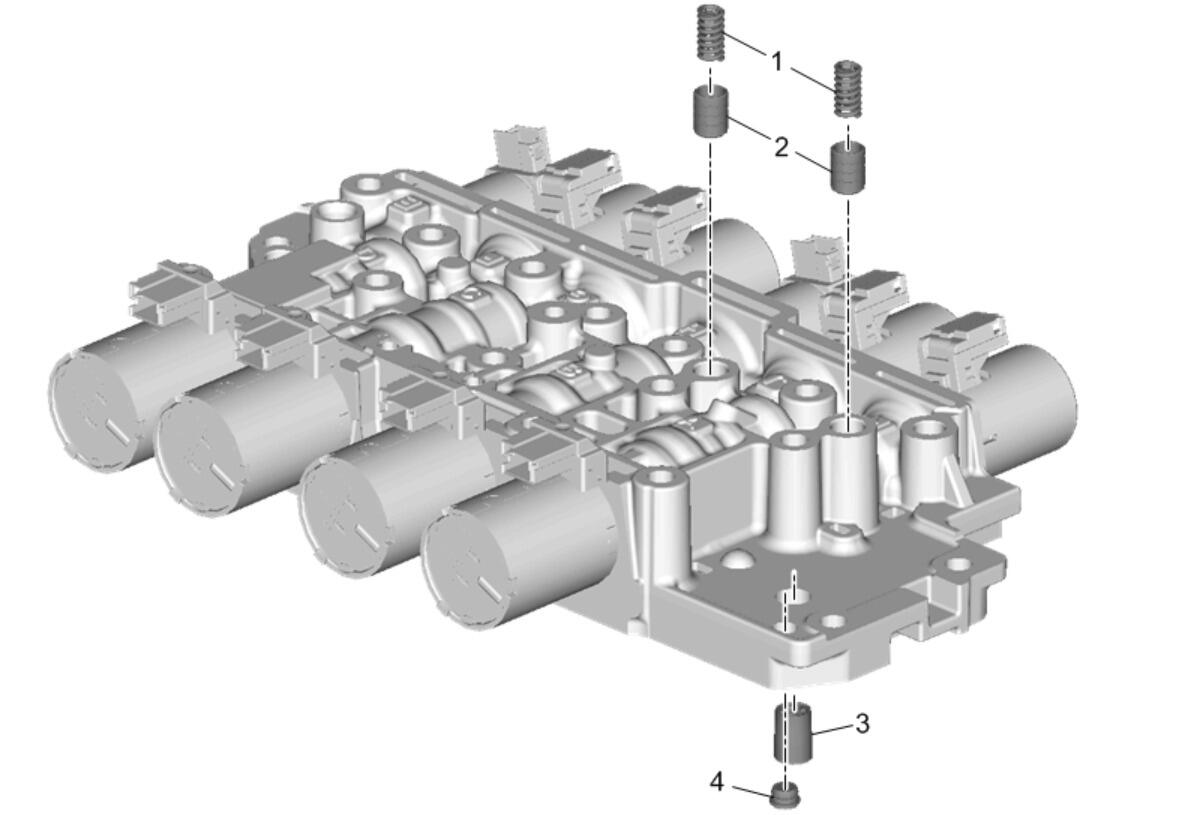

Control Valve Solenoid Body Disassemble
| Callout |
Component Name |
| 1 |
Variable Feed Solenoid Clutch Accumulator Piston Spring [2x] |
| 2 |
Variable Feed Solenoid Clutch Accumulator Piston [2x] |
| 3 |
Control Valve Channel Plate Ball Check Valve Spring |
| 4 |
Variable High and 2-3-4 Clutch Housing Valve |
