Front Cradle Rear Brace Replacement

Courtesy of GENERAL MOTORS COMPANY

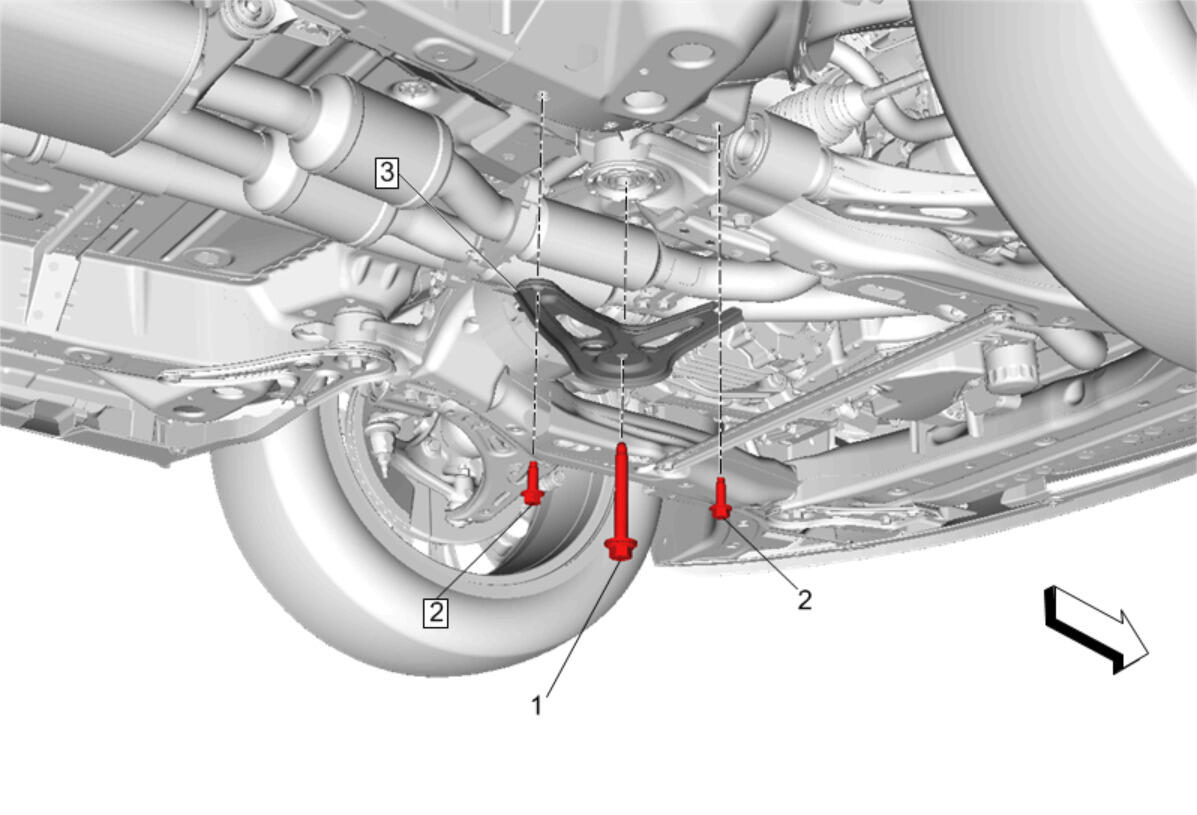

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Lifting and Jacking the Vehicle Support the front cradle with a suitable jack.
1	Drivetrain and Front Suspension Cradle Bolt CAUTION: Refer to Fastener Caution CAUTION: This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component. NOTE: Replace with a NEW bolt. Tighten First Pass: 160 N.m 118 lb ft) Final Pass: (60 - 75 degrees)
2	Front Cradle Mount Bolt Bracket Bolt [2x] Tighten 58 N.m (43 lb ft)
3	Front Cradle Rear Brace
