Ambient Air Temperature Sensor Replacement

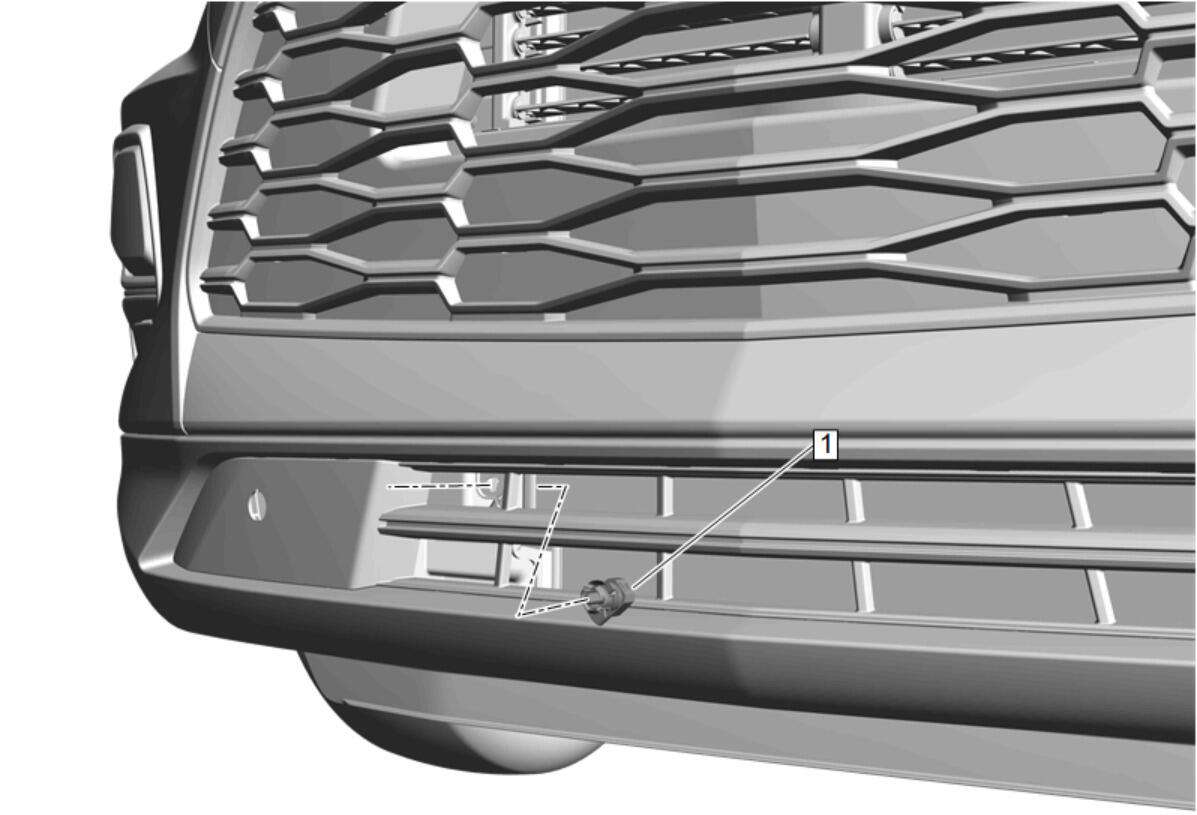

GM5120289Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Ambient Air Temperature Sensor

Procedure

  1. Disconnect the electrical connector.
  2. Squeeze the ambient air temperature sensor retaining tabs to remove from the front lower grille.
