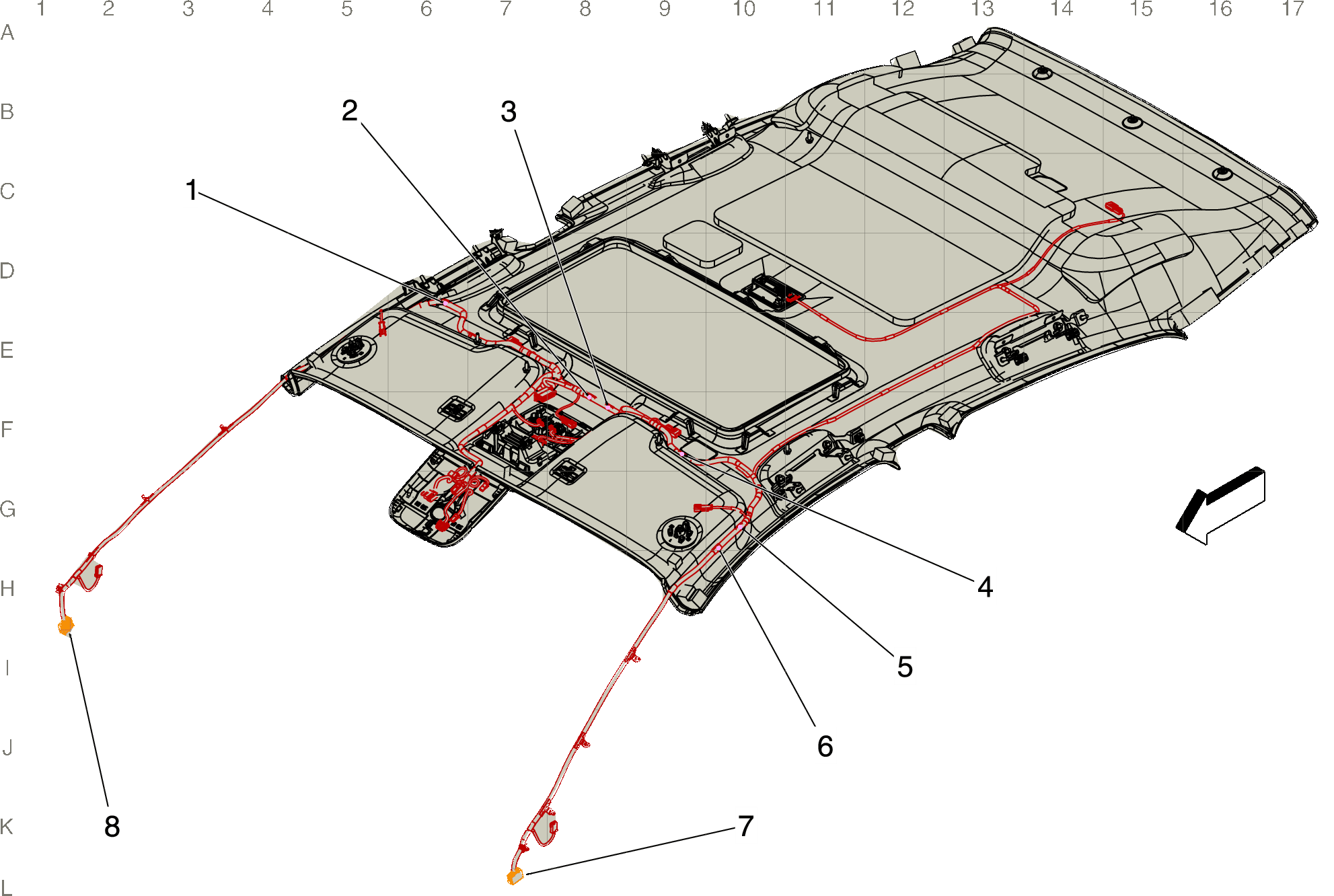

Headliner Harness Routing (Chevrolet)
Headliner Harness Routing (Chevrolet)
| Harness Name | Callout |
|---|---|
| J325 Headliner Harness | 1 |
| J362 Headliner Harness | 2 |
| J347 Body Harness | 3 |
| J348 Headliner Harness | 4 |
| J339 Headliner Harness | 5 |
| J355 Headliner Harness | 6 |
| X208 Headliner Harness to Body Harness X208 Headliner Harness to Body Harness | 7 |
| X209 Headliner Harness to Body Harness X209 Headliner Harness to Body Harness | 8 |
