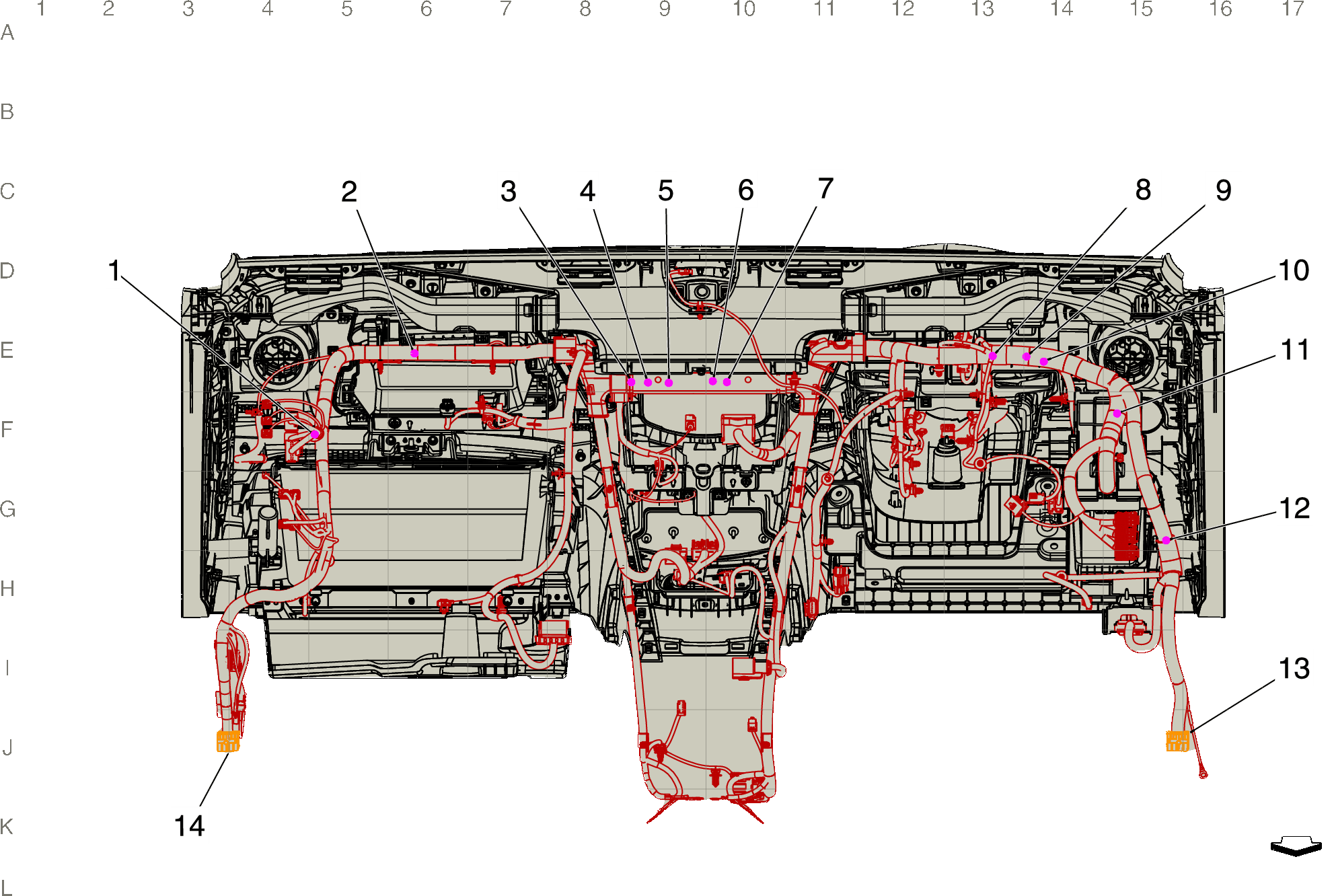

Instrument Panel Harness Routing - Overview (Buick)
Instrument Panel Harness Routing - Overview (Buick)
| Harness Name | Callout |
|---|---|
| J201 Instrument Panel Harness | 1 |
| J225 Body Harness | 2 |
| J202 Instrument Panel Harness | 3 |
| J207 Instrument Panel Harness | 4 |
| J213 Instrument Panel Harness | 5 |
| J214 Instrument Panel Harness | 6 |
| J262 Instrument Panel Harness | 7 |
| J229 Instrument Panel Harness | 8 |
| J227 Instrument Panel Harness | 9 |
| J216 Instrument Panel Harness | 10 |
| J215 Instrument Panel Harness | 11 |
| J203 Instrument Panel Harness | 12 |
| X200 Instrument Panel Harness to Body Harness X200 Instrument Panel Harness to Body Harness | 13 |
| X202 Instrument Panel Harness to Body Harness X202 Instrument Panel Harness to Body Harness | 14 |
