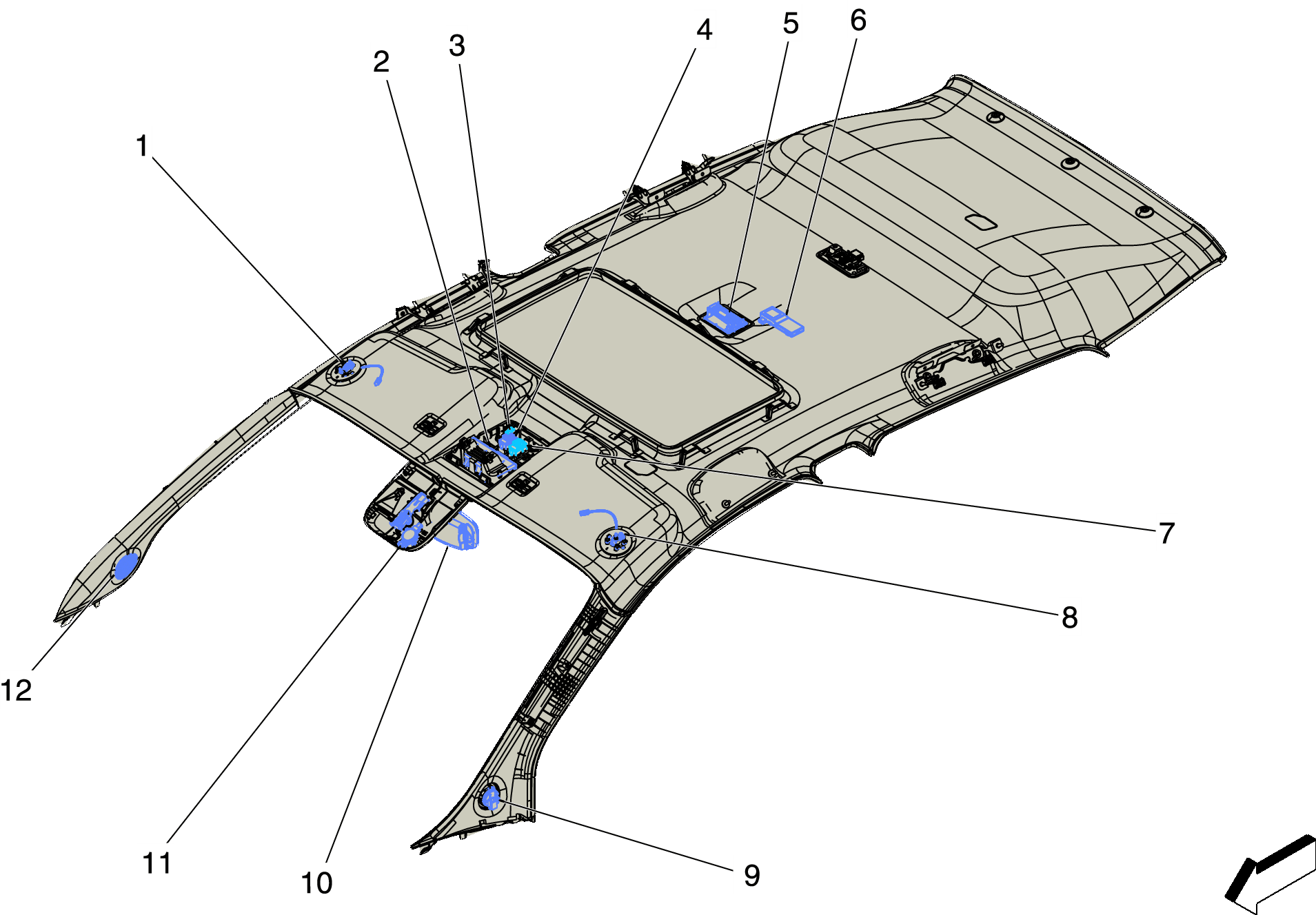

Headliner Components (Chevrolet)
Headliner Components (Chevrolet)
| Component Name | Callout |
|---|---|
| A3R Sunshade - Right (D6I) A3R Sunshade - Right | 1 |
| E37A Dome/Reading Lamps E37A Dome/Reading Lamps | 2 |
| B24 Mobile Telephone Microphone B24 Mobile Telephone Microphone | 3 |
| S88 Sunroof Tilt Switch (CF5) S88 Sunroof Tilt Switch | 4 |
| E37R Dome/Reading Lamps - Rear E37R Dome/Reading Lamps - Rear | 5 |
| K77 Remote Control Door Lock Receiver K77 Remote Control Door Lock Receiver | 6 |
| S72 Sunroof Switch (CF5) S72 Sunroof Switch | 7 |
| A3L Sunshade - Left (D6I) A3L Sunshade - Left | 8 |
| P19AH Speaker - Right Front Door P19AH Speaker - Right Front Door | 9 |
| A10 Inside Rearview Mirror (DD8/UE1) A10 Inside Rearview Mirror | 10 |
| B174W Frontview Camera - Windshield (UFL) B174W Frontview Camera - Windshield | 11 |
| P19H Speaker - Left Front Tweeter P19H Speaker - Left Front Tweeter | 12 |
