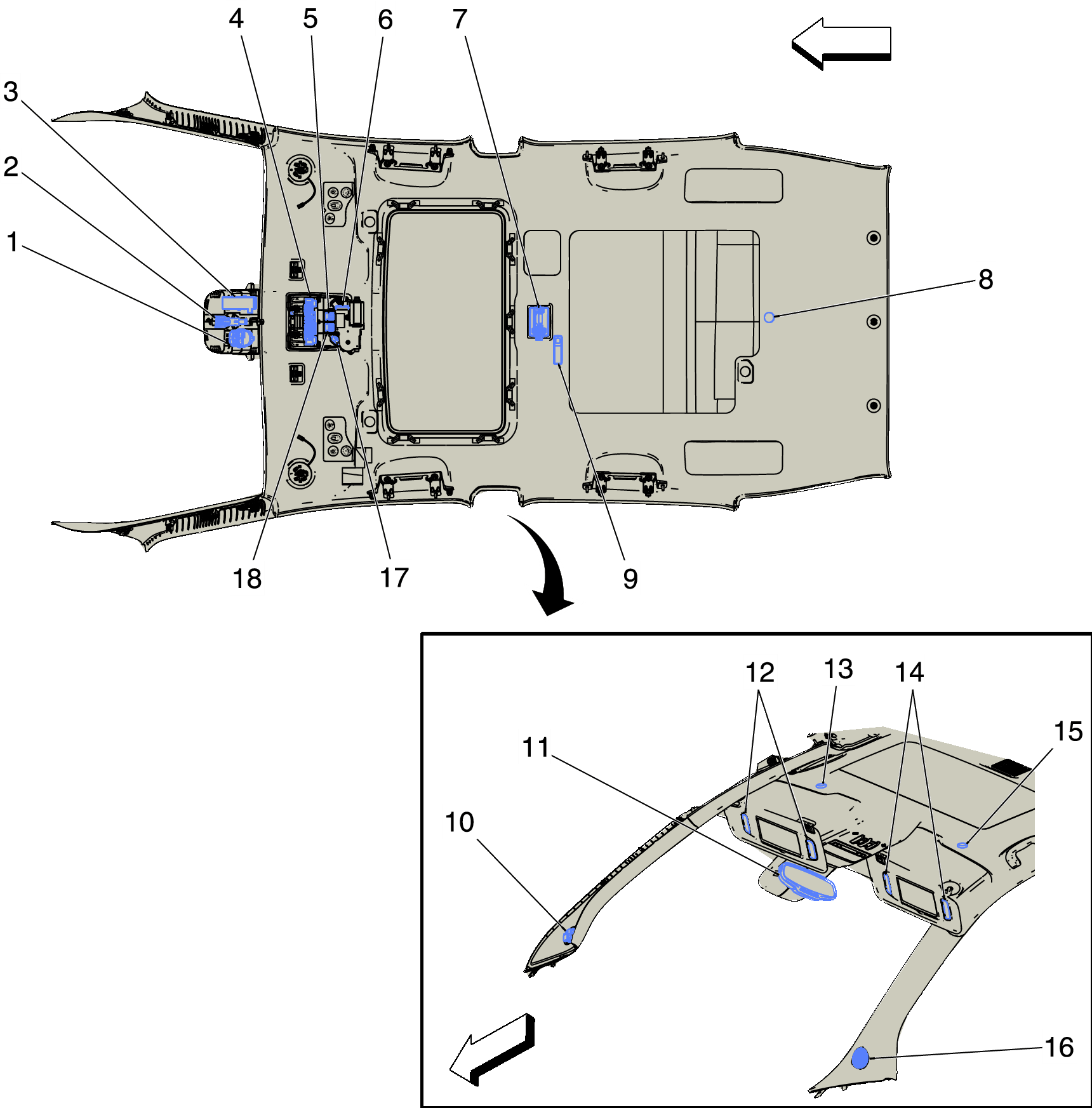

Headliner Components (Buick)
Headliner Components (Buick)
| Component Name | Callout |
|---|---|
| B224 Multifunction Windshield Sensor (CE1+UFL) B224 Multifunction Windshield Sensor | 1 |
| B174W Frontview Camera - Windshield (UFL) B174W Frontview Camera - Windshield (UFL) | 2 |
| B160 Windshield Temperature and Inside Moisture Sensor (ASV-UFL) B160 Windshield Temperature and Inside Moisture Sensor | 3 |
| E37A Dome/Reading Lamps E37A Dome/Reading Lamps | 4 |
| S88 Sunroof Tilt Switch (CF5) S88 Sunroof Tilt Switch | 5 |
| K61 Sunroof Control Module (CF5) K61 Sunroof Control Module | 6 |
| E37R Dome/Reading Lamps - Rear E37R Dome/Reading Lamps - Rear | 7 |
| B77R Radio Volume Compensator Interior Noise Microphone - Rear B77R Radio Volume Compensator Interior Noise Microphone - Rear | 8 |
| K77 Remote Control Door Lock Receiver K77 Remote Control Door Lock Receiver | 9 |
| P19H Speaker - Left Front Tweeter P19H Speaker - Left Front Tweeter | 10 |
| A10 Inside Rearview Mirror (DD8) A10 Inside Rearview Mirror | 11 |
| A3L Sunshade - Left A3L Sunshade - Left | 12 |
| B77LF Radio Volume Compensator Interior Noise Microphone - Left Front B77LF Radio Volume Compensator Interior Noise Microphone - Left Front | 13 |
| A3R Sunshade - Right A3R Sunshade - Right | 14 |
| B77RF Radio Volume Compensator Interior Noise Microphone - Right Front B77RF Radio Volume Compensator Interior Noise Microphone - Right Front | 15 |
| P19V Speaker - Right Front Tweeter P19V Speaker - Right Front Tweeter | 16 |
| B24 Mobile Telephone Microphone B24 Mobile Telephone Microphone | 17 |
| S72 Sunroof Switch (CF5) S72 Sunroof Switch | 18 |
