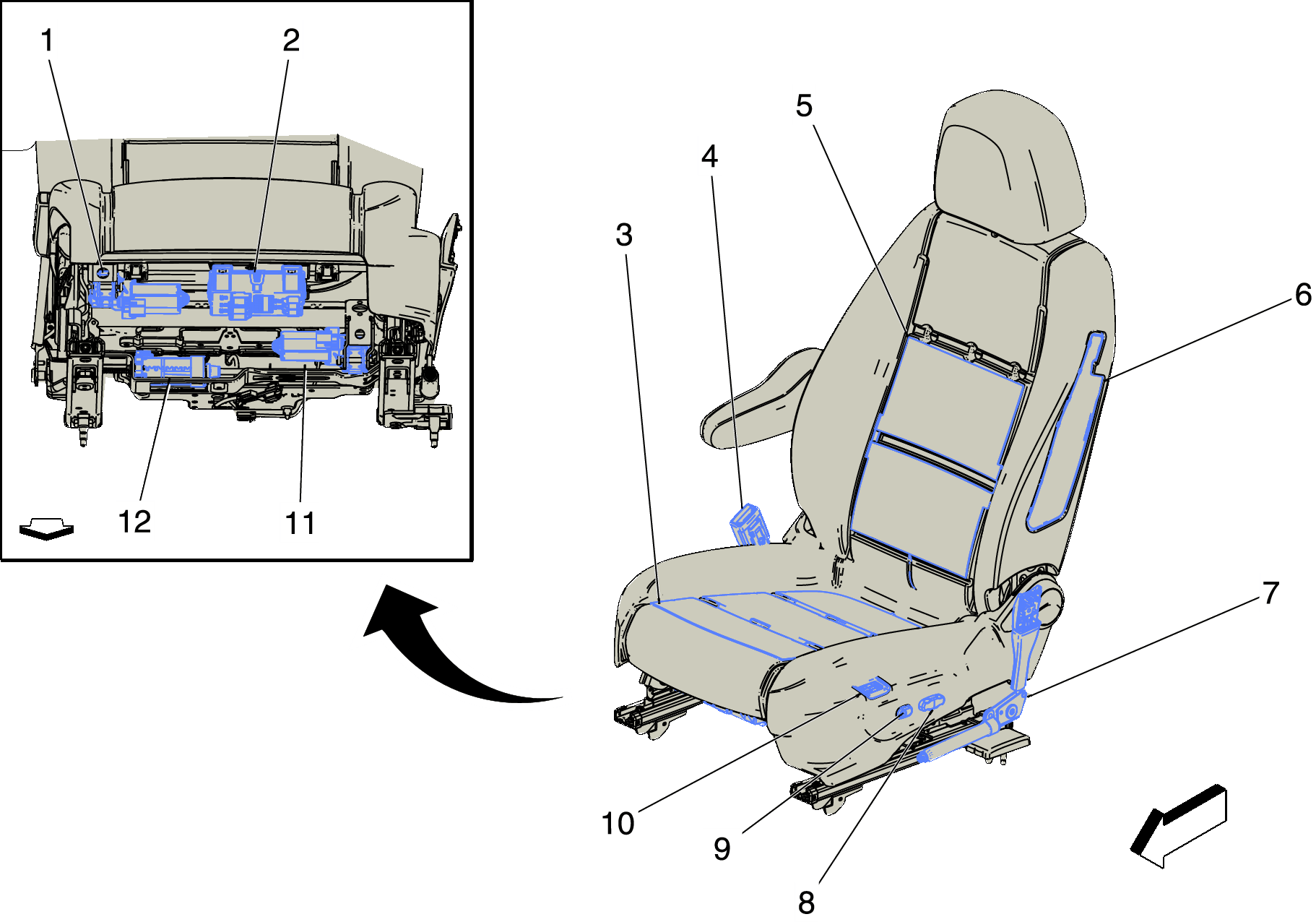

Driver Seat Components (Buick)

Courtesy of GENERAL MOTORS COMPANY

Component Name	Callout
M50D Seat Front Vertical Motor - Driver M50D Seat Front Vertical Motor - Driver	1
K40 Seat Memory Control Module (AAG) K40 Seat Memory Control Module X1 (AAG) , K40 Seat Memory Control Module X2 (AAG) , K40 Seat Memory Control Module X3 (AAG) , K40 Seat Memory Control Module X4 (AAG) , and K40 Seat Memory Control Module X5 (AAG)	2
E14B Seat Heating Element - Driver Cushion (KA1) E14B Seat Heating Element - Driver Cushion X1 (KA1) , and E14B Seat Heating Element - Driver Cushion X2 (KA1)	3
B153D Seat Belt Buckle - Driver B153D Seat Belt Buckle - Driver	4
E14A Seat Heating Element - Driver Back (KA1) E14A Seat Heating Element - Driver Back (KA1)	5
F106D Seat Side Air Bag - Driver F106D Seat Side Air Bag - Driver	6
F113D Seat Belt Anchor Pretensioner - Driver F113D Seat Belt Anchor Pretensioner - Driver	7
S64D Seat Adjuster Switch - Driver S64D Seat Adjuster Switch - Driver (AAG)	8
S65D Seat Lumbar Support Switch - Driver S65D Seat Lumbar Support Switch - Driver	9
S47D Seat Memory Switch - Driver (AAG) S47D Seat Memory Switch - Driver (AAG)	10
M55D Seat Rear Vertical Motor - Driver M55D Seat Rear Vertical Motor - Driver	11
M51D Seat Horizontal Motor - Driver M51D Seat Horizontal Motor - Driver	12
