Headlamp Components - Front (Buick with T4L)
Headlamp Components - Front (Buick with T4L)

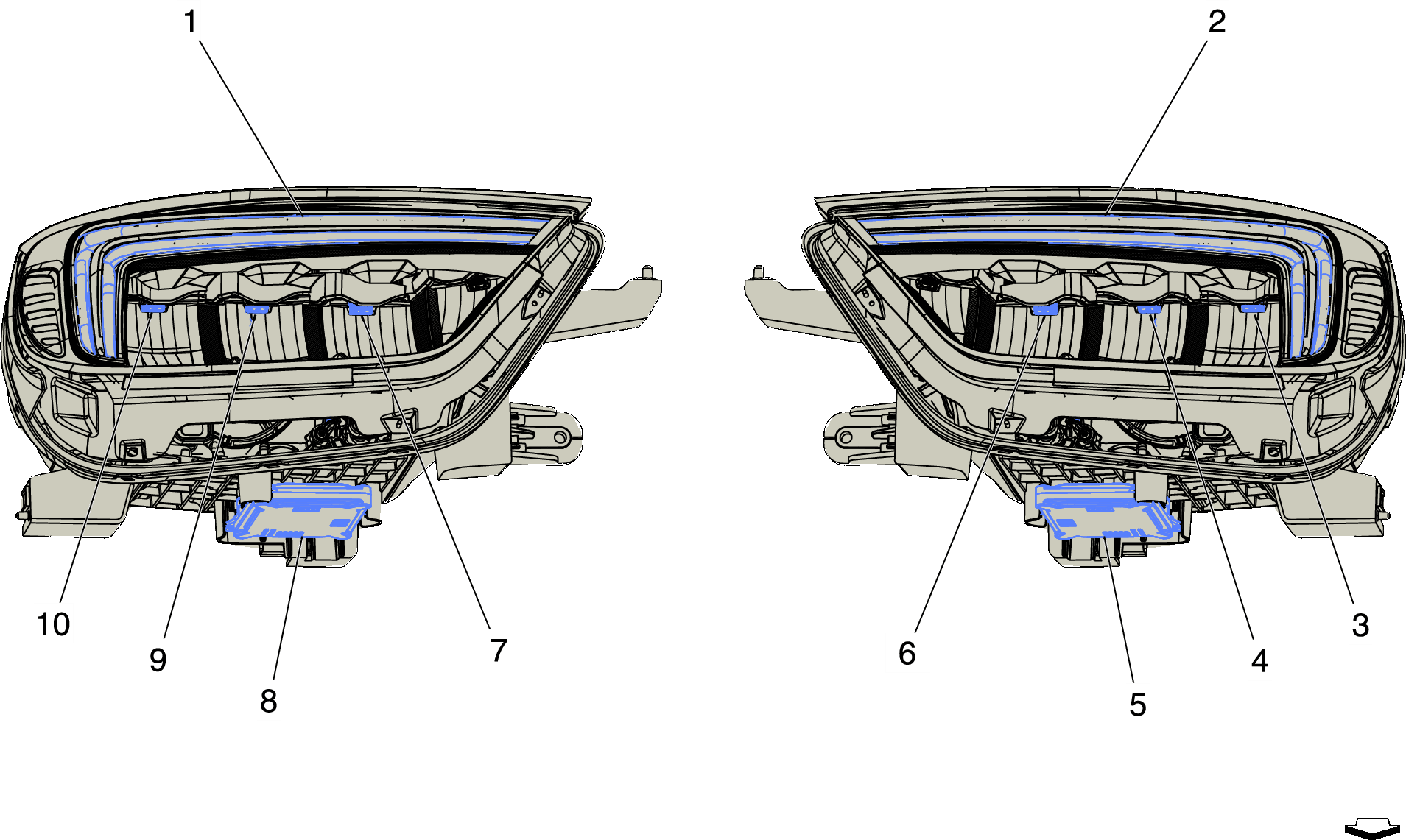

| Component Name | Callout |
|---|---|
| E67R Multifunction LED - Right Headlamp (T4L) E67R Multifunction LED - Right Headlamp (T4L) | 1 |
| E67L Multifunction LED - Left Headlamp (T4L) E67L Multifunction LED - Left Headlamp (T4L) | 2 |
| E4GB Headlamp - Left Low Beam Outer (T4L) E4GB Headlamp - Left Low Beam Outer (T4L) | 3 |
| E4GA Headlamp - Left Low Beam Inner (T4L) E4GA Headlamp - Left Low Beam Inner (T4L) | 4 |
| K189L Headlamp/Cornering Lamp Control Module - Left (T4L) K189L Headlamp/Cornering Lamp Control Module - Left (T4L) | 5 |
| E4E Headlamp - Left High Beam (SBM) E4E Headlamp - Left High Beam | 6 |
| E4F Headlamp - Right High Beam (SBM) E4F Headlamp - Right High Beam | 7 |
| K189R Headlamp/Cornering Lamp Control Module - Right (T4L) K189R Headlamp/Cornering Lamp Control Module - Right (T4L) | 8 |
| E4HA Headlamp - Right Low Beam Inner (T4L) E4HA Headlamp - Right Low Beam Inner (T4L) | 9 |
| E4HB Headlamp - Right Low Beam Outer (T4L) E4HB Headlamp - Right Low Beam Outer (T4L) | 10 |
