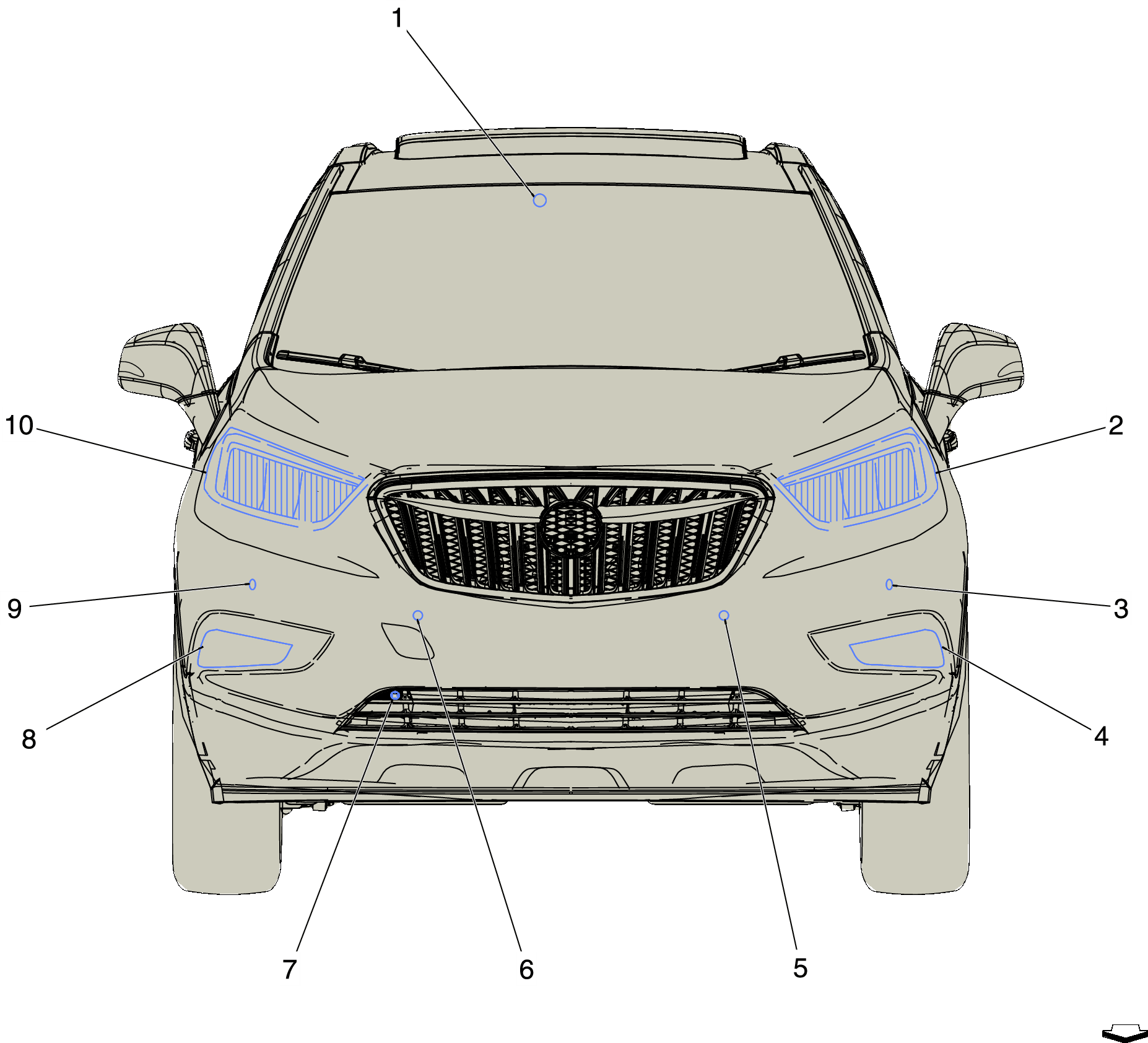

Front of Vehicle Components (Buick)
Front of Vehicle Components (Buick)
| Component Name | Callout |
|---|---|
| B174W Frontview Camera - Windshield (UFL) B174W Frontview Camera - Windshield (UFL) | 1 |
| E13LA Headlamp Assembly - Left | 2 |
| B306A Parking Assist Sensor - Front Left Outer (UD5) B306A Parking Assist Sensor - Front Left Outer | 3 |
| E29LF Fog Lamp - Left Front (T3U) E29LF Fog Lamp - Left Front | 4 |
| B306B Parking Assist Sensor - Front Left Middle (UD5) B306B Parking Assist Sensor - Front Left Middle | 5 |
| B306C Parking Assist Sensor - Front Right Middle (UD5) B306C Parking Assist Sensor - Front Right Middle | 6 |
| B9 Ambient Air Temperature Sensor B9 Ambient Air Temperature Sensor | 7 |
| E29RF Fog Lamp - Right Front (T3U) E29RF Fog Lamp - Right Front | 8 |
| B306D Parking Assist Sensor - Front Right Outer (UD5) B306D Parking Assist Sensor - Front Right Outer | 9 |
| E13RA Headlamp Assembly - Right | 10 |
