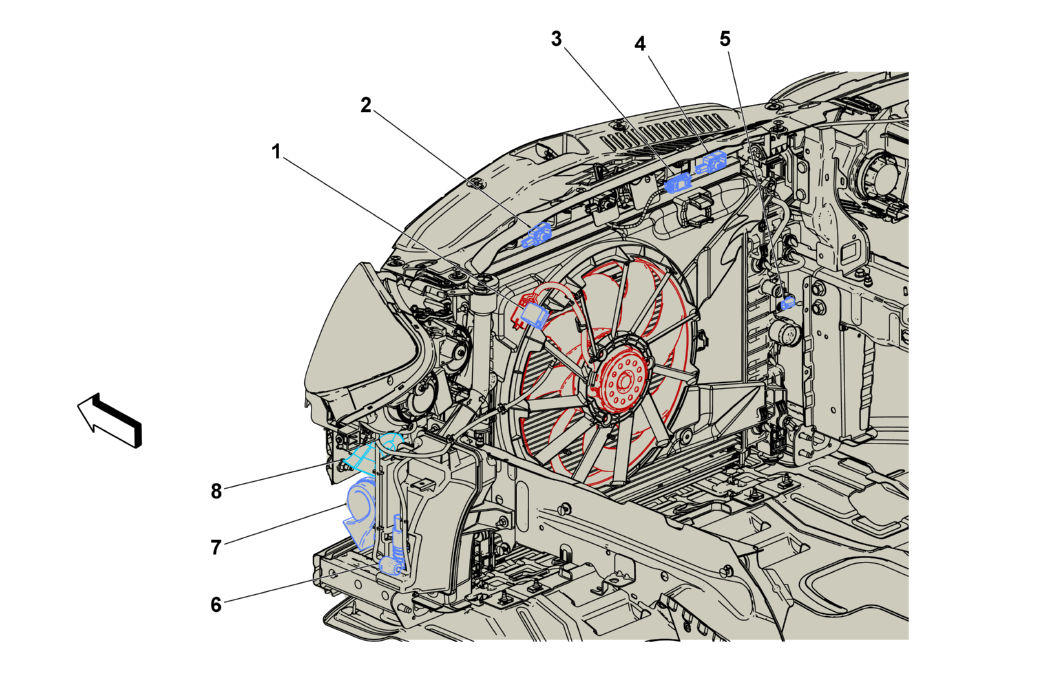

Front of Engine Compartment Components (Buick)
Front of Engine Compartment Components (Buick)
| Component Name | Callout |
|---|---|
| R10 Cooling Fan Resistor R10 Cooling Fan Resistor | 1 |
| B63L Side Impact Sensor - Left B63L Side Impact Sensor - Left | 2 |
| B55 Engine Hood Switch (BTV/UTJ) B55 Engine Hood Switch | 3 |
| B63R Side Impact Sensor - Right B63R Side Impact Sensor - Right | 4 |
| B203 Radiator Coolant Temperature Sensor (LUV) B203 Radiator Coolant Temperature Sensor | 5 |
| G24 Windshield Washer Pump G24 Windshield Washer Pump | 6 |
| P12B Horn - Low Note P12B Horn - Low Note | 7 |
| P12A Horn - High Note P12A Horn - High Note | 8 |
