Right Rear Door (Buick without panel)

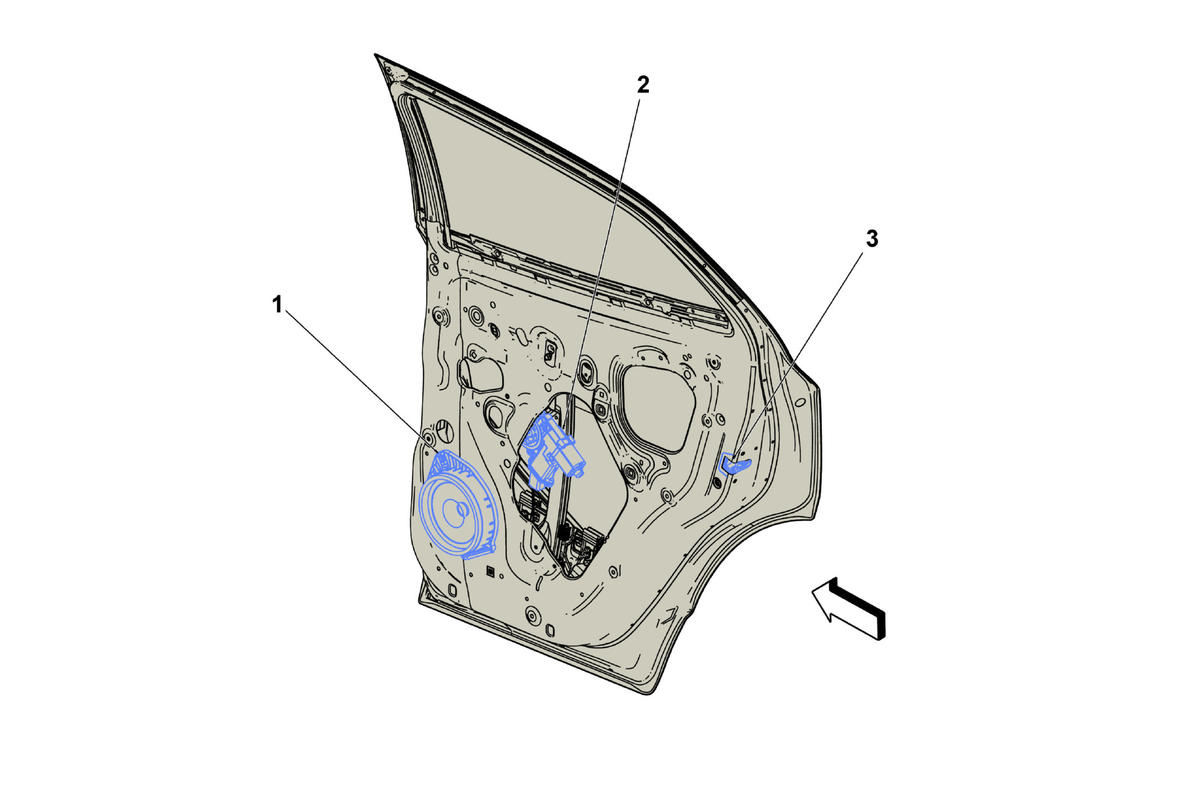

GM2839666Courtesy of GENERAL MOTORS COMPANY
Right Rear Door (Buick without panel)

Harness Name Callout
P19AM Speaker - Right Rear Door P19AM Speaker - Right Rear Door (UQA) , and P19AM Speaker - Right Rear Door (UQG) 1
M74RR Window Motor - Right Rear M74RR Window Motor - Right Rear 2
A23RR Door Latch Assembly - Right Rear A23RR Door Latch Assembly - Right Rear 3
