Left Rear Door (Buick without panel)

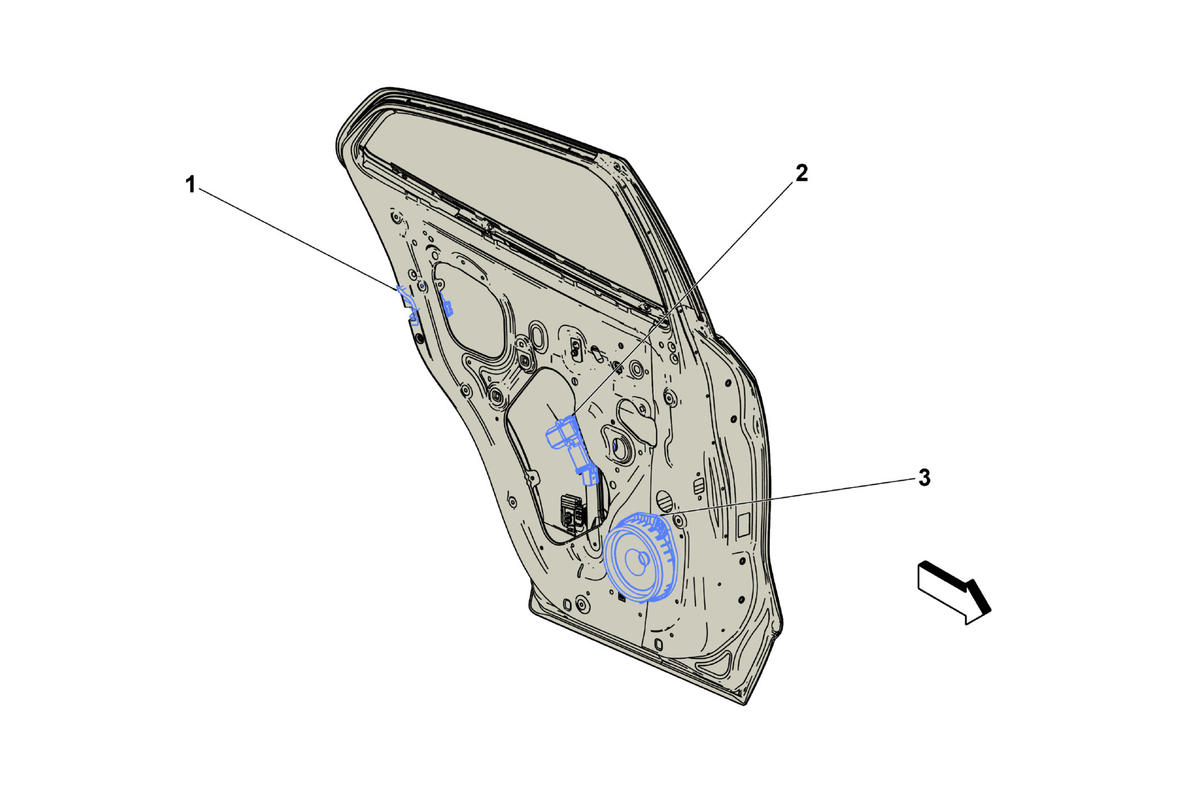

GM2839660Courtesy of GENERAL MOTORS COMPANY
Left Rear Door (Buick without panel)

Harness Name Callout
A23LR Door Latch Assembly - Left Rear A23LR Door Latch Assembly - Left Rear 1
M74LR Window Motor - Left Rear M74LR Window Motor - Left Rear 2
P19AL Speaker - Left Rear Door P19AL Speaker - Left Rear Door (UQA) , and P19AL Speaker - Left Rear Door (UQG) 3
