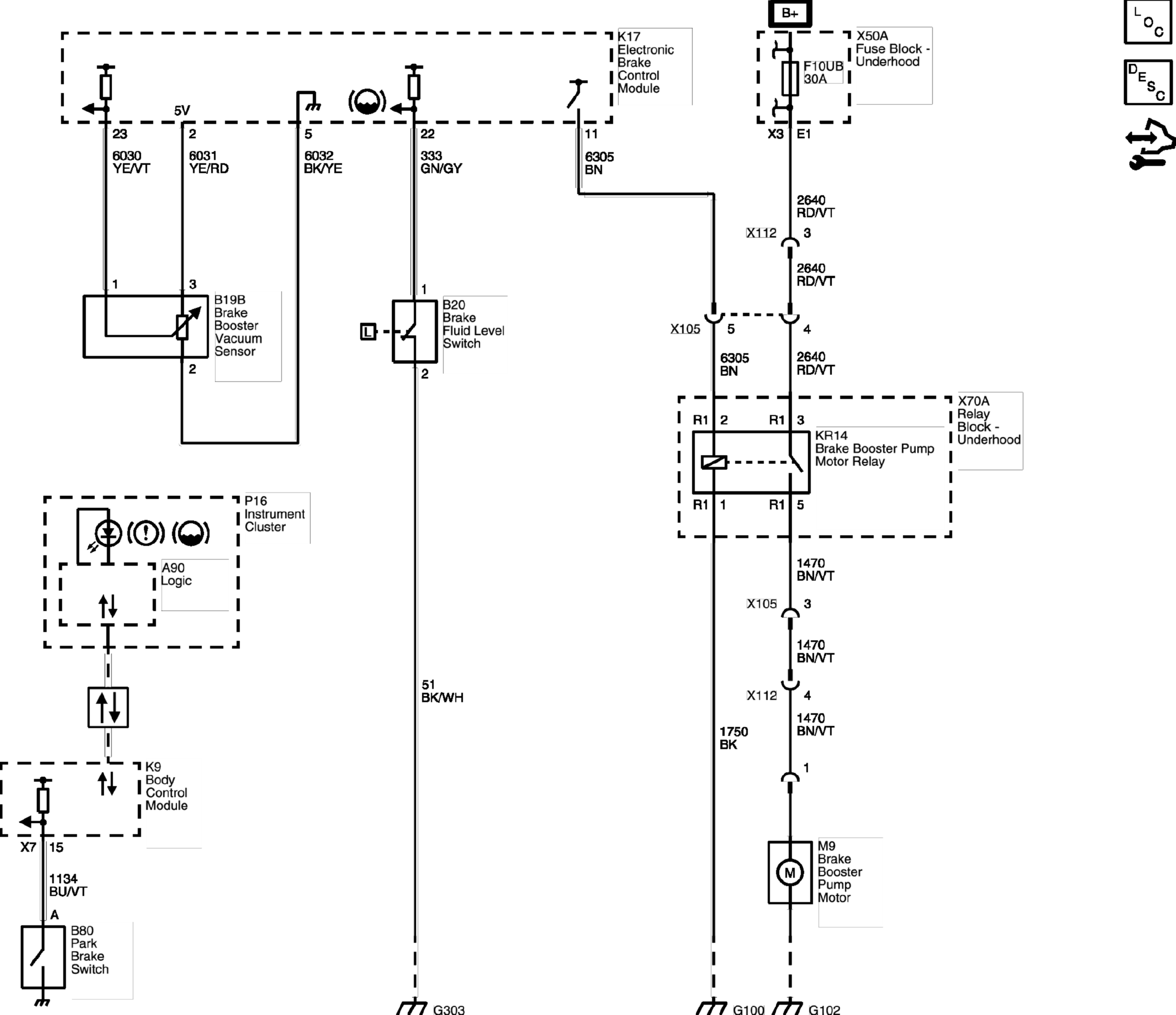

Home >> Chevrolet >> 2020 >> Trax LS, FWD >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Hydraulic Brakes >> Schematic Wiring Diagrams >> Hydraulic Brake Wiring Schematics (Chevrolet) >> Hydraulic Brakes (Chevrolet)
