Installation Procedure

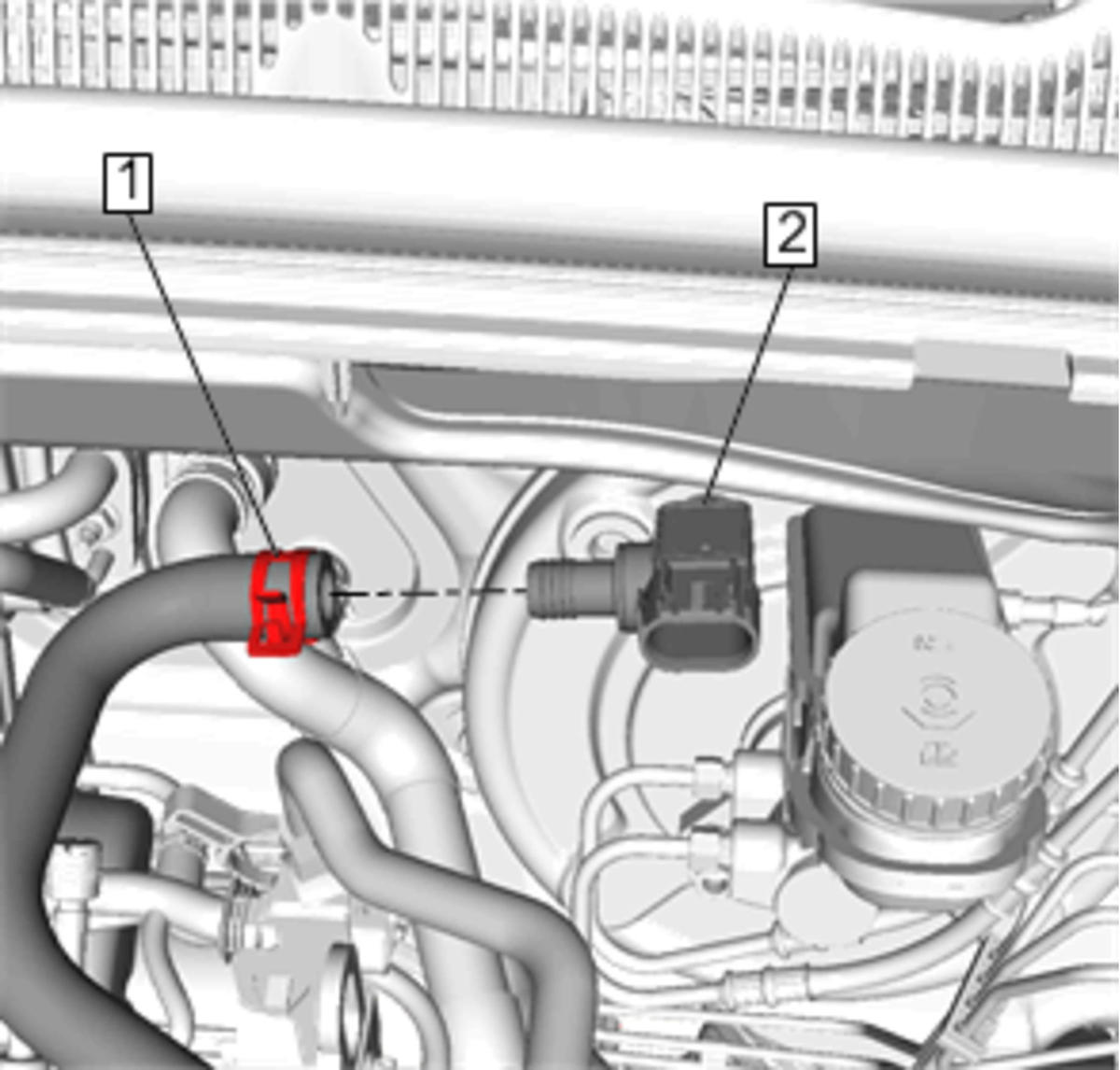

  1. GM4083484Courtesy of GENERAL MOTORS COMPANY

    Clamp (1) - Release

    2. NOTE:

    A small amount of denatured alcohol may be used as a lubricant for assembly.

  2. Power Brake Booster Vacuum Sensor (2) - Install
  3. Clamp - Secure

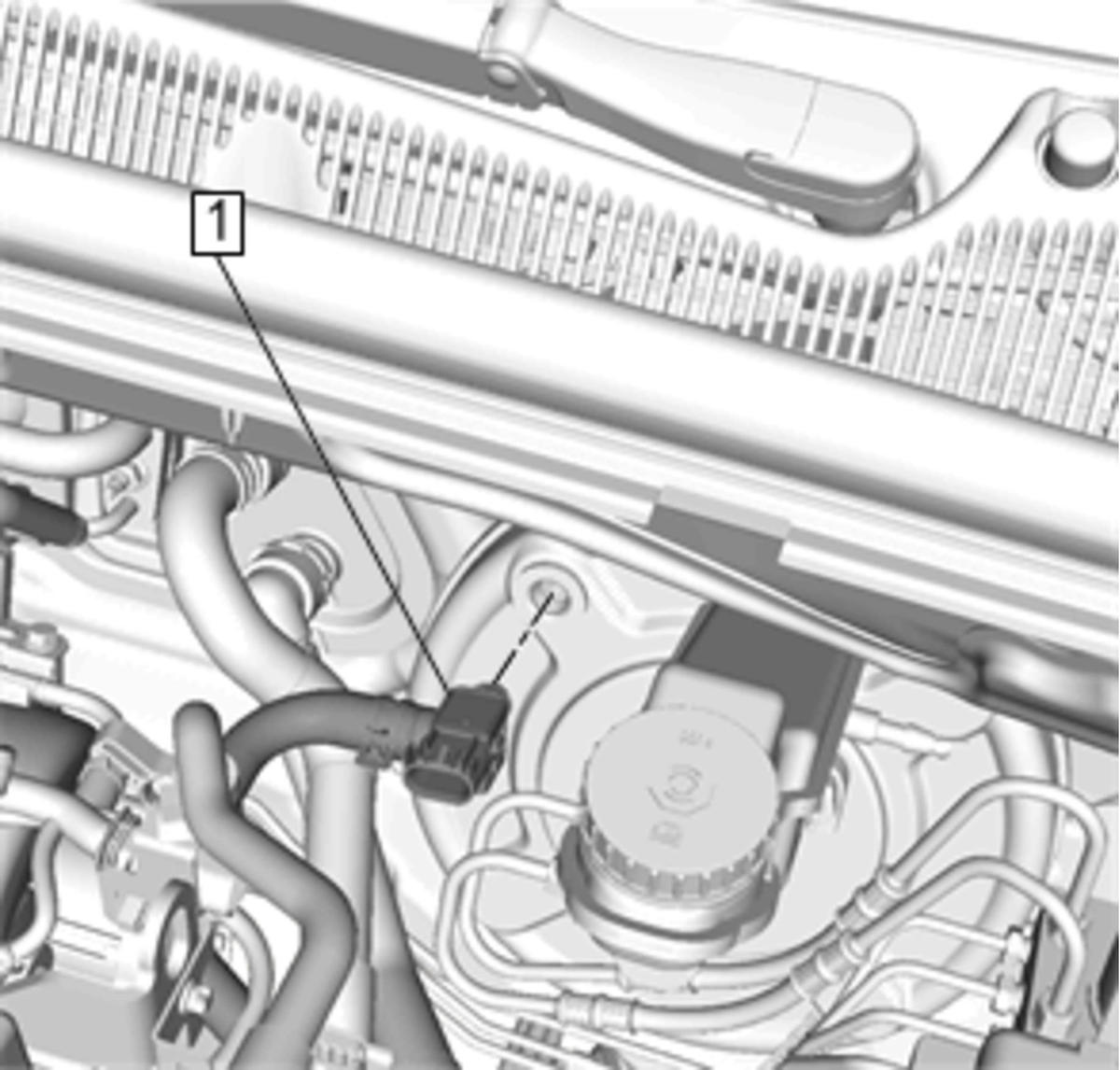

  4. GM4082703Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    A small amount of denatured alcohol may be used as a lubricant for assembly.

    Power Brake Booster Vacuum Sensor (1) - Install

  5. Connect the power brake booster vacuum sensor electrical connector.
