Installation Procedure

Install the master cylinder reservoir, if removed. Refer to Brake Master Cylinder Reservoir Replacement .
Bench bleed the master cylinder. Refer to Brake Master Cylinder Bench Bleeding .
Install the brake fluid level indicator switch, if removed. Refer to Brake Fluid Level Indicator Switch Replacement .
Courtesy of GENERAL MOTORS COMPANY

Install the master cylinder seal (1).
Install the master cylinder to the power vacuum brake booster.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Install the master cylinder nuts (1) and tighten to 19 N.m (14 lb ft).
Courtesy of GENERAL MOTORS COMPANY

Connect the master cylinder primary brake pipe fitting (1) and tighten to 18 N.m (13 lb ft).
Courtesy of GENERAL MOTORS COMPANY

Connect the master cylinder secondary brake pipe fitting (1) and tighten to 18 N.m (13 lb ft).
Courtesy of GENERAL MOTORS COMPANY

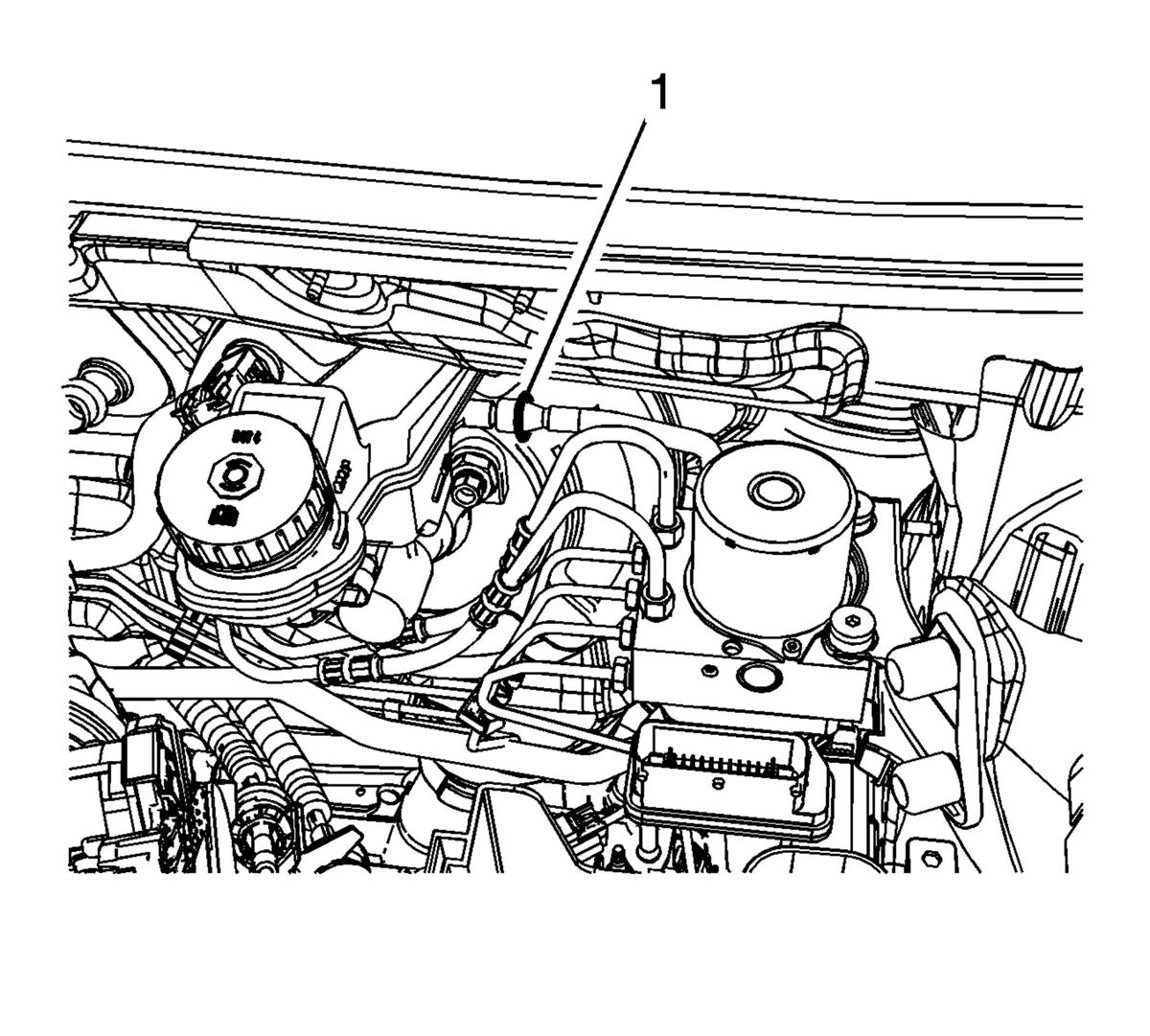

On manual transmission equipped vehicles, connect the clutch master cylinder reservoir hose (1).
Connect the brake fluid level indicator switch electrical connector.
Install the battery. Refer to Battery Replacement .
Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Manual) , and Hydraulic Brake System Bleeding (Pressure) .
