X500 Driver Door Harness to Body Harness

WARNING: This page is about a different car, the 2020 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

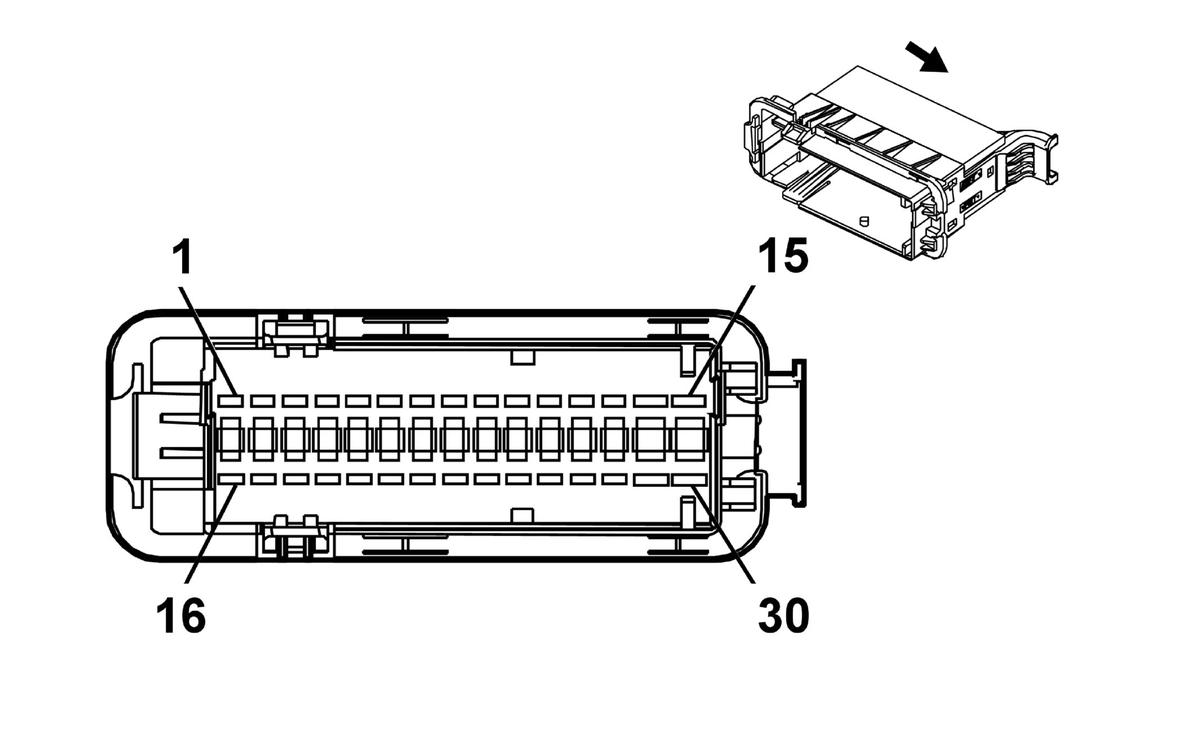

Connector Part Information Harness Type: Driver Door OEM Connector: MG653933-40A Service Connector: Service by Harness - See Part Catalog Description: 30-Way F 150, 280 GT Series (D-GY)	Connector Part Information Harness Type: Body OEM Connector: MG643934-40C Service Connector: 13395414 Description: 30-Way M 150, 280 GT Series (D-GY)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	Not Required	J-35616-14 (GN)	No Tool Required	Not Required	Not Required	Not Required	Not Required
II	Not Required	J-35616-4A (PU)	No Tool Required	Not Required	Not Required	Not Required	Not Required
III	13575500	J-35616-3 (GY)	J-38125-215A	Not Required	Not Required	Not Required	Not Required
IV	13575508	J-35616-5 (PU)	J-38125-215A	Not Required	Not Required	Not Required	Not Required

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
1	0.5	BN/YE	2267	I	-	Outside Rearview Mirror Heater Control	1	0.5	BN/YE	2267	III	-
2	0.35	VT	3560	I	-	Driver Door Keyless Entry Antenna High Signal	2	0.35	VT	3560	III	-
3	0.35	VT/GY	3561	I	-	Driver Door Keyless Entry Antenna Low Signal	3	0.35	VT/GY	3561	III	-
4	0.35	GY/YE	1760	I	-	Left Side Object Detection LED Control	4	0.5	GY/YE	1760	III	UFT
5	0.5	BK	750	I	-	Ground 7	5	0.5	BK	750	III	-
6	0.35	GN/WH	7530	I	AAG	Driver Seat Memory Control Module LIN Bus 1	6	0.5	GN/WH	7530	III	AAG
7	-	-	-	-	-	Not Occupied	7	-	-	-	-	-
8	0.75	BU	201	I	-	Left Front Speaker 1 [+] Control	8	0.75	BU	201	III	-
9	0.35	GN/WH	3570	I	-	Driver Door Handle Switch Signal	9	0.35	GN/WH	3570	III	-
10	0.35	BN/YE	780	I	-	Driver Door Lock Switch Lock Signal	10	0.35	BN/YE	780	III	-
11	0.75	GY	5911	I	-	Door Lock Actuator Lock Control 2	11	0.75	GY	5911	III	-
12	0.5	WH	3398	I	-AAG	Passenger Outside Rearview Mirror Motor Common Control	12	0.5	WH	3398	III	-AAG
13	0.5 0.5	RD/BU RD/GN	2540 2440	I I	AAG -AAG	Secondary Fused Battery Positive Voltage 25 Secondary Fused Battery Positive Voltage 24	13	0.5 0.5	RD/BU RD/GN	2540 2440	III III	AAG -AAG
14	1.5	RD/YE	6540	II	-	Secondary Fused Battery Positive Voltage 65	14	1.5	RD/YE	6540	IV	-
15 - 16	-	-	-	-	-	Not Occupied	15 - 16	-	-	-	-	-
17	0.35	BU/WH	1314	I	-	Left Front Turn Signal Lamp Control	17	0.5	BU/WH	1314	III	DLS
18	0.5	OG/GN	2132	I	-	Left Front Side Impact Sensor Signal	18	0.35	OG/GN	2132	III	-
19	0.5	BK/OG	6628	I	-	Left Front Side Impact Sensor Low Reference	19	0.35	BK/OG	6628	III	-
20	0.5	GN/YE	6134	I	-	Body Control Module LIN Bus 3	20	0.5	GN/YE	6134	III	-
21	0.5	RD/VT	6340	I	-	Secondary Fused Battery Positive Voltage 63	21	0.5	RD/VT	6340	III	-
22	-	-	-	-	-	Not Occupied	22	-	-	-	-	-
23	0.75	BN/BU	118	I	-	Left Front Speaker [-] Control 1	23	0.75	BN/BU	118	III	-
24	0.5	YE	6817	I	-	LED Backlight Dimming Control 1	24	0.5	YE	6817	III	-
25	0.35	BN/WH	781	I	-	Driver Door Lock Switch Unlock Signal	25	0.35	BN/WH	781	III	-
26	0.75	BN/YE	294	I	-	Door Lock Actuator Unlock Control	26	0.75	BN/YE	294	III	-
27	0.5	YE/VT	3397	I	-AAG	Passenger Outside Rearview Mirror Motor Up [+] Down [-] Control	27	0.5	YE/VT	3397	III	-AAG
28	0.5	GN/BK	3396	I	-AAG	Passenger Outside Rearview Mirror Motor Right [+] Left [-] Control	28	0.5	GN/BK	3396	III	-AAG
29	-	-	-	-	-	Not Occupied	29	-	-	-	-	-
30	2	BK	850	II	-	Ground 8	30	2	BK	850	IV	-
