X110 Forward Lamp Harness to Headlamp Assembly - Left Harness (T4L)

WARNING: This page is about a different car, the 2020 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY	Courtesy of GENERAL MOTORS COMPANY

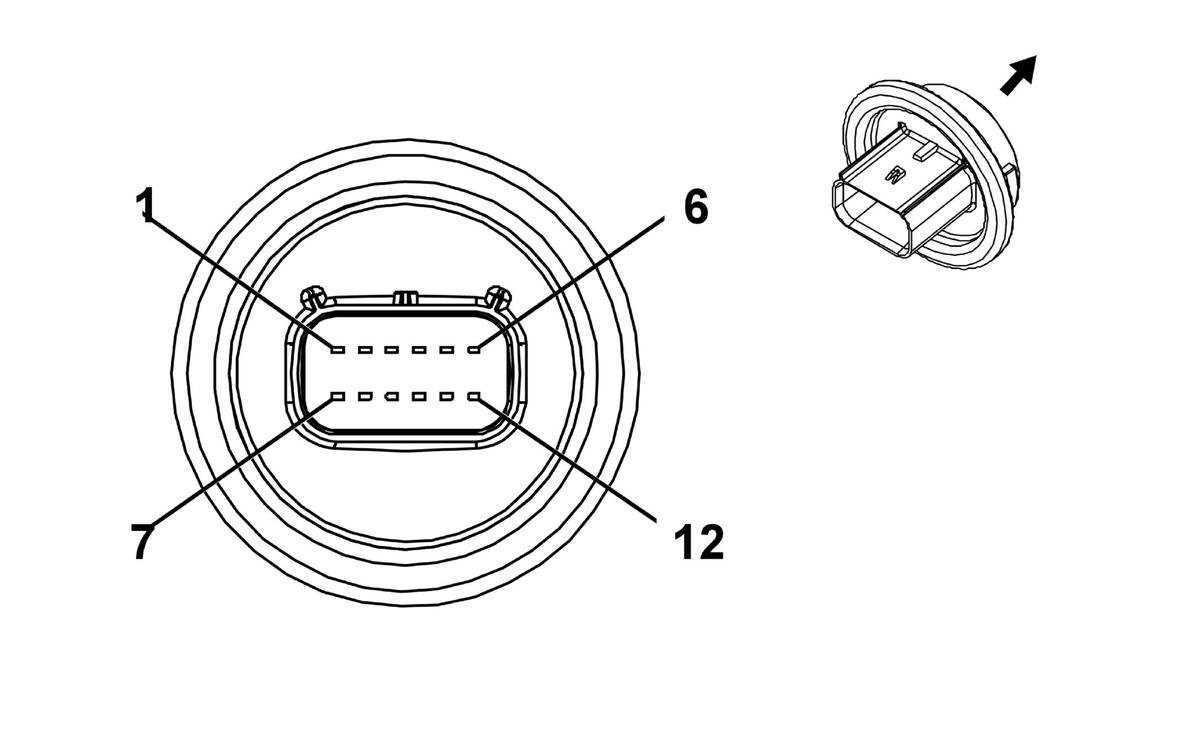

Connector Part Information Harness Type: Forward Lamp OEM Connector: 33472-1260 Service Connector: 19352788 Description: 12-Way F 150 MX Series, Sealed (D-GY)	Connector Part Information Harness Type: Headlamp Assembly - Left OEM Connector: Not Available Service Connector: Service by Harness - See Part Catalog Description: 12-Way M

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	19300432	J-35616-2A (GY)	J-38125-217	Not Required	Not Required	Not Required	Not Required
II	Not Required	J-35616-3 (GY)	No Tool Required	Not Required	Not Required	Not Required	Not Required

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
1	0.5	YE	712	I	T4L	Left Headlamp Low Beam Control	1	0.5	YE	712	II	T4L
2	0.5	WH	711	I	T4L	Left Headlamp High Beam Control	2	0.5	WH	711	II	T4L
3	-	-	-	-	-	Not Occupied	3	-	-	-	-	-
4	0.5	BK	1750	I	T4L	Ground 17	4	0.5	BK	1750	II	T4L
5	0.5	GY/BU	7538	I	T4L	Left Front DRL Control	5	0.5	GY/BU	7538	II	T4L
6	0.5	VT/GY	709	I	T4L	Left Park Lamp Control	6	0.5	VT/GY	709	II	T4L
7	0.5	BU/WH	1314	I	T4L	Left Front Turn Signal Lamp Control	7	0.5	BU/WH	1314	II	T4L
8	0.5	BK	1750	I	T4L	Ground 17	8	0.5	BK	1750	II	T4L
9	0.5	VT/BK	6568	I	T4L	Front Turn Signal Lamp Feedback Signal	9	0.5	VT/BK	6568	II	T4L
10	0.5	VT/GY	709	I	T4L	Left Park Lamp Control	10	0.5	VT/GY	709	II	T4L
11	0.5	BK	1750	I	T4L	Ground 17	11	0.5	BK	1750	II	T4L
12	-	-	-	-	-	Not Occupied	12	-	-	-	-	-
